microATX工业主板-EBC-6675

★14th/13th/12th Gen Intel® Core™ with Intel® Q670E/H610E chipset
★4 DDR5 UDIMM up to 192GB
★Supports 3 independent displays: VGA, DP++, HDMI
★Supports 4K resolution
★Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
★Rich I/O: 1 Intel 2.5GbE, 1 Intel 1GbE, 6 COM, USB 3.2 Gen 2 (Q670E 4x), USB 3.2 Gen 1 (Q670E 2x, H610E 4x), USB 2.0 (Q670E 7x, H610E 6x)

¥ 0.00

立即购买
microATX工业主板-EBC-6676

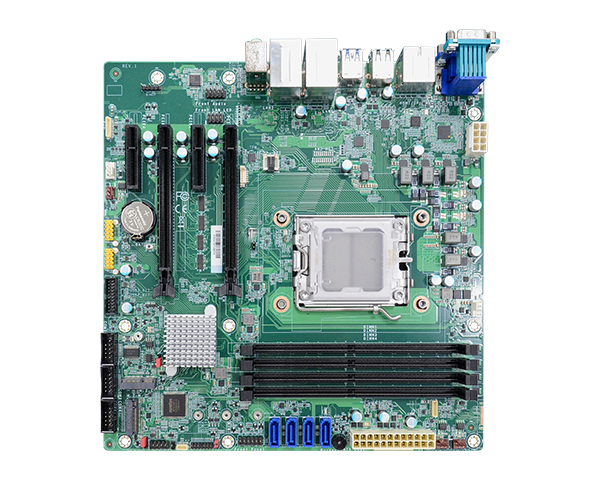

★AMD® Ryzen™ 7000 Series with AMD B650 chipset
★4 DDR5 UDIMM up to 128GB
★Triple displays: 1 VGA, 1 DP++, 1 HDMI
★Supports 4K resolution
★Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 1 M.2 M key, 4 SATA 3.0
★Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0

¥ 0.00

立即购买
microATX工业主板-EBC-6677

★14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
★4 DDR5 UDIMM up to 192GB
★Supports 4 independent displays: VGA, 2 DP++, HDMI
★Supports 4K resolution
★Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
★Rich I/O: 4 Intel 2.5GbE, 4 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 3 USB 2.0
★Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

¥ 0.00

立即购买
microATX工业主板-EBC-6678

★处理器: 4th Gen Intel® Core™
★内存: 2 DDR3 DIMM up to 16GB
★扩展介面: 1 PCIe x16, 2 PCIe x1, 1 PCI
★双显显示输出: VGA+VGA, VGA+DVI-D, VGA+LVDS, DVI-D+LVDS
★I/O: 2 LAN, 10 COM, 4 USB 3.0, 至多 8 USB 2.0, 1 Parallel
★存储: 2 SATA 3.0, 2 SATA 2.0

¥ 0.00

立即购买
microATX工业主板-EBC-6679

★14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
★4 DDR4 UDIMM up to 128GB
★Supports 4 independent displays: VGA, 2 DP++, HDMI 2.0a
★Supports 4K resolution
★Multiple expansion: 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
★Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6680

★10th Gen Intel® Core™ with Intel® W480E/Q470E chipset
★4 DDR4 UDIMM up to 128GB
★Supports triple independent displays: VGA, DP++, HDMI 1.4b
★DP++ resolution up to 4096x2160 @ 60Hz, VGA resolution up to 1920x1200 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 1 PCIe x4, 1 PCIe x1, 1 M.2 M key, 5 SATA 3.0
★Rich I/O: up to 4 Intel GbE, 2 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 4 USB 2.0, 2 COM

¥ 0.00

立即购买
microATX工业主板-EBC-6681

★10th Gen Intel® Core™ with Intel® Q470E/H420E chipset
★4 DDR4 UDIMM up to 128GB
★Three display ports: VGA, DP++, HDMI
★VGA resolution up to 1920x1200 @ 60Hz, DP++ resolution up to 4096x2160 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
★Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, M.2 M & E key, 4 SATA 3.0
★Rich I/O: 2 GbE, 10 COM, 4 SATA, Q470E: up to 16 USB, H420E: up to 10 USB
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6682

★4 DDR4 DIMM up to 128GB
★Supports triple independent displays: VGA, DP++, HDMI 1.4b
★DP++ resolution up to 4096x2160 @ 60Hz, VGA resolution up to 1920x1200 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory), 4 SATA 3.0
★Rich I/O: up to 4 Intel GbE, 4 COM, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6683

★8th/9th Gen Intel® Core™ with Intel® C246
★4 DDR4 ECC/Non-ECC DIMM up to 128GB
★Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
★DP++ resolution up to 4096x2160 @ 60Hz; DVI-D resolution up to 1920x1200 @ 60Hz; HDMI 1.4b resolution up to 4096x2160@ 24Hz
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory)
★Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0

¥ 0.00

立即购买
microATX工业主板-EBC-6685

★8th/9th Gen Intel® Core™ with Intel® Q370
★Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
★4 DDR4 DIMM up to 128GB
★Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
★DP++ resolution up to 4096x2160 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz, HDMI 1.4b resolution up to 4096x2160@ 24Hz
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 1 M.2 E key, 1 M.2 M key (support Optane Memory)

¥ 0.00

立即购买
microATX工业主板-EBC-6686

★9th/8th Gen Intel® Core™ with Intel® C246
★4 DDR4 DIMM up to 128GB
★Dual display ports: VGA + DP++ + DP++ Supports triple independent displays
★Rich I/O: Up to 4 GbE (2 default), 4 COM, 6 USB 3.2 Gen1, 6 USB 2.0
★Multiple expansion: 1 PCIe x16, 2 PCIe x4, 1 PCI, 1 Mini PCIe, 1 M.2 M key (support Optane Memory), 1 M.2 E key
★15-Year CPU Life Cycle Support Until Q3' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6687

★9th/8th Gen Intel® Core™ with Intel® Q370
★4 DDR4 DIMM up to 128GB
★Dual display ports: VGA + DP++ + DP++ Supports triple independent displays
★Rich I/O: Up to 4 GbE (2 default), 4 COM, 6 USB 3.2 Gen1, 6 USB 2.0
★Multiple expansion: 1 PCIe x16, 2 PCIe x4, 1 PCI, 1 Mini PCIe, 1 M.2 M key (support Optane Memory), 1 M.2 E key
★15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6688

★9th/8th Gen Intel® Core™ with Intel® Q370
★4 DDR4 DIMM up to 128GB
★Three display ports: DVI-D, DP++, HDMI (HDMI 2.0a opt.) Supports triple independent displays
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 mini PCIe, 1 M.2 M key (support Optane Memory)
★Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 6 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6689

★9th/8th Gen Intel® Core™ with Intel® C246
★4 DDR4 ECC/Non-ECC DIMM up to 128GB
★Three display ports: DVI-D, DP++, HDMI (HDMI 2.0a opt.) Supports triple independent displays
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 mini PCIe, 1 M.2 M key (support Optane Memory)
★Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 6 USB 2.0
★15-Year CPU Life Cycle Support Until Q3' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6690

★第九代/第八代 Intel® Core™ with Intel® H310
★2 DDR4 DIMM 至 64GB
★三个显示输出: VGA, DVI-D, DP++; 支持两个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI
★丰富 I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen 1, 6 USB 2.0
★15年CPU长期支持至Q2' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6691

★第九代/第八代 Intel® Core™ with Intel® Q370
★4 DDR4 DIMM 至 128GB
★三个显示输出: VGA, DVI-D, DP++; 支持三个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe
★丰富 I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
★15年CPU长期支持至Q2' 33 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6692

★第6/7代 Intel® Core™, Intel® C236
★4 DDR4 ECC/Non-ECC DIMM 至 64GB
★三个独立显示: VGA + DVI-D + DP++
★多重扩充: 2 PCIe x16 (1x16 or 2 x8 讯号), 2 PCIe x4, 1 M.2, 1 LPC
★丰富I/O: 4 Intel 网口, 6 串口, 6 USB 3.0, 6 USB 2.0
★15年CPU长期支持
★15年CPU长期支持至Q1' 32 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6693

★第6/7代 Intel® Core™, Intel® Q170
★4 DDR4 DIMM 至 64GB
★三个独立显示: VGA + DVI-I + DP++
★多重扩充: 2 PCIe x16 (1 x16 or 2 x8 讯号), 2 PCIe x4, 1 M.2, 1 LPC
★丰富I/O: 4 Intel 网口, 6 串口, 6 USB 3.0, 6 USB 2.0
★15年CPU长期支持
★15年CPU长期支持至Q1' 32 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6695

★第6/7代 Intel® Core™, Intel® C236
★4 DDR4 non ECC/ECC DIMM 至 64GB
★三个独立显示: VGA + DVI-I + DP++
★多重扩充: 2 PCIe x16 (1 x16 or 2 x8 讯号), 2 PCIe x4, 1 LPC
★丰富I/O: 2 Intel 网口, 6 串口, 8 USB 3.0, 6 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6696

★第6/7代 Intel® Core™, Intel® H110
★2 DDR4 DIMM 至 32GB
★四个显示输出: VGA, LVDS, DVI-I (DVI-D 讯号), DP++ 支持两个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 LPC
★丰富I/O: 2 Intel 网口, 6 串口, 4 USB 3.0, 5 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6697

★第6/7代 Intel® Core™, Intel® Q170
★4 DDR4 DIMM 至 64GB
★三个独立显示: VGA + DVI-I + DP++
★多重扩充: 2 PCIe x16 (1 x16 or 2 x8 讯号), 2 PCIe x4, 1 LPC
★丰富I/O: 2 Intel 网口, 6 串口, 8 USB 3.0, 5 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6698

★第6/7代 Intel® Core™, Intel® Q170
★4 DDR4 DIMM 至 64GB
★四个显示输出: VGA, LVDS, DVI-I, DP++ 支持三个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe
★丰富I/O: 2 Intel 网口, 6 串口, 6 USB 3.0, 6 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)

¥ 0.00

立即购买
microATX工业主板-EBC-6670

★支持LGA1151封装Gen6&7&8&9 i9/i7/i5/i3/G系列 CPU
★2 条 DDR4 DIMM 内存插槽最大支持 64GB
★三显/3SATA/2GbE/9USB/6COM/2PCI/3PCIe
★支持Win7 x32，Win7 x64，Win10 x64，Ubuntu 18.04
★采用高Tg等级的PCB板材，保障宽温稳定
★工业级IO防护器件，阻断ESD和浪涌，保障系统稳定可靠
★优化的接口和扩展布局有效规避干涉，方便行业用户扩展

¥ 0.00

立即购买
microATX工业主板-EBC-6671

★支持Intel LGA1200封装的Gen10&11 i9/i7/i5/i3/G CPU
标配2条高配4条DDR4 U-DIMM插槽最大支持128GB
标配4个高配8个USB3.2 Gen1接口支持工业相机
四个显示接口，标配双显，高配三显
采用高Tg宽温PCB材质保障宽温稳定
工业级端口防护阻断静电和浪涌，有效保护系统核心稳定可靠
优化接口和扩展槽布局有效规避业务卡相互干涉,方便用户扩展需求

¥ 0.00

立即购买
microATX工业主板-EBC-6672

★支持LGA1700封装Gen12&13&14 i9/i7/i5/i3/G CPU,TDP 65W
★2条DDR4 UDIMM插槽最大支持64GB
★PCIe5.0 x16,2条PCIe3.0 x2，1条PCI插槽
★4个USB3.0接口可连接工业相机
★四显示接口VGA+DP+HDMI+EDP，支持三显模式
★采用高Tg等级的PCB板材，保障宽温稳定
★工业级IO防护器件，阻断ESD和浪涌，保障系统稳定可靠
★优化的接口和扩展布局有效规避干涉，方便行业用户扩展

¥ 0.00

立即购买
