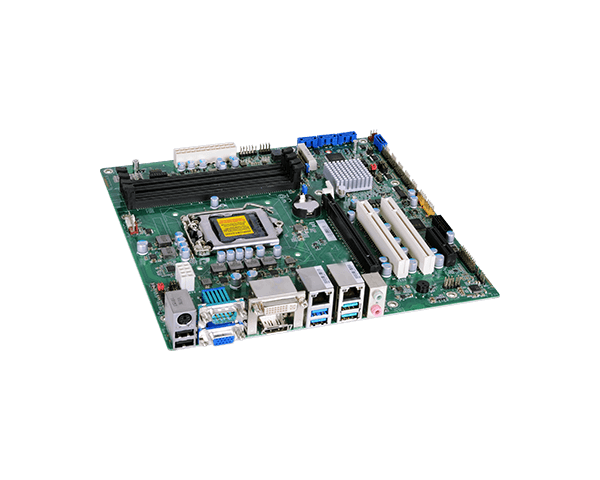

microATX工业主板-EBC-6691
★4 DDR4 DIMM 至 128GB
★三个显示输出: VGA, DVI-D, DP++; 支持三个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe
★丰富 I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
★15年CPU长期支持至Q2' 33 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W芯片组
Intel® Q370 Chipset
内存
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHzBIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz三重显示
VGA + DVI-D + DP++
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default)音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® I219LM with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)背板输入/输出

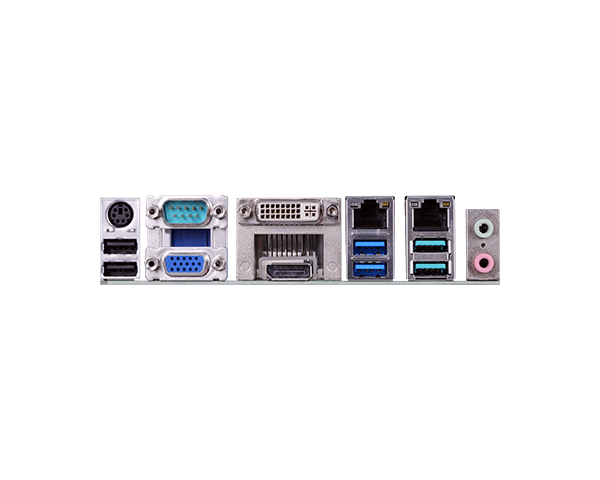

以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 USB 3.1 Gen 2
2 USB 3.1 Gen 1
2 USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232USB
2 x USB 3.1 Gen 1 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch)音效
1 x S/PDIF
1 x Front Audio HeaderSATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 sec/min
安全性
信赖平台模块
Infi neon TPM2.0/1.2 (available upon request)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i7-8700K: 3.3V @ 0.29A (0.957Watt); 5V @ 0.53A (2.65Watt); 12V @ 1.08A (12.96Watt)
Max.: i7-8700K:3.3V @ 0.49A (1.617Watt); 5V @ 0.53A (2.65Watt); 12V @ 13.39A (160.68Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise
Linux环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
535,676 hrs @ 25°C; 352,865 hrs @ 40°C ; 303,603 hrs @ 45°C ; 189,856 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
高度
PCB: 1.6mm
Top Side: 31.47mm, Bottom Side: 4.4mm尺寸 (宽 x 高 x 深)
microATX form factor
244mm (9.6") x 244mm (9.6")安规认证
认证
UL, CE, FCC, RoHS, RoHS
-
-
