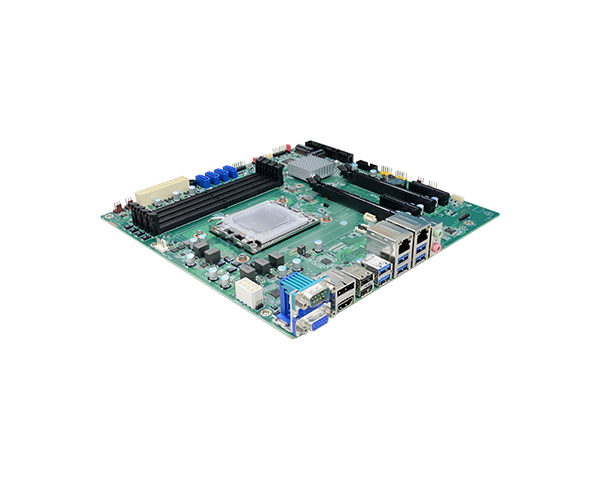

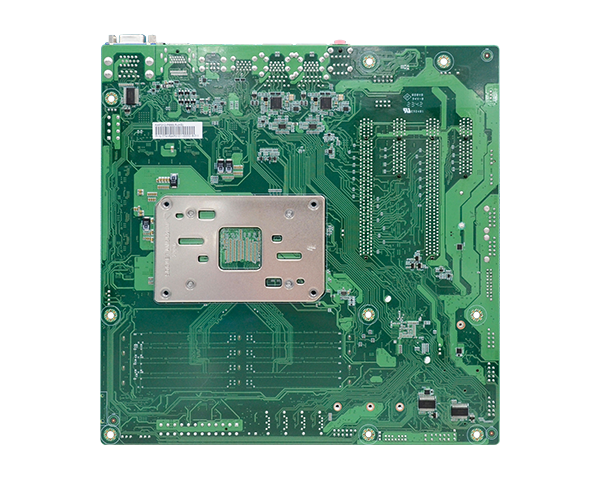

microATX工业主板-EBC-6676
★4 DDR5 UDIMM up to 128GB
★Triple displays: 1 VGA, 1 DP++, 1 HDMI
★Supports 4K resolution
★Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 1 M.2 M key, 4 SATA 3.0
★Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0
-
系统
处理器
AMD Ryzen 9 PRO 7945
AMD Ryzen 7 PRO 7745
AMD Ryzen 5 PRO 7645芯片组
AMD B650
内存
Four 288-pin UDIMM up to 128GB (ECC/Non-ECC)
Dual Channel DDR5 5200 MHzBIOS
AMI SPI 256Mbit
显示
控制器
Navi2 Graphics
特性
1WGP @2.2GHz max
显示器
1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz三重显示
1 VGA + 1 DP++ + 1 HDMI 2.0
扩充
界面
2 x PCIe x16 (Gen 4, x16 or x8+x8)
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key
1 x M.2 2242/2260/2280 M key音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I226V
背板输入/输出
以太网络
2 x 2.5GbE (RJ-45)
串口
1 x RS232
USB
6 x USB 3.2 Gen 2
2 x USB 2.0显示
1 x VGA
1 x DP++
1 x HDMI音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)内部输入/输出
串行端口
1 x RS-232/422/485
2 x RS232USB
2 x USB 3.2 Gen1
4 x USB 2.0 (colay vertical Type A)音效
1 x Front Audio Header
1 x S/PDIFSATA
4 x SATA 3.0
RAID 0/1/5/10DIO
1 x 8-bit DIO
PS/2
1 x PS/2
SMBus/ I2C
1 x SMBus/ I2C
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Nuvoton TPM 2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 11 Enterprise
Windows 10Linux
Ubuntu 22.04
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RHMTBF
TBD
机械结构
尺寸
microATX Form Factor
244mm (9.6") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD安规认证
认证
CE, FCC Class B, RoHS
-
-
