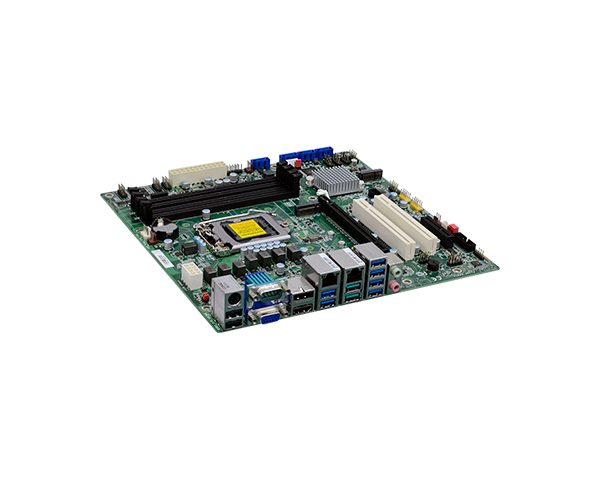

microATX工业主板-EBC-6681
★4 DDR4 UDIMM up to 128GB
★Three display ports: VGA, DP++, HDMI
★VGA resolution up to 1920x1200 @ 60Hz, DP++ resolution up to 4096x2160 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
★Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, M.2 M & E key, 4 SATA 3.0
★Rich I/O: 2 GbE, 10 COM, 4 SATA, Q470E: up to 16 USB, H420E: up to 10 USB
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W芯片组
Intel® Q470E/H420E Chipset
内存
CMS330-Q470E
Four 288-pin Non-ECC UDIMM up to 128GB
CMS330-H420E
Two 288-pin Non-ECC UDIMM up to 64GB
Dual Channel DDR4 2400/2666/2933MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DP++
1 x HDMI 1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz多重显示
CMS330-Q470E
VGA + DP++ + HDMI
CMS330-H420E
VGA + DP++ / VGA + HDMI / DP++ + HDMI
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
CMS330-Q470E
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)
1 x M.2 2230 E key (USB 2.0/PCIe)
CMS330-H420E
N/A
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)

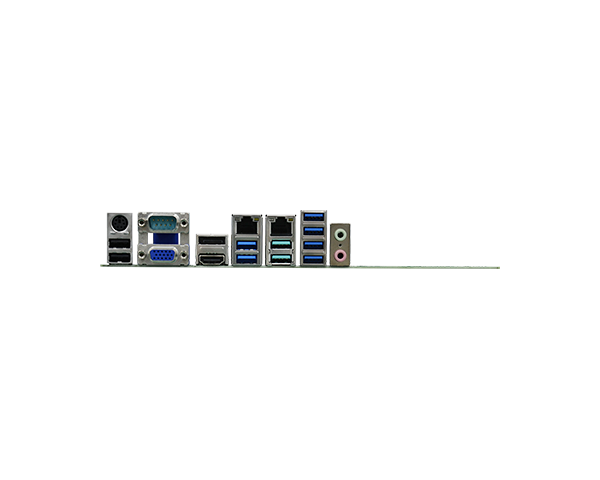

1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (Q470E: Core i9/ i7/i5 supports iAMT, H420E: N/A)背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.2 (Q470E: Gen2; H420E: Gen1)
2 x USB 3.2 Gen1 (Q470E: Up to 6 x USB 3.2 Gen1, MOQ required)
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DP++
1 x HDMI音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)内部输入/输出
串行端口
9 x RS-232 (2.54mm pitch)
USB
2 x USB 3.2 Gen 1
CMS330-Q470E
4 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
CMS330-H420E
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
音效
1 x Front Audio Header
1 x S/PDIFSATA
4 x SATA 3.0 (up to 6Gb/s, SATA 3) (Q470E: RAID 0/1/5/10, H420E: N/A)
DIO
1 x 16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0 (opt., MOQ required)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i9-10900K: 3.3V @ 0.36A (1.19W); 5V @ 1.02A (5.1W); 12V @ 3.8A (45.6W)
Max.: i9-10900K:3.3V @ 0.38A (1.25W); 5V @ 1.82A (9.1W); 12V @ 15.64A (187.68W)RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux Ubuntu 20.04
环境指标
温度
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RHMTBF
CMS330-Q470E
504,615 hrs @ 25°C; 283,232 hrs @ 45°C ; 176,865 hrs @ 60°C ; 128,658 hrs @ 70°C
CMS330-H420E
534,071 hrs @ 25°C; 303,942 hrs @ 45°C ; 191,219 hrs @ 60°C ; 139,612 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
机械结构
尺寸
micro ATX Form Factor
244mm (9.6") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 33mm; Bottom Side: 3mm安规认证
认证
CE, FCC Class B, UKCA
-
-
