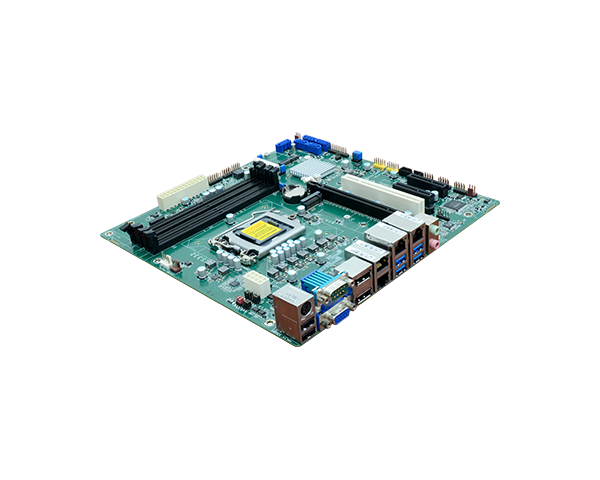

microATX工业主板-EBC-6687
★4 DDR4 DIMM up to 128GB
★Dual display ports: VGA + DP++ + DP++ Supports triple independent displays
★Rich I/O: Up to 4 GbE (2 default), 4 COM, 6 USB 3.2 Gen1, 6 USB 2.0
★Multiple expansion: 1 PCIe x16, 2 PCIe x4, 1 PCI, 1 Mini PCIe, 1 M.2 M key (support Optane Memory), 1 M.2 E key
★15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W芯片组
Intel® Q370 Chipset
内存
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz (non ECC support)BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2106 @ 60Hz三重显示
VGA + DP++ + DP++
扩充
界面
1 x PCIe x16 (Gen 3)
2 x PCIe x4 (Gen 3)
1 x PCI
1 x MINI PCIE SLOT (Full Size)
1 x M.2 2242/2280 M key (PCIe Gen3 x 4 NVMe/Intel Optane Memory Support)
1 x M.2 2230 E key (PCIe x1/USB2.0)音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
1 x Intel® i219LM PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)
1 x Intel® i210AT PCIe (10/100/1000Mbps)
2 x Intel® i210AT PCIe (10/100/1000Mbps) (opt. by request, MOQ required)背板输入/输出
以太网络
2 x GbE (RJ-45), 4 x GbE (RJ-45) (opt. by request, MOQ required)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.2 Gen 1
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
2 x DP++音源
1 x Line-out
1 x Line-in (colay, opt. by request, MOQ required)
1 x Mic-in内部输入/输出
串行端口
3 x RS-232
USB
2 x USB 3.2 Gen 1
4 x USB 2.0 (2.54mm pitch)音效
1 x S/PDIF, 1 x Front Audio Header
SATA
4 x SATA 3.0 (up to 6Gb/s) (opt. x5 SATA) RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC (support LPC EXT-RS-232/485 module)
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 sec/min
安全性
信赖平台模块
TPM 2.0
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i7-8700K: 3.3V @ 0.44A (1.452Watt); 5V @ 0.62A (3.1Watt); 12V @ 0.49A (5.88Watt)
Max.: i7-8700K:3.3V @ 0.51A (1.683Watt); 5V @ 1.4A (7.0Watt); 12V @ 10.44A (128.25Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
Linux环境指标
温度
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
596,170 hrs @ 25°C; 341,995 hrs @ 45°C ; 213,835 hrs @ 60°C ; 182,033 hrs @ 65°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
microATX form factor
244mm (9.6") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm -
-
