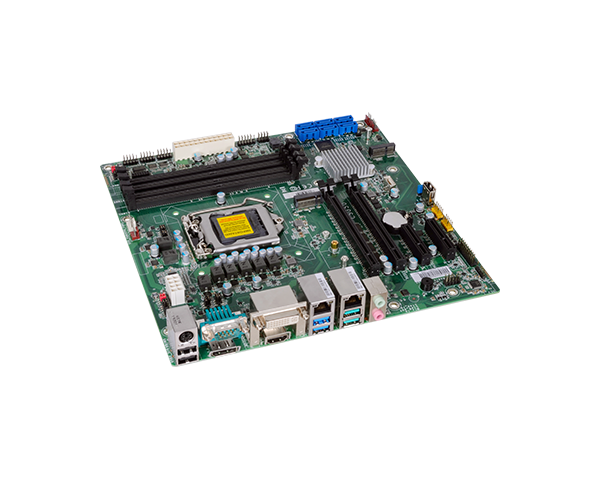

microATX工业主板-EBC-6685
★Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
★4 DDR4 DIMM up to 128GB
★Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
★DP++ resolution up to 4096x2160 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz, HDMI 1.4b resolution up to 4096x2160@ 24Hz
★Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 1 M.2 E key, 1 M.2 M key (support Optane Memory)
-
系统
处理器
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W:
Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W芯片组
Intel® Q370 Chipset
内存
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz (non ECC support)BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x DP++, DP++: resolution up to 4096x2106 @ 60Hz
1 x HDMI 1.4b: resolution up to 4096x2160@ 24Hz
1 x DVI-I (DVI-D signal), DVI-D: resolution up to 1920x1200 @ 60Hz三重显示
DVI-D + DP++ + HDMI 1.4b
扩充
界面
2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 3)
1 x M.2 2230 E key (PCIe x1/USB2.0/intel CNVi support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (only Core i7/i5 supports iAMT)

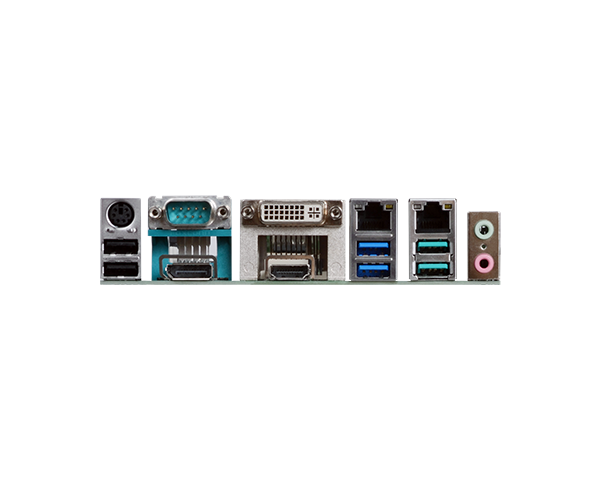

1 x Intel® i211AT PCIe (10/100/1000Mbps)背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)USB
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
2 x USB 2.0显示
1 x DVI-I (DVI-D signal)
1 x DP++
1 x HDMI 1.4b音源
1 x Line-out
1 x Line-in (colay, opt. by request, MOQ required)
1 x Mic-in内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
2 x RS-232USB
2 x USB 3.1 Gen 2
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt. by request, MOQ required)音效
1 x S/PDIF, 1 x Front Audio Header
SATA
6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
Output & Interval System Reset, Programmable via Software from 1 to 255 sec/min
安全性
信赖平台模块
Infineon TPM 2.0 (Available Upon Request, MOQ required)
电源
类型
ATX
端口
8-pin ATX 12V power
24-pin ATX power耗能
Typical: i7-8700K: 3.3V @ 0.16A (0.53Watt); 5V @ 0.44A (2.2Watt); 12V @ 0.55A (6.6Watt)
Max.: i7-8700K:3.3V @ 0.35A (1.16Watt); 5V @ 1.34A (6.7Watt); 12V @ 12.54A (150.48Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Ubuntu 18.04
环境指标
温度
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery湿度
Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF
548,936 hrs @ 25°C; 308,161 hrs @ 45°C ; 191,020 hrs @ 60°C ; 162,350 hrs @ 65°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled机械结构
尺寸
microATX form factor
244mm (9.6") x 244mm (9.6")高度
PCB: 1.6mm
Top Side: 31.51mm
Bottom Side: 4.4mm -
-
