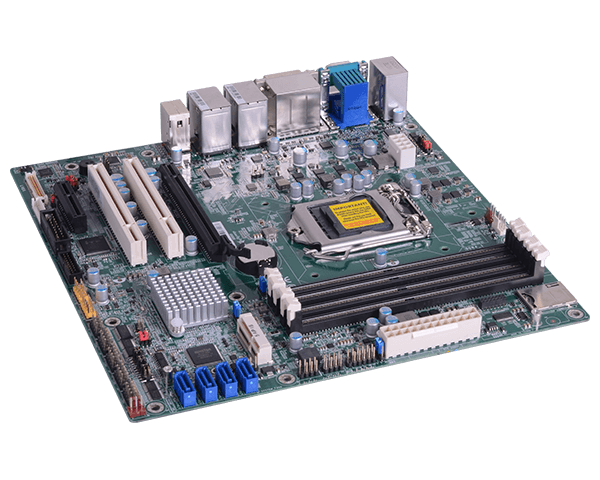

microATX工业主板-EBC-6698

★第6/7代 Intel® Core™, Intel® Q170
★4 DDR4 DIMM 至 64GB
★四个显示输出: VGA, LVDS, DVI-I, DP++ 支持三个独立显示
★多重扩充: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe
★丰富I/O: 2 Intel 网口, 6 串口, 6 USB 3.0, 6 USB 2.0
★15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)
ꄴ上一个： microATX工业主板-EBC-6670
ꄲ下一个： microATX工业主板-EBC-6697

  • 系统



    处理器

    6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W

    芯片组

    Intel® Q170 Chipset

    内存

    Four 288-pin DIMM up to 64GB
    Dual Channel DDR4 1866/2133MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x VGA
    1 x LVDS
    1 x DVI-I (DVI-D signal)
    1 x DP++
    VGA: resolution up to 1920x1200 @ 60Hz
    LVDS: dual channel, resolution up to 1920x1200 @ 60Hz
    DVI-I: resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2160 @ 60Hz

    三重显示

    VGA + DVI-I (DVI-D signal) + DP++
    VGA + LVDS + DP++ VGA + LVDS + DVI-I (DVI-D signal)
    LVDS + DVI-I (DVI-D signal) + DP++

    扩充

    界面

    1 x PCIe x16 (Gen 3)
    1 x PCIe x4 (Gen 3)
    2 x PCI
    1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default)
    1 x SIM (opt., MOQ required)

    音讯

    音讯编译码器

    Realtek ALC888S-VD2-GR

    以太网路

    控制器

    1 x Intel® I210AT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    4 x USB 3.0
    2 x USB 2.0

    PS/2

    1 x PS/2 (mini-DIN-6)

    显示

    1 x VGA
    1 x DVI-I (DVI-D signal)
    1 x DP++

    音源

    1 x Line-out
    1 x Mic-in
    1 x Line-in (opt., MOQ required)

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
    4 x RS-232 (2.54mm pitch)

    USB

    2 x USB 3.0 (2.00mm pitch)
    4 x USB 2.0 (2.54mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x LCD/Inverter Power

    音效

    1 x Audio (Line-out/Mic-in) (opt., MOQ required)
    1 x S/PDIF

    SATA

    4 x SATA 3.0 (up to 6Gb/s)
    RAID 0/1/5/10

    DIO

    1 x 8-bit DIO

    LPC

    1 x LPC (supports LPC EXT-RS232/RS485 module)

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    opt., MOQ required

    电源

    类型

    ATX

    端口

    8-pin ATX 12V power
    24-pin ATX power

    耗能

    Idle: i5-6500 65W: 12V @ 1.5055A (18.0660W), 5V @ 0.7370A (3.6850W), 3.3V @ 0.7249 (2.3921W)
    Max: i5-6500 65W: 12V @ 7.4060A (88.8720W), 5V @ 0.7698A (3.8490W), 3.3V @ 0.8004A (2.6413W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Windows 7 32/64-bit
    Window 8.1 64-bit
    Windows 10 64-bit
    Linux
    Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.

    环境指标

    温度

    Operating: 0 to 60°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    363,066 hrs @ 25°C; 204,404 hrs @ 45°C; 127,841 hrs @ 60°C
    Calculation Model: Telcordia Issue 2, Method Case 3
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    microATX form factor
    244mm (9.6") x 244mm (9.6")

    高度

    PCB: 1.6mm
    Top Side: 38.5mm
    Bottom Side: 4.4mm

    安规认证

    认证

    CE, FCC Class B, RoHS, UL
