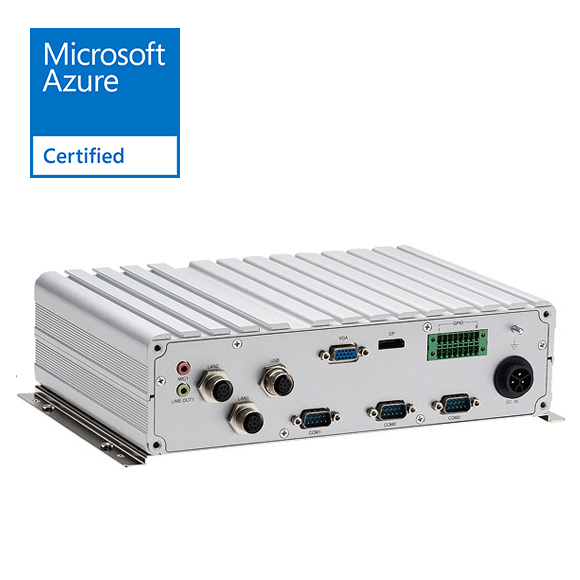

车载工业计算机-OBPC-6212

★Intel® Atom™ 处理器，四核E3845, 1.91GHz
★3个 SIM 卡 + 双 WWAN 模块支持
★内置 u-blox-M8 GPS
★唤醒 RTC/SMS 通过 WWAN模块
★EN50155 认证
★3 x mini-PCIe 插槽扩展
★4 x DI + 4 x DO w/隔离
★2 x RS232 + 1 x RS422/485 w/ 隔离
★语音通讯通过WWAN 模块
★3KVDC 电源隔离保护 (VTC6210-RF Only)
ꄴ上一个： 车载工业计算机-OBPC-5510
ꄲ下一个： 车载工业计算机-OBPC-6233

  • 产品规格

    CPU Intel® Atom™ processor quad core E3845, 1.91GHz
    内存 1 x 204-pin DDR3L SO-DIMM socket support 1333MHz up to 8GB. Default 4GB
    存储 1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)1 x CFast (externally accessible)
    扩展 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0) for LTE module with 1 x internal, 1 x external SIM1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)
    功能 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou)Built-in G-sensor
    I/O 前置接口 4 x LED for power, storage, WWAN, WLAN2 x Externally accessible SIM card socket (selectable)1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray1 x Externally accessible CFast card socket with cover1 x Reset button1 x Type A USB 3.0 compliant host, supporting system boot up4 x Antenna hole for WWAN/WLAN/BT1 x Antenna hole for GPS

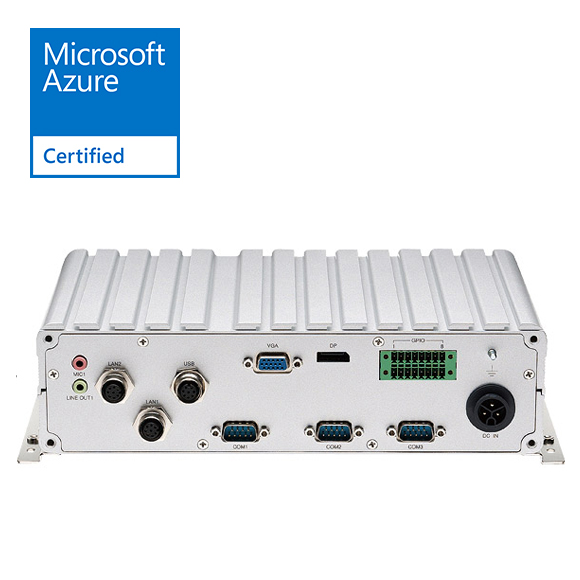

    I/O 后置接口 1 x Circle Type DC Input 9~60VDC with ignition and typical 19W power consumption
    - 24VDC (16.8~31.2V), non-isolation
    - 36VDC (25.2~46.8V), non-isolation
    - 110VDC (77~143V), w/ 3KVDC isolation1 x M12 with two USB 2.0 compliant host, supporting system boot up2 x M12 10/100/1000 Ethernet1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz1 x DP port, resolution up to 2560 x 1600 @60H2 x DB-9 RS-232 (isolation)1 x DB-9 RS-422/485 (isolation)1 x 16-pin terminal block
    - 1 x CAN Bus 2.0B (on board)
    - 4 x DI, 4 x DO with isolation
    Input Voltage (internal type): 5VDC TTL (default)
    Input Voltage (source type): 3~12VDC (Programmable Digital output or optional isolation)
    Digital output (sink type): 5VDC TTL (default), max current: 20mA
    Digital output (source type): 3~19VDC, max current: 150mA
    电源管理 Power input 24/36VDC w/o isolation, 110VDC w/ isolationIgnition On/Off controlProgrammable On/Off delay timerSystem wake up event
    - Ignition switch
    - RTC timer ALARM interrupt
    - Cellular MODEM wakeup signalSystem wake up condition
    - Wake up event is triggered, and DC input voltage is greater than UVP threshold
    - Timer delay is only applicable for ignition onSystem power down condition
    - Soft off, or ignition offTimer delay is only applicable for ignition off
    操作系统 Windows 8, WES8Window 7, WES7Linux kernel 3.X
    尺寸 260mm (W) x 176mm (D) x 70mm (H) (10.24" x 6.93" x 2.75")Weight: 2.5kg
    环境 Operating temperatures:
    -40°C to 70°C (w/ industrial SSD) with air flow
    -20°C to 50°C (w/ commercial HDD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Shock (SSD/HDD):
    Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
    Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    标准/认证 CEFCC Class AEN 50155: 2017
    - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class
    - Supply change over class C1, C2
    - EMC EN 50121-3-2: 2016
    - Environment EN 60068-2-1, EN 60068-2-2
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)EN 45545-2:2013+A1:2015 (PCB)
