车载工业计算机-OBPC-6233

★Intel Atom® processor quad core x7433RE, 1.5GHz
★Eight SIM cards + four WWAN modules support
★Built-in u-blox-M9N GPS
★Built-in CAN FD
★1 x External storage (compatible with 15mm disk)
★EN 50155, class OT4 conformity
★3 x M.2 + 2 x mPCIe socket expansion
★Wide voltage input 24 VDC
★1 x DB9 for 1 x Mic-in, 1 x Line-out, 1 x Line-In
★Three video outputs, VGA, HDMI, and DP
ꄴ上一个： 车载工业计算机-OBPC-6212
ꄲ下一个： 车载工业计算机-OBPC-6226

  • 产品规格

    CPU Intel Atom® processor x7433RE, 1.5GHz, 9W, 4-core
    Memory 1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB, default 8GB
    Video Output 1 x VGA up to 1920 x 1200 @60Hz1 x HDMI 2.0 up to 4096 x 2160 @60Hz1 x DP up to 4096 x 2160 @60Hz
    Storage 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)1 x mSATA (occupy one mPCIe slot)
    Expansion 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM1 x Full size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0) for WiFi, BOM option M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM
    GNSS and Onboard Sensor 1 x Default u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/ BeidouG Sensor (3-axis, 10-bit resolution)
    LAN and Power over Ethernet 2-Port LAN, 10/100/1000/2500 Mbps I226-IT Ethernet Controller
    Security TPM 2.0: Infineon SLB9670VQ2.0

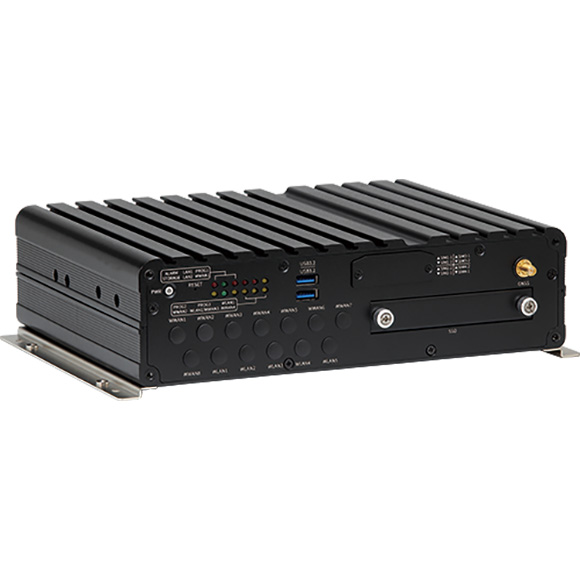

    I/O Interface-Front 12 x LED indicators (including 2 x programmable LED)8 x Externally accessible SIM card sockets with cover1 x 2.5" removable SSD tray (removable, 15mm)1 x Reset button1 x Power button2 x USB 3.2 (Gen 2) type A14 x SMA antenna

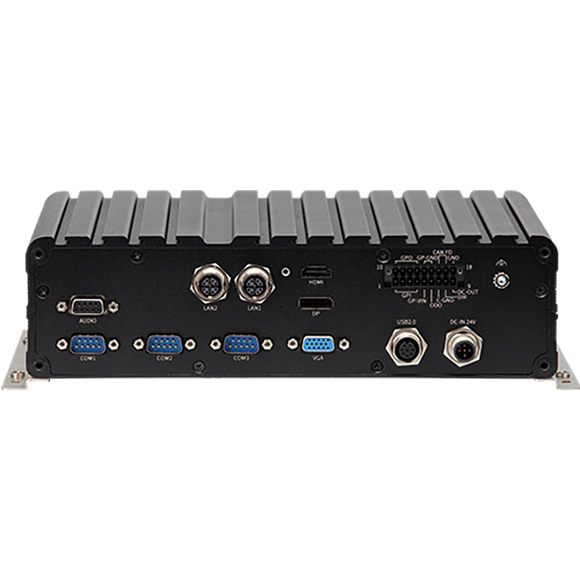

    I/O Interface-Rear 1 x Circle type DC input with ignition
    - 24 VDC (9~36 VDC), non-isolation1 x M12 with two USB 2.02 x M12 X-coded LAN port, 10/100/1000/2500 Mbps1 x DB9 (AUDIO), female for 1 x Mic-in, 1 x Line-out, 1 x Line-In1 x VGA, 1 x HDMI 2.0, 1 x DP1 x DB9 (COM) full RS232 (isolation)2 x DB9 for RS232/RS422/RS485 Full (all w/ isolation)1 x 18-pin terminal block
    - 1 x CAN FD (isolated)
    - 4 x DI with isolation
    - 4 x DO with isolation
    - 1 x GNSS Speed/Direction
    - Vin, GND for GPIO
    Power Management & Software Support Power input 24 VDC w/o isolationSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10, 11 (64-bit)Linux 4.x
    Dimensions 260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75")
    Weight 2.8kg
    Environment Operating temperatures
    - EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ industrial SSD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration
    - IEC 60068-2-64, 2G for SSD
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24Shock
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
    Standards/Certifications CEFCC Class AEN 50155: 2017
    - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1, C2
    - EMC EN 50121-3-2: 2016+A1: 2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)
    - EN 45545-2:2013+A1:2015 (PCB)
