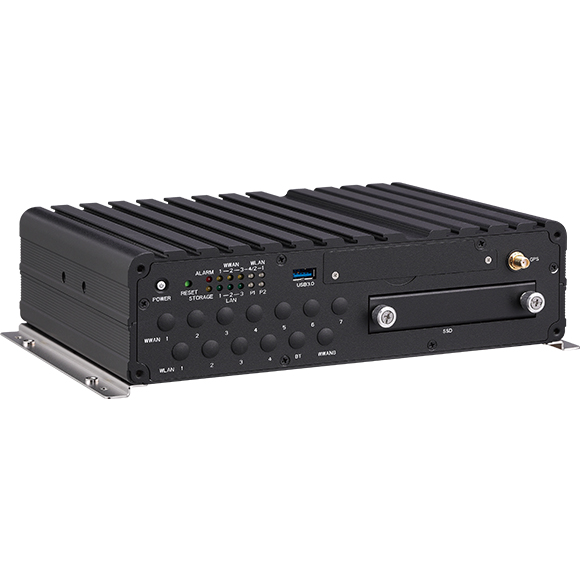

车载工业计算机-OBPC-6223

★Intel Atom® processor quad core E3950, 1.60 GHz
★Six SIM cards + three WWAN modules support
★Built-in u-blox-M8N GPS
★Built-in CAN Bus 2.0B
★1 x External storage (compatible with 15mm disk)
★EN 50155, class OT4 conformity
★3 x mini-PCIe + 2 x M.2 socket expansion
★Wide voltage input 9~48 VDC
★1 x DB9 for 1 x Mic-in, 2 x Line-out
★Three video outputs, two VGA and one HDMI
ꄴ上一个： 车载工业计算机-OBPC-6225
ꄲ下一个： 车载工业计算机-OBPC-1912

  • 产品规格

    CPU Intel Atom® processor quad core E3950, 1.6 GHz, 12W, 4 core
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB
    Video Output Chipset Intel® HD graphics 5051 x HDMI 1.4b up to 4096 x 2160 @30Hz2 x VGA up to 1920 x 1200 @60Hz
    Storage 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)1 x CFast (externally accessible), optional mSATA
    Expansion 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0), BOM optional full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)1 x M.2 3042 Key B socket (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.0, PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external SIM
    GNSS and On Board Sensor 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouG Sensor (3-axis, 10-bit resolution)
    LAN 2-Port LAN, 10/100/1000 Mbps I210-IT GbE, BOM optional 3-port LAN
    Security TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)
    I/O Interface-Front 12 x LED indicators (including 2 x programmable LED)6 x Externally accessible SIM card sockets with cover1 x 2.5" removable SSD tray1 x Externally accessible CFast card socket with cover1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A)14 x SMA antenna
    I/O Interface-Rear 1 x Circle type DC input with ignition
    - 24/36 VDC (9~48 VDC), non-isolation1 x M12 with two USB 2.02 x M12 X-coded LAN port, 10/100/1000 Mbps1 x DB9 (AUDIO), female for 1 x Mic-in, 2 x Line-out2 x VGA1 x HDMI 1.4b1 x DB9 (COM) full RS232 (isolation)1 x DB9 (MULTI PORT) for RS232 TX/RX, RS485 (all w/ isolation), USB 2.01 x 18-pin terminal block
    - 1 x CAN Bus 2.0B (on board)
    - 4 x DI with isolation
    - 4 x DO with isolation
    - Vin, GND for GPIO
    Power Management & Software Support Power input 24/36 VDC w/o isolationSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10/Linux
    Dimensions 260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75")
    Weight 2.8kg
    Environment Operating temperatures
    - EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    Standards/Certifications CEFCC Class AEN 50155: 2017
    - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1, C2
    - EMC EN 50121-3-2: 2016
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)EN 45545-2:2013+A1:2015 (PCB)
