车载工业计算机-OBPC-1912

★Intel Atom® processor Bay Trail E3815, 1.46GHz
★IP67 precision design to resist water and dust
★Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)
★U-blox NEO-M8N on board
★Dual SIM cards for WWAN modules
★Additional waterproof HDMI connector (by request)
★Smart power management with ignition on/off delay via software control and low voltage protection
★Wide range DC input from 9V~36V
★Wide operating temperature -40°C~70°C
★Certified by CE/FCC/E13 mark/EN50155
ꄴ上一个： 车载工业计算机-OBPC-6223
ꄲ下一个： 车载工业计算机-OBPC-1033

  • 产品规格

    CPU Intel Atom® processor Bay Trail E3815, 1.46GHz
    Memory 1 x 204-Pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 4GB
    Storage 1 x mSATA1 x SATA DOM or 1 x 2.5” SSD
    Expansion 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (mSATA + USB 2.0 + PCIe)
    Function 1 x U-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/ BeiDou)Built-in G-sensorTPM 2.0

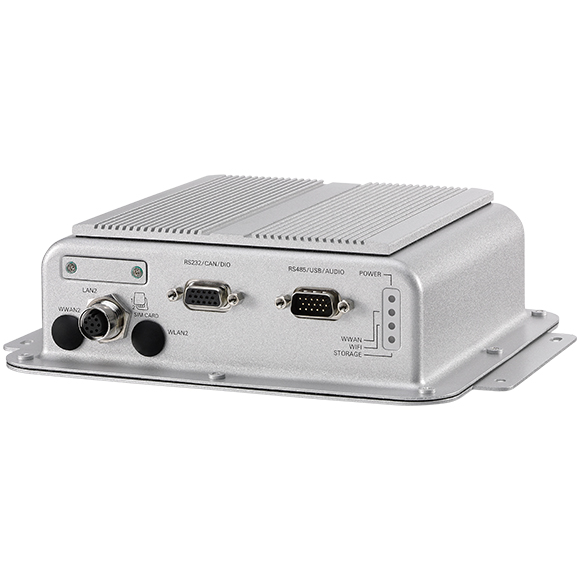

    I/O Interface-Front 4 x LED for power, WWAN, Wi-Fi, storage2 x SIM socket (micro type) with cover1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet1 x (Male) 15-pin waterproof D-SUB connector
    - 1 x RS485 (TX+/TX-)
    - 1 x USB 2.0
    - 1 x Mic-in (L/R)
    - 1 x Line-out (L/R)
    - 1 x Optional VIOB-CAN-05/06 or 2 x video input1 x (Female) 15-pin waterproof D-SUB connector
    - 2 x RS-232 (TX/RX)
    - 1 x CAN 2.0B (w/ isolation)
    - 3 x DI, 3 x DO2 x Antenna hole for WWAN/WLAN

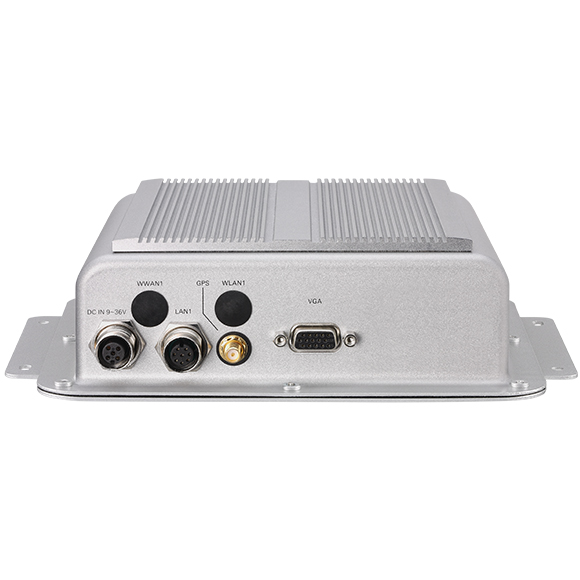

    I/O Interface-Rear 1 x M12 5-pin circular power connector (ignition, power, GND)1 x M12 (A-code) connector for 10/100/1000Mbps Ethernet1 x 15-Pin waterproof D-SUB connector for VGA output1 x Waterproof HDMI connector (by request)3 x Antenna hole for WWAN/WLAN/GPS
    Operating System Windows 7, WES7Windows 8, WES8Windows 10Linux (by request)
    Dimensions 185 x 167 x 56.5 (W x D x H) (mm) (7.28” x 6.57” x 2.22”)Weight: 1.1kg (2.42bs)
    Environment Temperature
    - Operating temperatures: -40°C~70°C
    - Storage temperatures: -45°C~85°C
    - Damp heat test per EN60068-2-30Humidity
    - IEC60068-2-3, damp heat steady state test, 40°C, 95%, 48HrsVibration
    - IEC 60068-2-64, 2G
    - Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
    - Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24Shock
    - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g
    Certifications CEFCC Class AE13EN50155
