车载工业计算机OBPC-1022

★Compact and fanless design
★Built-in GPS receiver
★Variety of wireless communication options
★Smart power management with Ignition on/off delay via software control and low voltage protection
★Wide range DC input from 9~36V
★EN50155 Class OT4 conformity
★Compliance to EN45545-2
★5 x RS232 and 2 x RS485
ꄴ上一个： 车载工业计算机-OBPC-1032
ꄲ下一个： 车载工业计算机-OBPC-7271

  • 产品规格

    CPU Intel Atom® x5-E3930 dual core 1.8GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 8GB. Default 4GB
    Expansion 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 1 x external SIM1 x Full size mini-PCIe socket (PCIe 2.0, USB 2.0, mSATA)
    Function 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou)Built-in G-sensorBuilt-in TPM

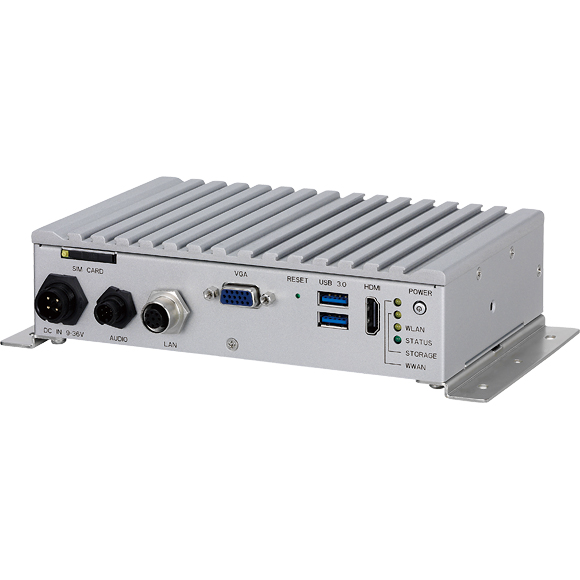

    I/O Interface-Front 1 x Power button4 x LED indicators for status, storage, WLAN and WWAN1 x System reset button2 x Type A USB 3.0 compliant host, supporting system boot up1 x DB-15 VGA1 x HDMI1 x External SIM card socket1 x Circular connector for 9~36VDC input with ignition and 20W typical power consumption1 x Circular connector for Audio-In and Audio-Out1 x M12 connector for 10/100/1000Mbps Ethernet

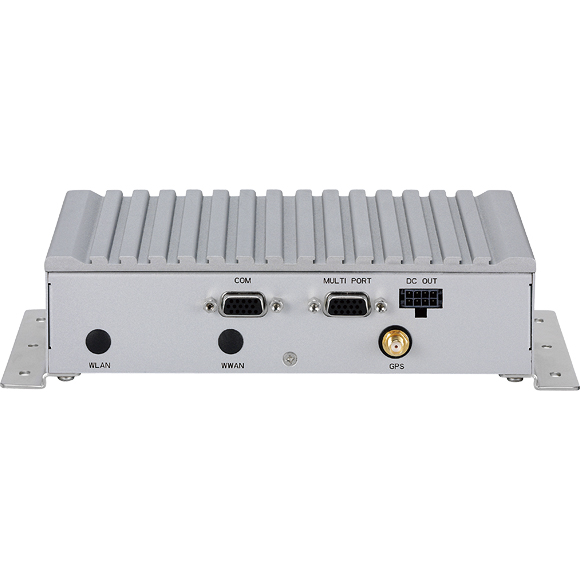

    I/O Interface-Rear 1 x 12V/2A DC output, SMBus, power button1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS4851 x DB15 for multi port
    - 1 x CAN2.0
    - 1 x RS232 Tx/Rx
    - 1 x odometer and direction
    - 5 x programmable DIO
       Input voltage (internal type): 5VDC TTL (default)
       Input voltage (source type): 3~24VDC
       Digital output (sink type): 5VDC TTL (default), max current: 20mA
       Digital output (source type): 3~24VDC3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
    Expandable Storage 1 x 2.5" SSD SATA 3.01 x mSATA
    Operating System Windows 10Linux
    Power Management Power input 9~36VDC w/o isolationSelectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/off ignition, software detectableSupport S3, S4 suspend mode
    Dimensions & Weight 185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8")1 kg (2.20 lbs)
    Construction Aluminum top case with sheet metal
    Environment Operating temperatures:
    - EN50155 Class OT4 -40 ~ 70°C, 85°C for 10 minutes
    (w/ industrial SSD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration:
    Vibration (random): 2g @5~500 Hz
    Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
    Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity TestShock:
    Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
    Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
    Standards/Certifications CEFCC Class AEN 50155: 2017
    - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1, C2
    - EMC EN 50121-3-2: 2016
    - Environment EN 60068-2-1, EN 60068-2-2
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)EN 45545-2:2020 (PCB)
