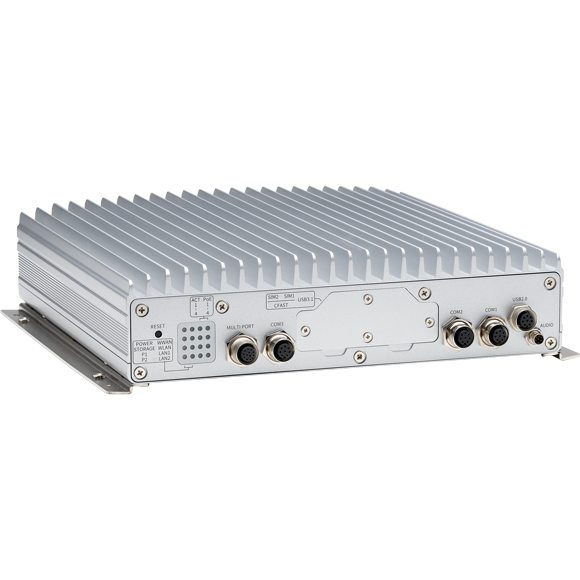

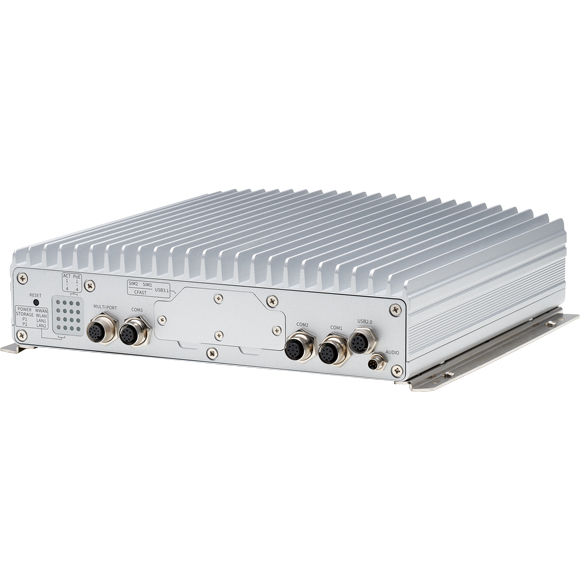

车载工业计算机-OBPC-7253

★Intel® Core™ 9th Gen, i7-9700TE, up to 3.8GHz, 8 Core
★Full IP65 protection
★4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
★2 x Internal 2.5” SSD, 2 x mSATA and 1 x CFast with RAID 0/1/5/10
★2 x Isolated CAN Bus 2.0B
★Optional GNSS Dead Reckoning supported
★Support 5G NR, Wi-Fi 6, V2X/DSRC, accelerator cards
★CE/FCC/E-mark (E13) /MIL-STD-810G
ꄴ上一个： 车载工业计算机-OBPC-7270
ꄲ下一个： 车载工业计算机-OBPC-7252

  • 产品规格

    CPU Intel® Core™ 9th Gen. i7-9700TE, up to 3.8 GHz, 35W, 8 Core
    Chipset Intel® C246 platform controller hub
    Memory 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
    Video Output Chipset Intel® UHD Graphics 6301 x VGA up to 1920 x 1200 @ 60Hz1 x HDMI (4096 x 2160 @ 30Hz) (option)
    Storage 2 x 2.5” SATA 3.0 internal SSD (tray: 9.5 mm height)2 x mSATA 3.0 (occupied mini-PCIe socket) + 1 x CFastRAID 0/1/5/10 supported
    Expansion 1 x M.2 3042/3052 Key B (USB 2.0, USB 3.2 Gen 2×1) for LTE/5G NR2 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])1 x M.2 2230 Key E (USB 2.0, 2 x PCIe 3.0) for Wi-Fi. (BOM option)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0)
    GNSS and On Board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou, optional modules with dead reckoning availableTPM 2.0 by Infineon SLB9665TT21 x 3D accelerometer and 3D gyroscope
    Power over Ethernet 4 x Independent LAN, 10/100/1000 Mbps Intel® I210-IT GbE, PoE 802.3af/at max. 60W2 x LAN, 10/100/1000 Mbps (1 for I219 support iAMT and WOL)
    I/O Interface-Front 1 x Reset button16 x LED indicators (including 2 x programmable LED)2 x USB 3.2 Gen 2 x 1 type A (5V/0.9A) with cover2 x External Micro SIM slot with cover1 x CFast with cover1 x 6-pin for audio (1 x mic-in (mono) 1 x line-out (L + R)). (option) Additional 1 x mic-in (mono) and 1 x line-out (L + R)1 x M12 8-pin for 2 x USB2.0 (5V/0.5A)1 x M12 8-pin for full RS-232/422/4852 x M12 8-pin for full RS-2321 x M12 12-pin
    - 2 x Isolated CAN Bus 2.0B
    - 3 x DI, and 3 x DO1 x M12 8-pin (internal reservation)
    - 12VDC(2A) output
    - RS-232 (TX & RX)
    - Remote power button
    - Reset button
    - Sleeping mode button1 x VGA (internal reservation)1 x HDMI (internal reservation)
    I/O Interface-Rear 1 x VGA2 x M12 A-code LAN port, 10/100/1000 Mbps4 x M12 A-code PoE port, 10/100/1000 Mbps1 x M12 5-Pin DC Input with Ignition (9 ~ 36V)7 x SMA antenna hole (WWAN(4)/WLAN(2)/GNSS(1))
    Power Management & Software Support Power input 9~36VDCCranking voltage: 6V~9V (< 30 seconds)Reverse protection, OCP & UVPSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by software1~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10Linux
    Dimensions 256 x 256.4 x 66.5 (W x D x H) (mm)
    Weight 4.5kg
    Environment Operating temperatures
    - -30°C~60°C (w/ industrial SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random)
    - 2g @ 5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40gNon-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    Certifications CE approvalFCC Class AE-Mark (E13)IP65 Compliance
