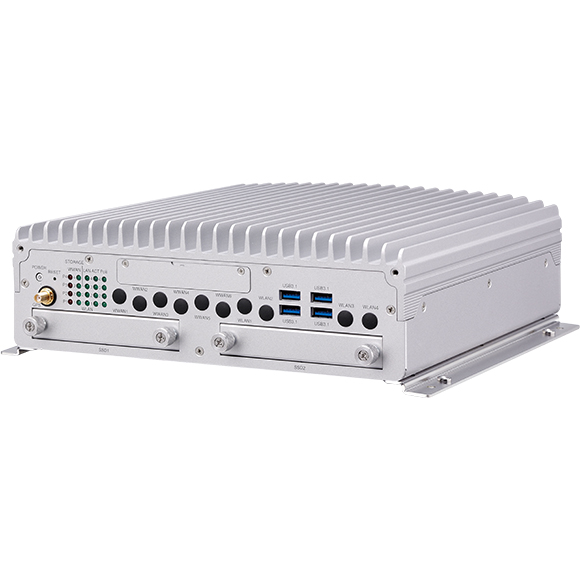

车载工业计算机-OBPC-7252

★Intel® Core™ 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core
★4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
★1 x VGA and 1 x HDMI video output
★2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1
★3 x WWAN module slot, each for 2 x external SIM socket
★4 x mini-PCIe slot and 1 x M.2 Key B slot
★CE/FCC/E mark
ꄴ上一个： 车载工业计算机-OBPC-7253
ꄲ下一个： 车载工业计算机-OBPC-7251

  • 产品规格

    CPU Intel® Core™ 8th Gen. i7-8700T, up to 4 GHz, 35W, 6 CoreCompatible Intel® Core™ 9th Gen. (Coffee Lake Refresh)
    Chipset Intel® Q370 platform controller hub
    Memory 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
    Video Output Chipset Intel® UHD Graphics 6301 x HDMI 1.4b up to 4096 x 2160 @ 30Hz1 x VGA up to 1920 x 1200 @ 60Hz
    Storage 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported2 x mSTAT 3.0 (BIOS selection)
    Expansion 1 x M.2 3042/3050/3052 (default) Key B socket (USB 2.0, USB 3.1) for LTE/5G NR module with dual SIM1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
    Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
    Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])
    GNSS and On Board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with dead reckoning availableTPM 2.0 by Infineon SLB9665TT2G Sensor (3-axis, 10-bit resolution)
    Power over Ethernet 4 x Independent LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1 x LAN, 10/100/1000 Mbps I219 support iAMT and WOL
    I/O Interface-Front 20 x LED indicators (including 4 x programmable LED)4 x USB 3.1 type A (5V/1A)6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM option)1 x Reset button1 x Power button with LED2 x 2.5” external SSD11 x SMA antenna hole (GPS/WWAN/WLAN)
    I/O Interface-Rear 4 x RJ45 PoE 802.3af/at, max. 60W1 x RJ45 LAN port, 10/100/1000 Mbps1 x 3-pin terminal block for 9V~36VDC1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI1 x Mic-in, 2 x Line-out2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB151 x Isolated CANBus 2.0B1 x GPS DR (option)4 x DI and 4 x DO2 x USB 3.1 type A (5V/1A)1 x HDMI 1.4b1 x VGA
    Power Management & Software Support Power input 9~36VDCCranking voltage: 6V~9V (< 30 seconds)Reverse protection, OCP & UVPSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by software10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10Linux
    Dimensions 260 x 256 x 83.5 (W x D x H) (mm)
    Weight 4.2kg
    Environment Operating temperatures
    - -30°C~60°C (w/ industrial SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    Certifications CE approvalFCC Class AE13 mark
