车载工业计算机-OBPC-7250

★Intel® Core™ 8th Gen. desktop, i7-8700T, 2.4GHz, 6 Core
★8 x 10/100/1000 PoE 802.3af/at
★1 x VGA and 1 x HDMI video output
★ultraONE+ for 10-Meter video + audio output
★2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
★2 x WWAN module and 3 x SIM socket with eSIM option
★3 x mini-PCIe and 1 x M.2
★CE/FCC/E mark
ꄴ上一个： 车载工业计算机-OBPC-7251
ꄲ下一个： 车载工业计算机-OBPC-7261

  • 产品规格

    CPU Intel® Core™ 8th Gen. i7-8700T, 2.4GHz, 35W, 6 Core
    Chipset Intel® Q370 platform controller hub
    Memory 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel(64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
    Video Output Chipset Intel® UHD Graphics 6301 x HDMI 1.4b up to 4096 x 2160 @ 30Hz1 x VGA up to 1920 x 1200 @ 60Hz1 x ultraONE+ compatible with specific monitor
    Storage 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported2 x mSATA 3.0 (share with mini-PCIe slot)
    Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0 auto detection)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM3, 1 x internal SIM21 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, optional SATA 3.0 setup by BIOS)1 x M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM1, 1 x internal SIM2
    GNSS and On Board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/ Galileo/BeidouOptional M8U/M8L modules with dead reckoning availableTPM 2.0 by Infineon SLB9665TT2G Sensor (3-axis, 10-bit resolution)
    Power over Ethernet 8-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1-Port LAN, 10/100/1000 Mbps I210-IT GbE

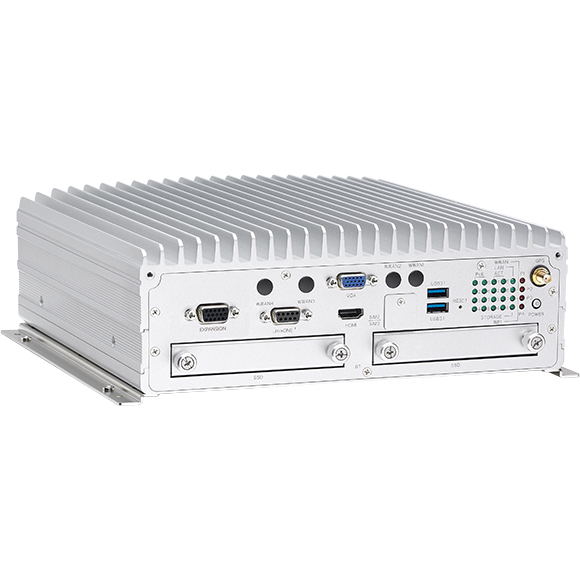

    I/O Interface-Front 24 x LED indicators (including 4 x programmable LED)1 x HDMI 1.4b1 x VGA1 x ultraONE+ for 10M video + audio output + 24VDC output2 x USB 3.1 type A (5V/1A)2 x Externally accessible SIM card sockets2 x 2.5” removable SSD tray1 x Reset button1 x Power button5 x SMA antenna

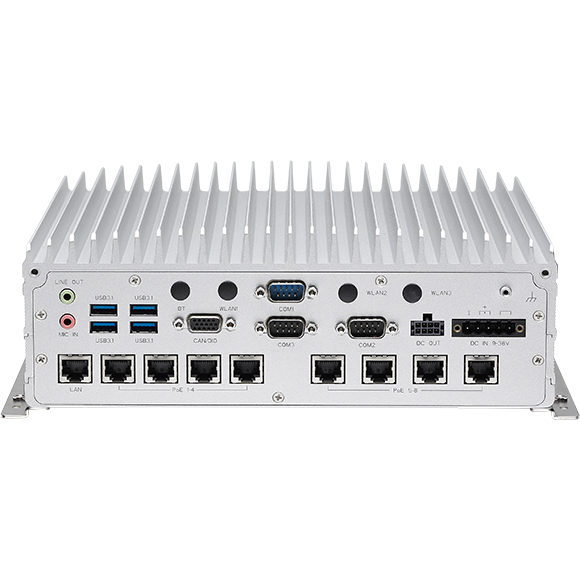

    I/O Interface-Rear 8 x PoE 802.3af/at (max. 60W)1 x RJ45 LAN port, 10/100/1000 Mbps1 x 5-pin terminal block for 9V~36V DC1 x Mic-in, 1 x Line-out1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB15
    - 1 x Isolated CANBus 2.0B
    - 1 x GPS DR (option)
    - 4 x DI and 4 x DO4 x SMA antenna4 x USB 3.1 type A (5V/1A)
    Power Management & Software Support Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10/Linux/YOCTO (by request)
    Dimensions 260 x 256 x 90.1 (W x D x H) (mm)
    Weight 5.8kg
    Environment Operating temperatures
    -20°C~60°C (w/industrial SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    Certifications CE approval, FCC Class A, E13 mark
