车载工业计算机-OBPC-7261

★11th Gen Intel® Core™, cost-efficient performance
★Compact, rugged and fanless design
★Rich I/Os, 4 x PoE+, GbE, 4 x USB 2.0/3.2 & 2 x RS232/422/485
★1 x 2.5” SSD, 1 x mSATA and 1 x NVMe SSD for data integrity
★Up to 3 combinations of LTE/5G, Wi-Fi 5/6 for mobile router function
★Triple display, VGA, HDMI and DP for multi video-out
★9~36V DC-IN with ignition control & OCP/OVP
★Wide range operating temperature of -30°C~60°C (15W TDP & PoE)
ꄴ上一个： 车载工业计算机-OBPC-7250
ꄲ下一个： 车载工业计算机-OBPC-7260

  • 产品规格

    CPU 11th Gen Intel® Core™Core i5-1145GRE, base frequency 1.5GHz/ 2.6GHz, 4c, 8 MB Intel® Smart Cache (VTC 7260-5C4)TDP boot mode in BIOS setting: Nominal (15W)Core i7-1185GRE, base frequency 1.8GHz/ 2.8GHz, 4c, 12 MB Intel® Smart Cache (VTC 7260-7C4)Graphics:
    - Intel® Iris® Xe graphics, 1.3GHz
    - Max resolution: 4096 x 2304@60Hz (HDMI)
    - DirectX: 12.1, OpenGL: 4.6
    Memory 2 x SO-DIMM, DDR4-3200MHz4GB+4GB in default, 64GB in max.ECC (in-band ECC), dual- channel support
    Storage 1 x 2.5” SSD (15mm height)1 x mPCIe for mSATA (SATA 3.0)1 x M.2 2242/2280 Key M NVMe SSD (PCIe 4.0 x4), Hailo AI card in option
    Expansion slots 1 x mini-PCIe socket (PCIe 3.0/USB 3.2 + USB 2.0), 2 x micro SIMs supported1 x M.2 3042/3050 Key B socket (USB 3.2), 2 x micro SIMs supported1 x M.2 2230 Key E socket (PCIe 3.0 x2 & USB 2.0), Wi-Fi or Hailo AI card in option)
    Display 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz1 x VGA, up to 2560 x 1600@60Hz1 x DP, 4096 x 2304@60Hz
    PoE+ 4-port independent 2.5GbE, RJ45 connector
    - IEEE 802.3 af/at, total 60W
    GbE 1-port independent GbE, RJ45 connector
    - vPro (iAMT) support
    USB 3 x USB 3.2 Gen1:
    - Host type-A connector1 x USB 2.0, host type-A
    Serial Port 2 x full RS232/422/485, selectable2 x full RS232 wafer-type reserved
    Security TPM 2.0: Infineon SLB9670VQ2.0 FW7.62
    Audio Line-out, unbalance stereo, left & right channelMIC-in, stereoLine-in reserved (wafer connector)
    MEMS Sensor 3D accelerometer and 3D gyroscopeController: ST LSM6DSLTR
    DI/DO 4-bit input4-bit output
    CAN bus 1 x CAN 2.0A/ 2.0B2.5KV isolated
    GNSS U-blox NEO-M9N GNSS module for GPS/GLONESS/QZSS/Galileo/BeidouOptional DR (Dead Reckoning) function, NEO-M8U/M8L
    Power Supply Nominal voltage: 9~36VCranking voltage: 6V~9V (less than 20 sec)OCP & UVP (shut down once exceeding 37V)Ignition on/off control & programmable on/off delay timerOptional for remote power on/off control
    I/O ports, Front-plate ATX power button, Reset button9 x LED Indicators, 1 x VGA (DB15), 2 x COM (DB9, RS232/422/485), 1 x Multi-port (DB15, 4xDI, 4xDO, CAN, DR signal) , 1 x Ext. (DB15, reserved), 1 x PR-SMA for GNSS, 4 x PR-SMA for WLAN

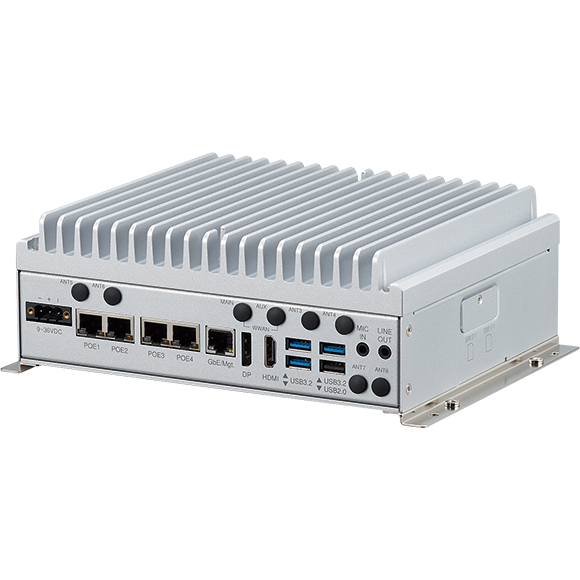

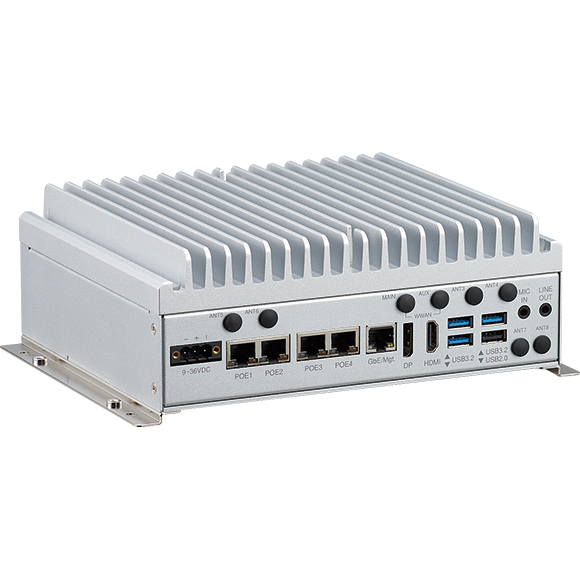

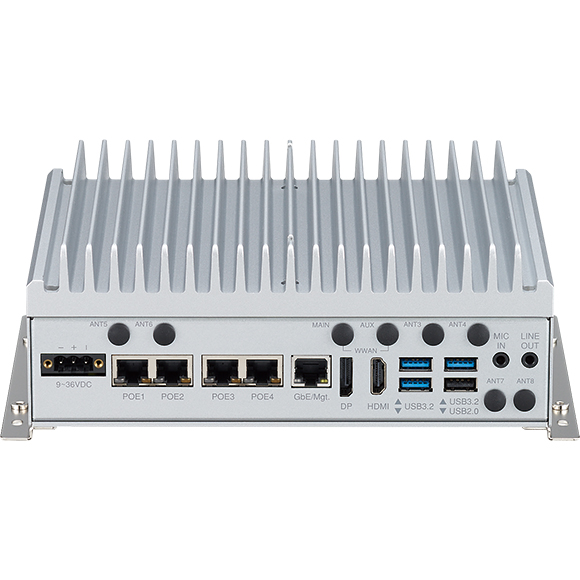

    I/O ports, Rear-plate 2 x Audio jack (Line-out & MIC-in)3 x USB 3.2 type A, 1 x USB 2.0 type A1 x HDMI, 1 x DP, 4 x PoE+ (2.5GbE, RJ45), 1 x GbE, 9~36VDC (3-pin Phoenix)4 x SMA for WWAN, 4 x antenna holes reserved
    I/O ports, side-plate 2 x SIM slots (SIM1-1, SIM2-1)
    Dimensions & Weight 210.0mm x 173.0mm x 75.0mm (w/o mount brackets)234.0mm x 173.0mm x 81.0mm (w/ mount brackets)Weight: 3.5kg
    Environment Operating temperatures: -30°C~60°C (15W TDP & PoE)Storage temperatures: -40°C~85°CRelative humidity: 10%~95% (non-condensing)
    Vibration & Shock Vibration in operating:
    - MIL-STD-810H, 514.8C Procedure 6, Category 4
    - IEC 60068-2-64: 2.0g@5~500HzVibration in storage:
    - MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7gShock:
    - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g
    Certifications CE approval, FCC Class A, UKCA, E13 Certified
    Operating System Windows 10 64-bit/Windows 10 IOT 64-bit, Windows 11Linux (Ubuntu 18.04)
    External Cable (option) DB15 multi-port adapter cable, 20cm
