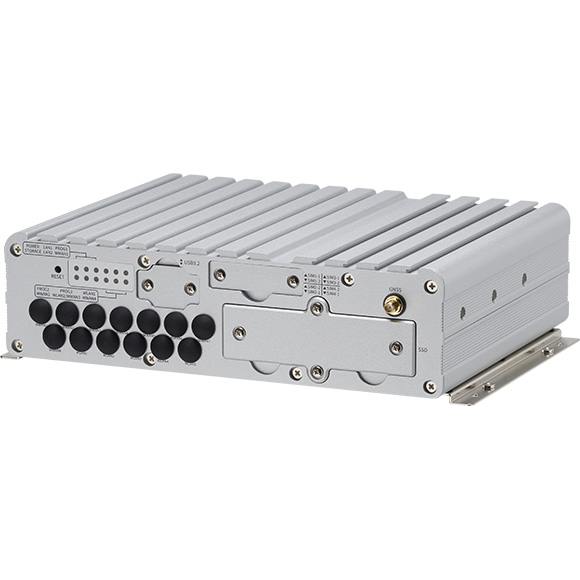

车载工业计算机-OBPC-6232

★Intel Atom® processor quad core x7433RE, 1.5GHz
★Eight SIM cards + four WWAN modules support
★Built-in u-blox-M9N GPS
★Built-in CAN FD
★1 x External storage (compatible with 15mm disk)
★E mark conformity
★3 x M.2 + 2 x mPCIe socket expansion
★Wide voltage input 9~36 VDC
★Two video outputs, one VGA and one HDMI
★1 x Mic-in, 1 x Line-out, 1 x Line-In
★Full IP66 protection
ꄴ上一个： 车载工业计算机-OBPC-7260
ꄲ下一个： 车载工业计算机-OBPC-6231

  • 产品规格

    CPU Intel Atom® processor x7433RE, 1.5GHz, 9W, 4 core
    Memory 1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB.default 8GB
    Video Output 1 x VGA up to 1920 x 1200 @60Hz1 x HDMI 2.0 up to 4096 x 2160 @60Hz
    Storage 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)1 x mSATA (occupy one mPCIe slot)
    Expansion 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM1 x Full size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0) for WiFi, BOM option M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM
    GNSS and On Board Sensor 1 x Default u-blox NEO-M9N GNSS module for GPS/Glonass/QZSS/ Galileo/BeidouOptional M9V modules with dead reckoning availableG Sensor (3-axis, 10-bit resolution)
    LAN 2-Port LAN, 10/100/1000/2500 Mbps I226-IT Ethernet Controller
    Security TPM 2.0: Infineon SLB9670VQ2.0
    I/O Interface-Front 12 x LED indicators (including 3 x programmable LED)8 x Externally accessible Nano-SIM card sockets with cover1 x 2.5” SATA 3.0 SSD tray (removable, 15mm)1 x Reset button2 x USB 3.2 (Gen 2) type A14 x SMA antenna
    I/O Interface-Rear 1 x M12 5-pin A-code DC Input with ignition, 9~36V DC-in + ignition + GND2 x M12 X-coded LAN port, 10/100/1000/2500 Mbps1 x M12 (USB2.0) A-coded with two USB 2.01 x M12 A-coded (AUDIO) for Mic-in, 1 x Line-out, 1 x Line-In1 x VGA, 1 x HDMI 2.02 x M12 A-coded (COM1, COM2) for selectable RS232/422/485 Full1 x M12 A-coded (COM3) for RS232 Full1 x M12 A-coded (MULTI PORT)
    - 1 x CAN FD (isolated)
    - 1 x GNSS Speed/Direction
    - 12V/2A DC output
    - GND1 x M12 A-coded (GPIO)
    - 4 x DI
    - 4 x DO
    - GND
    Power Management & Software Support Power input 9~36 VDCSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10, 11 (64-bit)Linux 4.x
    Dimensions 260.0mm (W) x 201.6mm (D) x 70.0mm (H) (10.24” x 7.94” x 2.75”)
    Weight 2.8kg
    Environment Operating temperatures:
    - -40°C to 70°C (w/industrial SSD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration
    - IEC 60068-2-64, 2G for SSD
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24Shock
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
    Standards/Certifications CEFCC Class AE13 markIP66 Compliance
