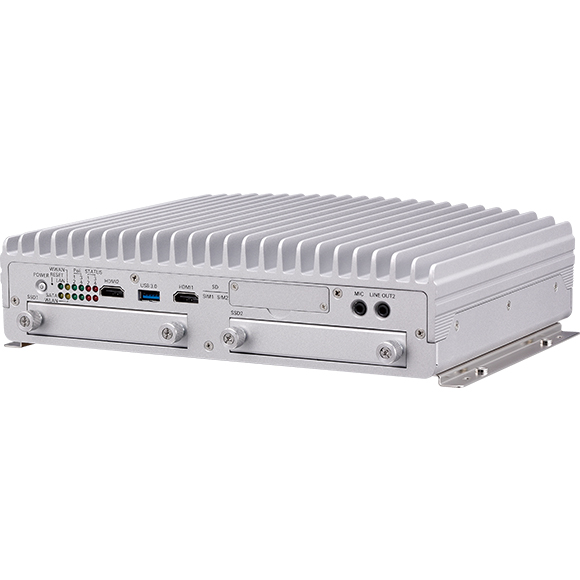

车载工业计算机-OBPC-6222

★Intel Atom® processor quad core E3950, up to 2.0GHz
★4 x PoE (802.3af/at, max. 60W)
★Built-in u-blox-M8N GPS
★Built-in CAN Bus 2.0B
★Three video outputs, one VGA and two HDMI
★E Mark conformity
★3 x mini-PCIe socket expansion
★Dual external storage (compatible with 15mm disk)
★1 x USB DOM to run OS
★1 x SD card for exporting and backing up data
ꄴ上一个： 车载工业计算机-OBPC-6231
ꄲ下一个： 车载工业计算机-OBPC-6221

  • 产品规格

    CPU Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
    Video Output Chipset Intel® HD graphics 5052 x HDMI 1.4b up to 4096 x 2160 @30Hz1 x VGA up to 1920 x 1200 @60Hz
    Storage 2 x 2.5" SSD/HDD SATA 3.0 (compatible with 15mm drive)1 x SD memory card 3.0 (externally accessible)1x USB EDC for USB DOM
    Expansion 1 x Full size mini-PCIe socket (USB 2.0) for LTE module, BOM optional M.2 3042 Key B (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)1 x Half size mini-PCIe socket (USB 2.0, PCIe 2.0)
    GNSS and On Board Sensor 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouG Sensor (3-axis, 10-bit resolution)
    LAN and Power over Ethernet 4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1-Port LAN, 10/100/1000 Mbps I210-IT GbE
    Security TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)
    I/O Interface-Front 12 x LED indicators (including 3 x programmable LED)2 x Externally accessible SIM card socket with cover2 x 2.5" removable SSD tray1 x Externally accessible SD card socket with cover1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A)2 x HDMI 1.4b1 x Mic-in, 1 x Line-out
    I/O Interface-Rear 1 x 3-pin terminal block for 9V~48V DC1 x RJ45 10/100/1000 Mbps4 x PoE 802.3af/at (max. 60W)1 x VGA1 x DB9 full RS2324 x SMA antenna2 x USB 2.0 type A (5V/0.5A)1 x Line-out1 x DB15 (DIO)
    - 4 x DI with isolation
    - 4 x DO with isolation
    - Vin, GND for GPIO1 x DB15 (MULTI PORT)
    - 1 x RS422/RS485
    - 1 x RS232 (TX/RX)
    - 1 x CAN 2.0B
    - 1 x 12VDC, 2A output (Vout, GND)
    Power Management Power input 9~48 VDCSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 10/Linux
    Dimensions 260mm (W) x 196mm (D) x 66.5mm (H)
    Weight 3.2kg
    Environment Operating temperatures:
    - -40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    Standards/Certifications CEFCC Class AE13 mark
