车载工业计算机-OBPC-6220

★Intel Atom® x7-E3950 processor quad core 1.6GHz
★3 x LAN support (2 x POE by request)
★Dual externally accessible 2.5” SSD tray
★Inside backup battery (option)
★VGA/HDMI/(ultraONE+ is supported to 10 meter or LVDS, by request)
★4 x SIM card support (default type is 3 x external & 1 x internal)
★Built-in u-blox M8N GPS module, optional dead reckoning support
★Built-in CAN 2.0B optional SAE J1708/SAE J1939 module
★Dual Mic-in and Line-out for various application
★Certified by CE/FCC/E13 mark
ꄴ上一个： 车载工业计算机-OBPC-6221
ꄲ下一个： 车载工业计算机-OBPC-6211

  • 产品规格

    CPU Intel Atom® processor Apollo Lake E3950, 1.6GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB (default 4GB)
    Storage 2 x Removable 2.5” SSD tray
    Expansion 1 x Full size mini-PCIe socket (USB 2.0)1 x M.2 slot B (USB 3.0 + USB 2.0)2 x Full size mini-PCIe socket (USB 2.0 + PCIe)
    Function 1 x U-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/ Beidou)Built-in G-sensorTPM 2.0
    I/O Interface-Front 1 x Power button with LED4 x LED for WWAN, WLAN, SSD, GPS1 x Reset button1 x USB 2.0 type A connector4 x SIM card support (default type is 3 x external & 1 x internal)2 x Removable 2.5” SSD tray2 x Mic-in and 2 x Line-out6 x SMA type antenna hole for WWAN (2)/WLAN (3)/BT (1)

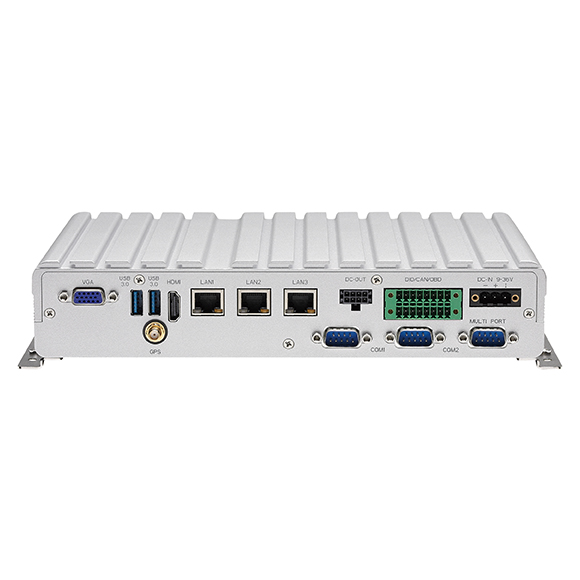

    Interface-Rear 1 x DB15 VGA1 x HDMI port1 x LVDS/ultaONE+ (by request)1 x Phoenix connector for 9~36VDC power/GND/ignition input1 x 4 x 2 connect for 12V/2A DC output, RS-232, power button, reset button (MDI1) and sleeping mode (MDI2)2 x USB 3.0 type A connector3 x RJ45 10/100/1000 fast ethernet with LED (2 x POE by request)2 x DB-9 (male) for fully RS-2321 x DB-9 (male) for multi-port
    - 2 x MDO
    - 1 x Speed (for DR)
    - 1 x Direction (for DR)
    - 1 x SAE J1708 or J1939 (opional VIOB-CAN-05 or CAN-06 module)1 x 16-pin terminal block
    - 1 x CAN Bus 2.0B (onboard)
    - 1 x RS422/485
    - 4 x DI, 4 x DO1 x Antenna hole for GPS
    Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareStatus of ignition and low voltage can be detected by softwareSupport S3/S4 suspend mode
    Operating System Windows 10YOCTO (by request)
    Dimensions 259mm (W) x 196mm (D) x 50mm (H) (10.20” x 7.72” x 1.97”)Weight: 1.7kg
    Environment Temperature
    - Operating temperatures: -40°C~70°C (w/ industrial SSD) with air flow
    - Storage temperatures: -40°C~85°C
    - Damp heat test per EN60068-2-30Humidity
    - IEC60068-2-3, damp heat steady state test, 40C, 95%, 48HrsVibration
    - IEC 60068-2-64, 2G for SSD
    - Operating: MIL-STD-810G, 514.6C procedure 1, category 4
    - Storage: MIL-STD-810G, 514.6E procedure 1, category 24Shock (SSD)
    - MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g
    - Crash hazard: procedure V, ground equipment=75g
    Certifications CEFCC Class AE13 MarkLVD (EN 62368-1)
