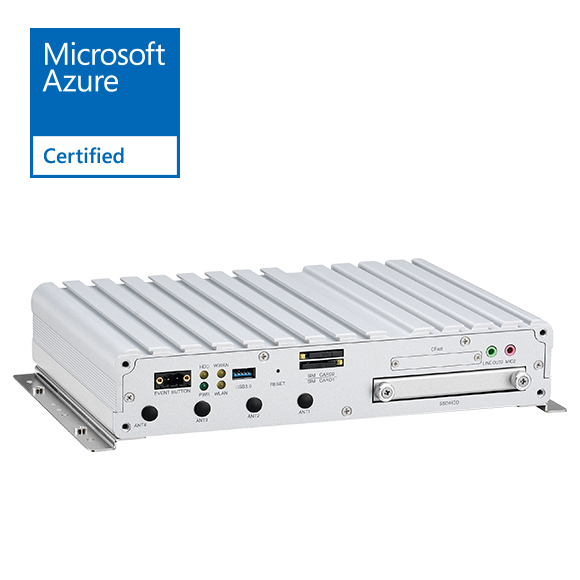

车载工业计算机-OBPC-6211

★Intel Atom® processor quad core E3845, 1.91GHz
★支持4通道的视频输入
★支持3个SIM 卡+ 双WWAN模块
★内置U-blox M8N GPS, 支持可选的航位推算
★内置CAN Bus 2.0B. 可选CAN/OBDII 模块(CAN Bus 2.0B or OBDII SAE J1939)
★通过WWAN模块的RTC/SMS网络唤醒
★通过MIL-STD-810G认证
★4 x mini-PCIe 槽扩展
★可编程的8 x GPIO
★通过WWAN模块的语音通讯
ꄴ上一个： 车载工业计算机-OBPC-6220
ꄲ下一个： 车载工业计算机-OBPC-6210

  • 产品规格

    CPU Intel Atom® processor quad core E3845, 1.91GHz
    内存 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 4GB
    存储 1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)1 x CFast (externally accessible)
    扩展 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0 + PCIe) + video capture card1 x Half size mini-PCIe socket (USB 2.0 + PCIe)
    GNSS功能 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/ Beidou) or optional module with Dead ReckoningBuilt-in G-sensor
    视频输入功能 4-channel analog NTSC/PAL video input4-channel stereo audio inputRecording video format: MPEG4/H.264 (Software Compression)Video resolution: Max D1 (NTSC: 720 x 480@30fps; PAL: 720 x 576@25fps)
    I/O 前置接口 4 x LED for power, storage, WWAN, WLAN2 x Externally accessible SIM card socket (selectable)1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray1 x Externally accessible CFast card socket with cover1 x Event button (trigger type)1 x Reset button1 x Type A USB 3.0 compliant host, supporting system boot up4 x Antenna hole for WWAN/WLAN/BT
    I/O 后置接口 1 x 9 ~ 36VDC input with ignition and 19W typical power consumption2 x Type A USB 2.0 compliant host, supporting system boot up2 x RJ45 10/100/1000 Fast Ethernet with LED1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz1 x DP port, resolution up to 2560 x 1600 @60H1 x Antenna hole for GPS1 x DB-9 RS-232 (RI/12V selectable)1 x DB-9 RS-422/4851 x DB15 connector for 4-channel video inputs1 x 16-pin terminal block
    - 1 x CAN Bus 2.0B (on board)
    - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
    - 8 x GPIO (Programmable digital input and digital output)
    Input Voltage (internal type): 5VDC TTL (default)
    Input Voltage (source type): 3 ~ 12VDC (Programmable Digital output or optional isolation)
    Digital output (sink type): 5VDC TTL (default), max current: 20mA
    Digital output (source type): 3 ~ 24VDC, max current: 150mA1 x 12VDC output (2A), SM Bus
    电源管理 Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareStatus of ignition and low voltage can be detected by softwareSupport S3/S4 suspend mode
    支持操作系统 Windows 8, WES8Windows 7, WES8Fedora
    体积 260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97")Weight: 2.1kg
    环境 Operating temperatures:
    -30°C to 70°C (w/ industrial SSD) with air flow
    -20°C to 50°C (w/ commercial HDD) with air flowStorage temperatures: -35°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD)Vibration (SSD/HDD): Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
    Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD/HDD):
    Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
    Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
    通过认证 CE approvalFCC Class AE13 Mark
