车载工业计算机-OBPC-6210

★Intel Atom® processor quad core E3845, 1.91GHz
★Three SIM cards + dual WWAN modules support
★Built-in U-blox M8N GPS, optional dead reckoning support
★Built-in CAN Bus 2.0B. Optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
★Wake on RTC/SMS via WWAN module
★Compliant with MIL-STD-810G
★4 x mini-PCIe socket expansion
★Programable 8 x GPIO
★Voice communication via WWAN module
ꄴ上一个： 车载工业计算机-OBPC-6211
ꄲ下一个： 车载工业计算机-OBPC-1911

  • 产品规格

    CPU Intel Atom® processor quad core E3845, 1.91GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 4GB
    Storage 1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)1 x CFast (externally accessible)
    Expansion 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0 + PCIe)1 x Half size mini-PCIe socket (USB 2.0 + PCIe)
    Function 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead ReckoningBuilt-in G-sensor

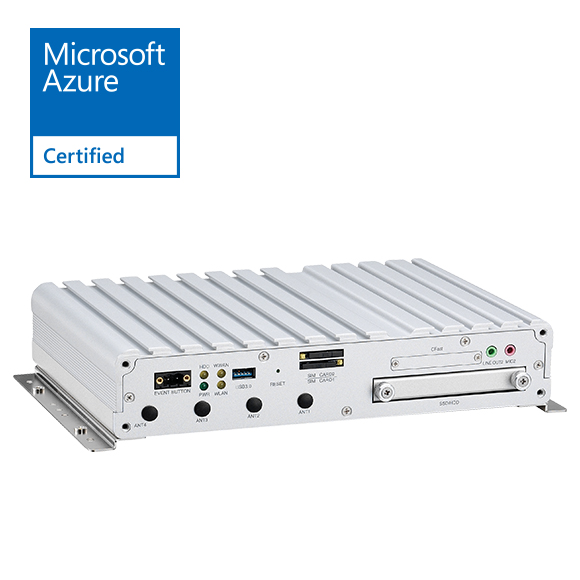

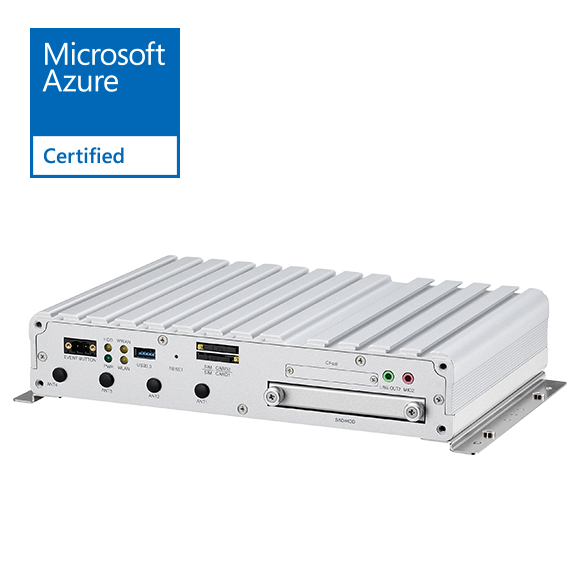

    I/O Interface-Front 4 x LED for power, storage, WWAN, WLAN2 x Externally accessible SIM card socket (selectable)1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray1 x Externally accessible CFast card socket with cover1 x Event button (trigger type)1 x Reset button1 x Type A USB 3.0 compliant host, supporting system boot up4 x Antenna hole for WWAN/WLAN/BT

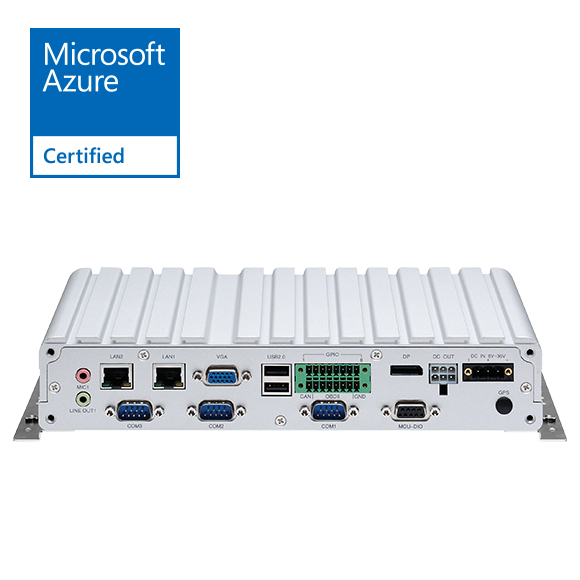

    I/O Interface-Rear 1 x 9 ~ 36VDC input with ignition and 19W typical power consumption2 x Type A USB 2.0 compliant host, supporting system boot up2 x RJ45 10/100/1000 Fast Ethernet with LED1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz1 x DP port, resolution up to 2560 x 1600 @60H1 x Antenna hole for GPS2 x DB-9 RS-232 (RI/12V selectable)1 x DB-9 RS-422/4851 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO1 x 16-pin terminal block
    - 1 x CAN Bus 2.0B (on board)
    - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
    - 8 x GPIO (Programmable Digital Input or optional isolation)
    Input Voltage (internal type): 5VDC TTL (default)
    Input Voltage (source type): 3 ~ 12VDC (Programmable digital input and digital output)
    Digital output (sink type): 5VDC TTL (default), max current: 20mA
    Digital output (source type): 3 ~ 24VDC, max current: 150mA1 x 12VDC output (2A), SM Bus
    Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareStatus of ignition and low voltage can be detected by softwareSupport S3/S4 suspend mode
    Operating System Windows 8, WES8Windows 7, WES7FedoraWind River® Intelligent Device Platfrom XT 2.0
    Dimensions 260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97")Weight: 2.1kg
    Environment Operating temperatures:
    -30°C to 70°C (w/ industrial SSD) with air flow
    -20°C to 50°C (w/ commercial HDD) with air flowStorage temperatures: -35°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration (random):
    1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD)Vibration (SSD/HDD):
    Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier
    US highway truck vibration exposure
    Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
    integrity testShock (SSD/HDD):
    Operating: MIL-STD-810G, Method 516.6, Procedure I, functional
    shock=20g
    Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash
    hazard shock test=75g
    Certifications CE approvalFCC Class AE13 Mark
