车载工业计算机-OBPC-1910

★Intel Atom® processor Bay Trail E3815 (1.46GHz)
★Super slim and ruggedized design
★Built-in 1 x CAN 2.0B, optional SAE J1939/ J1708 module
★Smart power management with Ignition on/off delay via software control and low voltage protection
★Built-in U-blox M8N GPS
★Dual SIM cards for WWAN modules
★Wide range DC input from 9 ~ 36V
★Wide operating temperature -40°C ~ 70°C
★Certified by CE/ FCC/ E13 mark
ꄴ上一个： 车载工业计算机-OBPC-1911
ꄲ下一个： 车载工业计算机-OBPC-1031

  • 产品规格

    CPU Intel Atom® processor Bay Trail E3815, 1.46GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 4GB
    Storage 1 x mSATA1 x SATA DOM
    Expansion 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (mSATA + PCIe)
    Function 1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/BeiDou)Built-in G-sensorTPM2.0

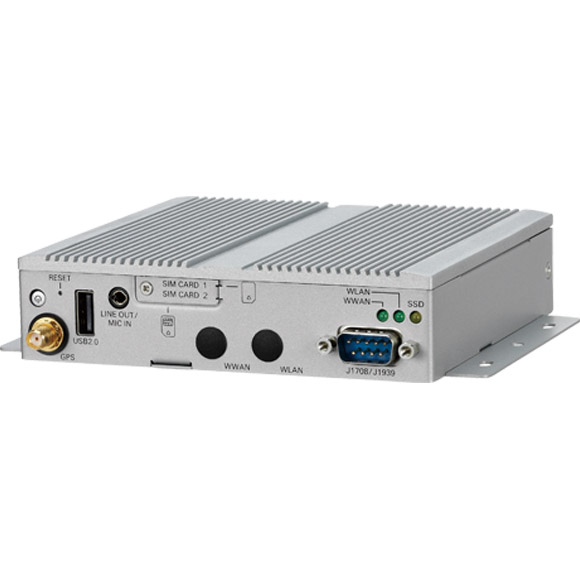

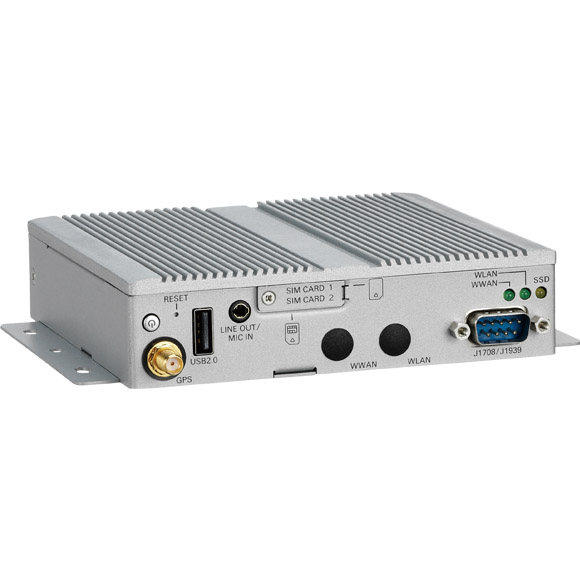

    I/O Interface-Front 1 x power button with LED3 x LED for WWAN, WLAN, SSD1 x Reset button2 x SIM socket (Micro Type) with cover1 x DB9 connector for optional SAE J1939 and J1708 modules1 x Line-out/ MIC-In1 x Type A USB 2.0 compliant host, supporting system boot up3 x antenna hole for GPS/ WWAN/ WLAN

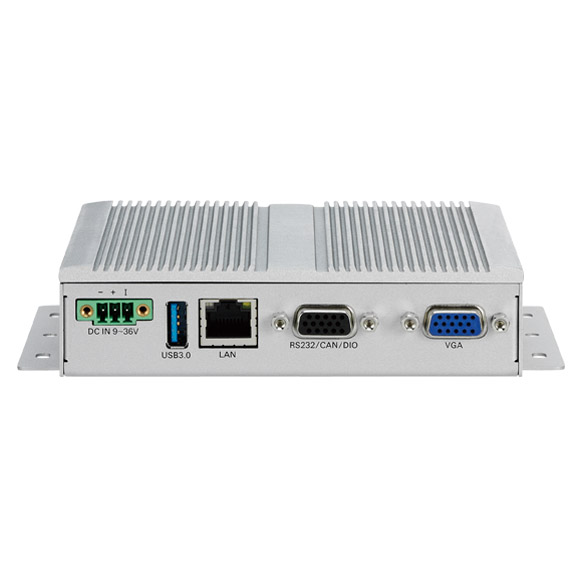

    I/O Interface-Rear 1 x Phoenix connector for Power/GND/Ignition input1 x Type A USB 3.0 compliant host, supporting system boot up1 x RJ45 10/100/1000 Fast Ethernet with LED1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX),1 x CAN 2.0B, 3 x DI, 3 x DO
    Operating System Windows 7, WES7Windows 8, WES8Windows 10Linux (by request)
    Environment Temperature:
    Operating temperatures: -40°C to 70°C
    Storage temperatures: -45°C to 85°C
    Damp Heat Test per EN60068-2-30Humidity:
    IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48HrsVibration:
    IEC 60068-2-64, 2G
    Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
    Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24Shock:
    MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
    Crash hazard: Procedure V, ground equipment=75g
    Dimensions 130mm (W) x 120mm (D) x 32mm (H) (5.12” x 4.72” x 1.26”)Weight: 0.6 kg (1.3 lbs)
    Certifications CE approvalFCC Class BE13 mark
    Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/ off delay time by softwareStatus of ignition and low voltage can be detected by softwareSupport S3/ S4 suspend mode
