车载工业计算机-OBPC-1030

★Intel Atom® x6211E dual-core processor, 6W
★Compact and fanless design
★5G NR and Wi-Fi 6/6E wireless communication options
★Built-in GNSS receiver with optional dead reckoning function
★Built-in 1 x CAN bus 2.0B (optional SAE J1939)
★Wide range DC input from 9~36V
★Smart power management with Ignition on/off delay via software control and low voltage protection
★Dual display outputs and 2.5GbE LAN ports
★1 x mini-PCIe + 2 x M.2 socket expansion
★Certified by CE/FCC/E13 mark
ꄴ上一个： 车载工业计算机-OBPC-1031
ꄲ下一个： 车载工业计算机-OBPC-1021

  • 产品规格

    CPU Intel Atom® x6211E dual-core processor, 1.3GHz/3GHz (burst), TDP 6W
    Memory 1 x 260-pin DDR4 SO-DIMM socket support 3200MHz up to 32GB. Default 2666MHz, 4GBWith In-Band ECC (IBECC)
    Video Output 1 x HDMI 1.4b up to 3840 x 2160@30Hz1 x VGA port 1920 x 1200@60Hz
    Storage 1 x 2.5” SATA 3.0 internal drive bay (9.5mm)1 x mSATA slot (occupied mini-PCIe slot)
    Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external micro-SIM
    GNSS and Onboard Sensor 1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS/Glonass/Galileo/BeidouOptional M8U modules with dead reckoning available1 x 3D accelerometer and 3D gyroscope
    LAN 2-port LAN RJ45, 10/100/1000/2500 Mbps Ethernet, Intel® I225-IT
    Security TPM 2.0: infineon SLB9670VQ2.0 FW7.62

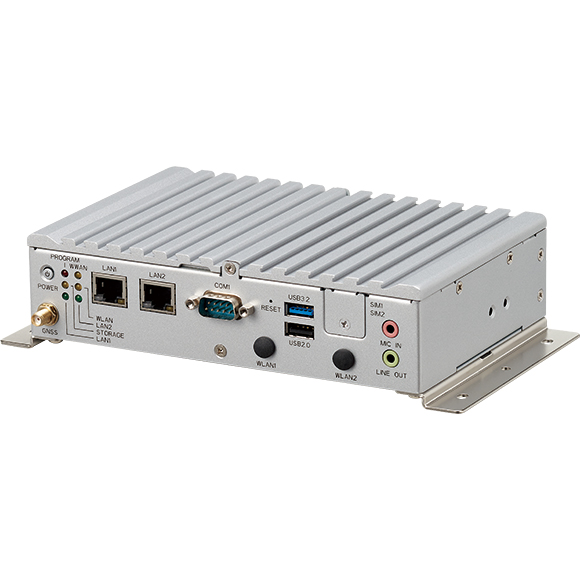

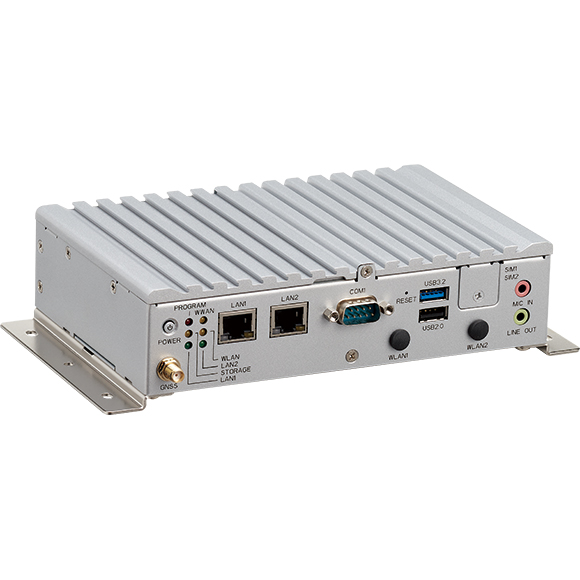

    I/O Interface-Front 6 x LED indicators (including 1 x programmable LED)1 x USB 3.2 Gen 2 type A (5V/0.9A)1 x USB 2.0 type A (5V/0.5A)2 x Externally accessible micro-SIM card sockets with cover1 x Reset button1 x Power button1 x DB9 (COM1) for full RS232/422/4851 x Mic-in, 1 x Line-out2 x LAN RJ45, 10/100/1000/2500 Mbps2 x RP-SMA connector holes for WLAN1 x SMA connector for GNSS

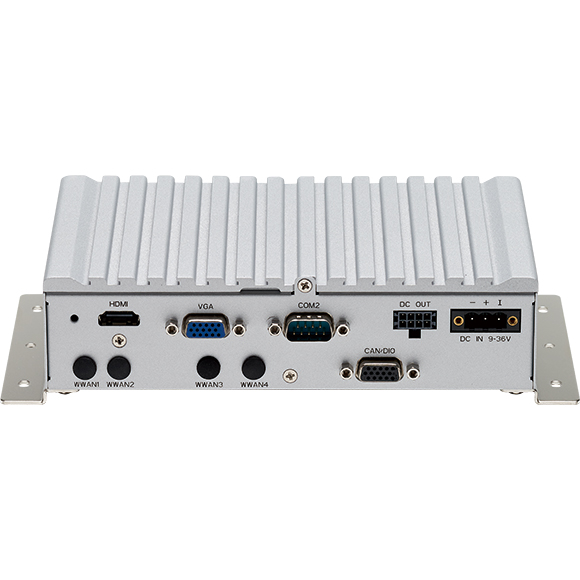

    I/O Interface-Rear 1 x HDMI1 x VGA1 x DB9 (COM2) for full RS232/422/4851 x DB15 (CAN/DIO)
    - 1 x Isolated CANBus 2.0B
    - 5 x DI and 4 x DO1 x 3-pin terminal block for 9V~36VDC1 x Connector (4 x 2) for 12VDC/2A output, reset, power button, RS232 (Tx/Rx)4 x SMA connector holes for WWAN
    Power Management & Software Support Power input 9~36VDCCranking voltage: 6V~9V (< 30 seconds)Reverse protection, OCP & UVPSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by software10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
    Operating System Windows 11/Windows 10/Linux
    Dimensions 185mm (W) x 120mm (D) x 45mm (H)
    Weight 1.20kg
    Environment Operating temperatures
    - -40°C to 70°C (w/ 6W TDP CPU, industrial SSD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 90% (non-condensing)Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
    - Operating: MIL-STD-810H, Method 514.8C, Procedure 1,Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity testShock (SSD)
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functionalshock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
    Certifications CEFCC Class AE13 mark
