车载工业计算机-OBPC-1021

★Intel Atom® x5-E3940 processor quad core 1.6GHz
★Built-in U-blox M8N GPS, optional dead reckoning support
★Built-in CAN 2.0B. optional OBD2 SAE J1708/ SAE J1939
★2 x POE support, total 60W (VTC1021-C2K only)
★2 x RJ45 10/100/1000 Fast Ethernet with LED
★3 x DI and 3 x DO support
★Smart power management with Ignition on/ off delay via software control and low voltage protection
★Variety of wireless communication options
★Certified by CE/FCC/E13 mark
ꄴ上一个： 车载工业计算机-OBPC-1030
ꄲ下一个： 车载工业计算机-OBPC-1020

  • 产品规格

    CPU Intel Atom® processor Apollo Lake E3940, 1.6GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
    Storage 1 x 2.5” SATA 3.01 x mSATA for full-size mini-PCIe socket
    Expansion 1 x Full size mini-PCIe socket (USB 2.0+ PCIe + mSATA)1 x Full size mini-PCIe socket (USB 2.0+ PCIe)1 x Full size mini-PCIe socket (USB 2.0, optional USB 3.0)
    Function 1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/Beidou)Built-in G-sensorTPM2.0
    I/O Interface-Front 1 x Power button with LED4 x LED for WWAN, WLAN, SSD, GPS1 x Line-out/MIC-in1 x Reset button1 x DB9 for fully RS2322 x Type A USB 2.0 compliant host, supporting system boot up2 x External accessible SIM card socket (selectable) with cover1 x DB9 for Expansion Port (Option)2 x RJ45 PoE (including 2 x PoE LED light, VTC1021-C2K only)

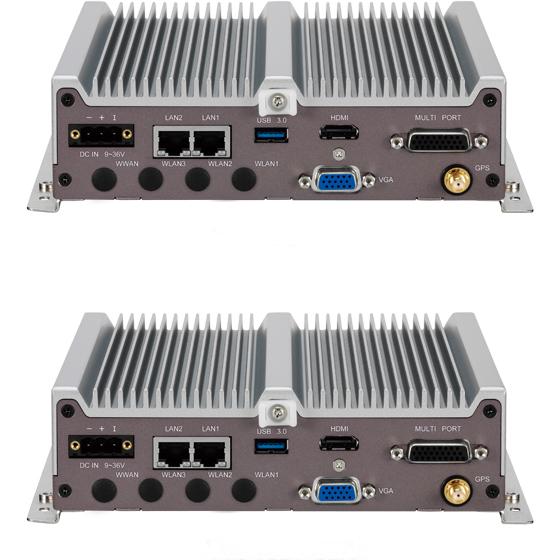

    I/O Interface-Rear 1 x Phoenix connector for power (9~36VDC)/GND/ignition input1 x Type A USB 3.0 compliant host, supporting system boot up2 x RJ45 10/ 100/ 1000 fast Ethernet with LED1 x DB15 VGA, resolution up to 1920 x 1080 @60Hz1 x HDMI port, resolution up to 3840 x 2160 @30Hz1 x DB26 port
    - 1 x CAN Bus 2.0B
    - 1 x RS232 Tx/Rx
    - 1 x GPS DR (option)
    - 3 x DI and 3 x DO
    - 1 x RS422/RS485
    - 12V/2A DC output
    - GND5 x Antenna holes for GPS/WWAN/WLAN
    Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/ off delay time by softwareStatus of ignition and low voltage can be detected by softwareSupport S3/ S4 suspend mode
    Operating System Windows 10LinuxYOCTO (by request)
    Dimensions 180 mm (W) x 180 mm (D) x 50 mm (H) (7.09” x 7.09” x 1.97”)Weight: 1.7 kg
    Environment Temperature:
    Operating temperatures:
    -40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures:
    -40°C to 85°C with air flow
    Damp Heat Test per EN60068-2-30Humidity: IEC60068-2-3, Damp Heat Steady State Test, 40C, 95%, 48HrsVibration: IEC 60068-2-64, 2G for SSD or 0.5G for HDD
    Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
    Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24Shock:
    MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
    Crash hazard: Procedure V, ground equipment=75g
    Certifications CE approvalFCC Class AE13 Mark
