车载工业计算机-OBPC-1020

★Intel Atom® x5-E3930 processor dual core 1.3GHz
★Compact and fanless design
★Built-in GPS receiver with optional dead reckoning function
★Variety of wireless communication options
★Built-in CAN bus 2.0B. Optional OBD SAE J1939
★Wide range DC input from 9~36V
★Smart power management with Ignition on/off delay via software control and low voltage protection
★Certified by CE/FCC/E13 mark
★5 x RS232 and 2 x RS485
ꄴ上一个： 车载工业计算机-OBPC-1021
ꄲ下一个： 车载工业计算机-OBPC-1011

  • 产品规格

    CPU Intel Atom® x5-E3930 processor dual core 1.3GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
    Expansion 1 x mini-PCIe socket (USB)1 x mini-PCIe socket (PCIe + USB + mSATA)
    Function 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead ReckoningBuilt-in G-sensorBuilt-in TPM
    I/O Interface-Front 1 x power button4 x LED indicators for status, storage, WLAN and WWAN1 x system reset button2 x type A USB 3.0 compliant host, supporting system boot up1 x DB-15 VGA1 x HDMI1 x SIM card socket

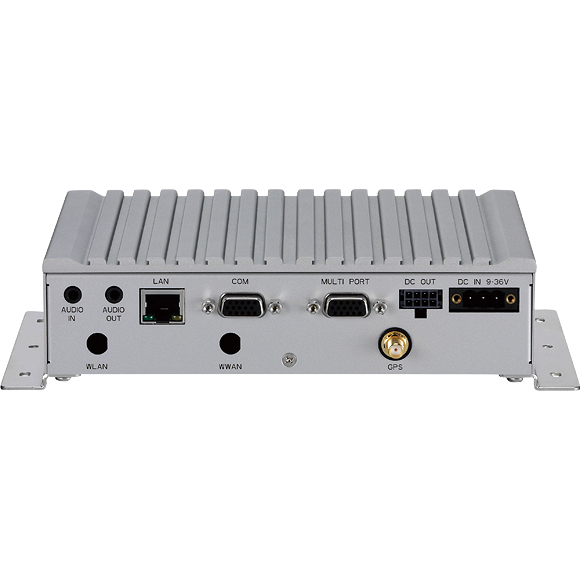

    I/O Interface-Rear 1 x 9~36VDC input with Ignition and 20W typical power consumption1 x 12V/2A DC output, SMBus, power button1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet1 x Audio-in, 1 x Audio-out1 x DB9 COM port for 4 x RS232 Tx/Rx and 2 x RS4851 x DB15 for multi port
    - 1 x CAN2.0 (optional SAE J1939)
    - 1 x RS232 Tx/Rx
    - 1 x odometer and direction for optional DR
    - 5 x programmable DIO
       Input voltage (internal type): 5VDC TTL (default)
       Input voltage (source type): 3~24VDC
       Digital output (sink type): 5VDC TTL (default), max current: 20mA
       Digital output (source type): 3~24VDC3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
    Expandable Storage 1 x 2.5” SSD SATA 3.01 x mSATA
    Operating System Windows 10Linux YOCTO (by request)
    Power Management Selectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/off ignition, software detectableSupport S3, S4 suspend mode
    Dimensions 185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8")1 kg (2.20 lbs)
    Construction Aluminum top case with sheet metal
    Environment -40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration:Vibration (SSD): 2g @5~500 Hz
    Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
    Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity TestShock (SSD):
    Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
    Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
    Standards/Certifications CE approvalFCC Class AE13 mark
