车载工业计算机-OBPC-1011

★Intel Atom® processor bay trail E3825 (1.33GHz)
★Compact and fanless design
★Built-in 1 x CAN 2.0B, optional SAE J1939/J1708 module
★Dual SIM cards with cover for WWAN modules
★Smart power management with Ignition on/off delay via software control and low voltage protection
★2 x POE support, total 30W
★ultraONE+ technology support 10M video transmission, collocate with VMD 2003 (VTC1011-C2VK only)
★Wide range DC input from 9~36V
★Wide operating temperature -40°C~70°C
★Certified by CE/FCC/E13
ꄴ上一个： 车载工业计算机-OBPC-1020
ꄲ下一个： 车载工业计算机-OBPC-2100

  • 产品规格

    CPU Intel Atom® processor bay trail E3825, 1.33GHz
    Memory 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz upto 8GB. Default 4GB
    Storage 1 x 2.5" SSD SATA 2.01 x mSATA
    Expansion 1 x Full size mini-PCIe socket (USB 2.0 or USB3.0 (option))1 x Full size mini-PCIe socket (mSATA + PCIe + USB 2.0)
    Function 1 x u-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/Beidou)Built-in G-sensorTPM2.0
    I/O Interface-Front 1 x Power button with LED2 x SIM socket (Micro type) with cover1 x DB9 for RS232 Full2 x Type A USB 2.0 compliant host, supporting system boot up1 x HDMI1 x Reset button2 x LED for POE status2 x RJ45 POE4 x LED for STATUS, SSD, WLAN, WLAN1 x DB9 for ultraONE+ technology support (VTC1011-C2VK only)2 x antenna hole for WWAN

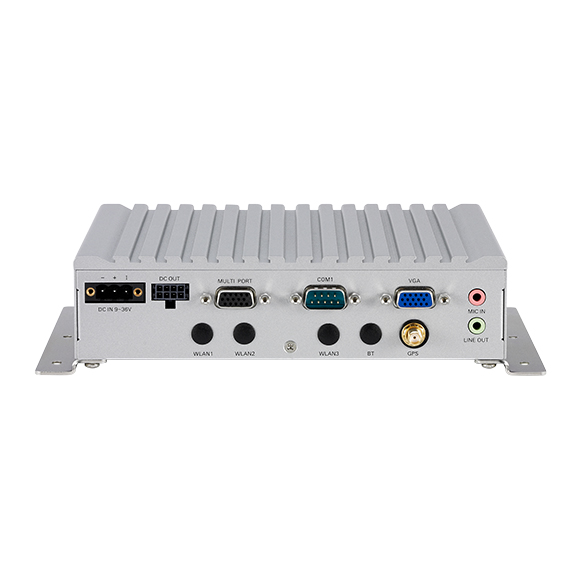

    I/O Interface-Rear 1 x Phoenix connector for power/GND/Ignition input1 x 4 x 2 connect for 12V/2A DC output, UART, power button1 x DB15 multi-port for 1 x CAN 2.0B, 1 x RS232 (Tx/Rx)/RS422/
    RS485, 8 x DIO1 x DB9 for RS232 full1 x DB15 VGA1 x Mic-in1 x Line-out5 x Antenna hole for WLAN/BT/GPS
    Operating System Windows 7, WES7Windows 8, WES8Windows 10Linux (by request)
    Dimensions 185mm (W) x 150.9mm (D) x 45mm (H) (7.28" x 5.94" x 1.77")Weight: 1.3kg (2.9lbs)
    Environment Temperature:
    Operating temperatures:
    -40°C to 70°C (w/o PoE), -40°C to 60°C (w/ PoE)
    Storage temperatures: -45°C to 85°C
    Damp Heat Test per EN60068-2-30Humidity:
    IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48HrsVibration:
    IEC 60068-2-64, 2G
    Operating: MIL-STD-810G, 514.6C procedure 1, category 4
    Storage: MIL-STD-810G, 514.6E procedure 1, category 24Shock:
    MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g
    Crash hazard: procedure V, ground equipment=75g
    Standards/Certifications CE approvalFCC Class AE13
