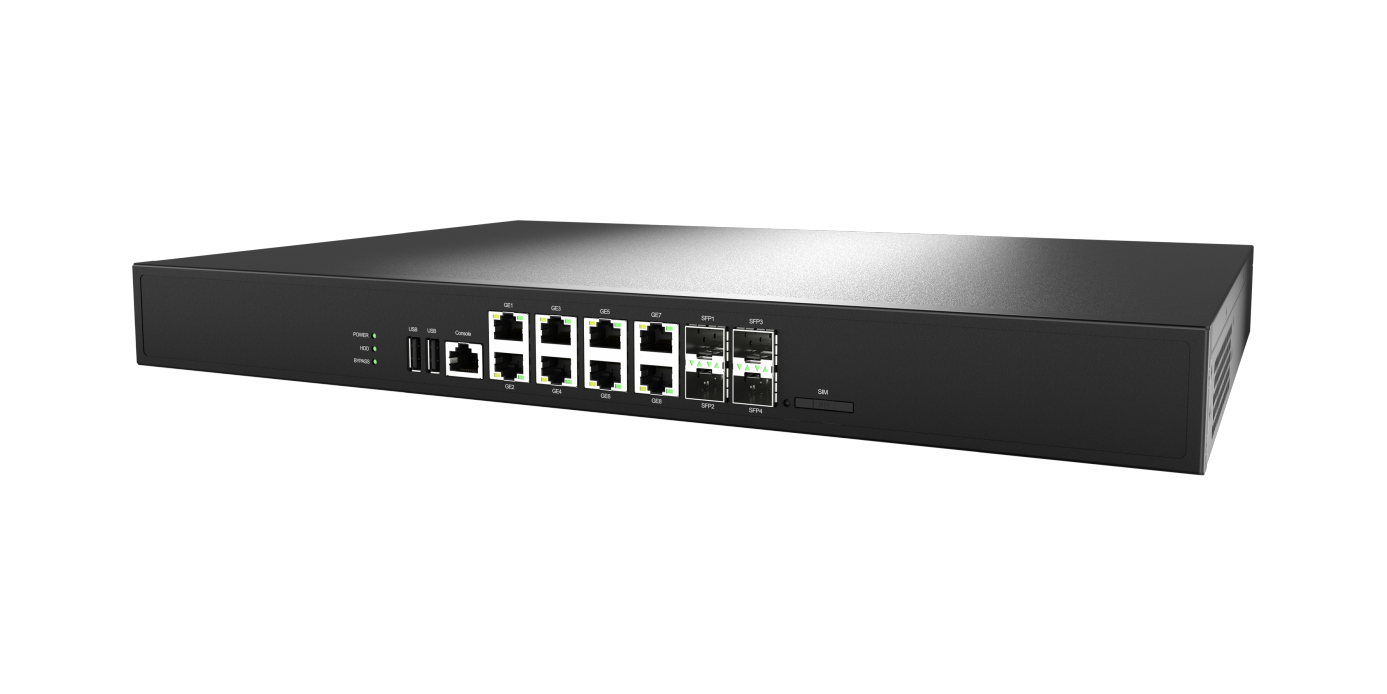

工业网络安全平台-WPC-1132
★提供1个DDR4内存插槽扩展
★支持内存和eMMC板贴
★提供1个M.2 接口，4G/5G扩展
★提供1个MINI PCIE ，支持WIFI扩展
★提供1个M.2接口，支持SATA SSD扩展
★提供6个2.5 GbE RJ45 LAN Ports
★提供2个1 GbE SFP/RJ45 combo Ports (auto-negotiation)
★提供2个10 GbE SFP+ LAN Ports
★支持WIN10/Linux系统
-
规格参数
主控
CPU
Intel Atom C3338R
Intel Atom C3558
Intel Atom C3758
Core Number
2C
4C
8C
Frequency
2.20 GHz
2.20 GHz
2.20 GHz
BIOS
AMI UEFI BIOS
内存
类型
1 x So-DIMM DDR4 Or DDR4 Memory
1 x So-DIMM DDR4 And DDR4 Memory
最大容量
16GB DDR4
32GB DDR4
32GB DDR4
ECC Option
不支持
存储
eMMC
eMMC 32GB default onboard
mSATA
1 x M.2 slot (M.2 SATA)
HDD
1 x SATA Port
网络
Controller
1 x Marvell 88E1543 for 2 combo ports
6 x Intel i226 for 2.5GbE RJ45 LAN ports
1 x Marvell 88E1543 for 2 combo ports
6 x Intel i226 for 2.5GbE RJ45 LAN ports
2 x 10 GbE SFP+
接口
6 x 2.5GbE RJ45
2 x 1GbE SFP/RJ45
6 x 2.5GbE RJ45；2 x 1GbE SFP/RJ45
2 x 10GbE SFP+
扩展
Mini-PCIe
1 x Full-size Mini-PCIe
M.2
1 x m.2 3052 B-key for 5G module (compatible with m.2 3042 B-key for LTE/4G module)
IO接口
USB
2 x USB2.0 type A on rear
Serial
1 x Console port (RJ45 connector)
LED Indicator
Rear IO: power, HDD, BYPASS
其他
1 x DC jack with lock on rear；1 x Power button with LED indicator；1 x System Reset button
电源
功率/类型
36W 电源适配器
60W 电源适配器
输入
100~240 VAC
环境
工作温度
0 ~ 40° C (32 ~ 104° F)
储存温度
-20 ~ 60 °C (-40 ~ 140 °F) and 40° C @5~95% RH non-condensing
软件功能
Linux(CentOS,Ubuntu)
-
-
