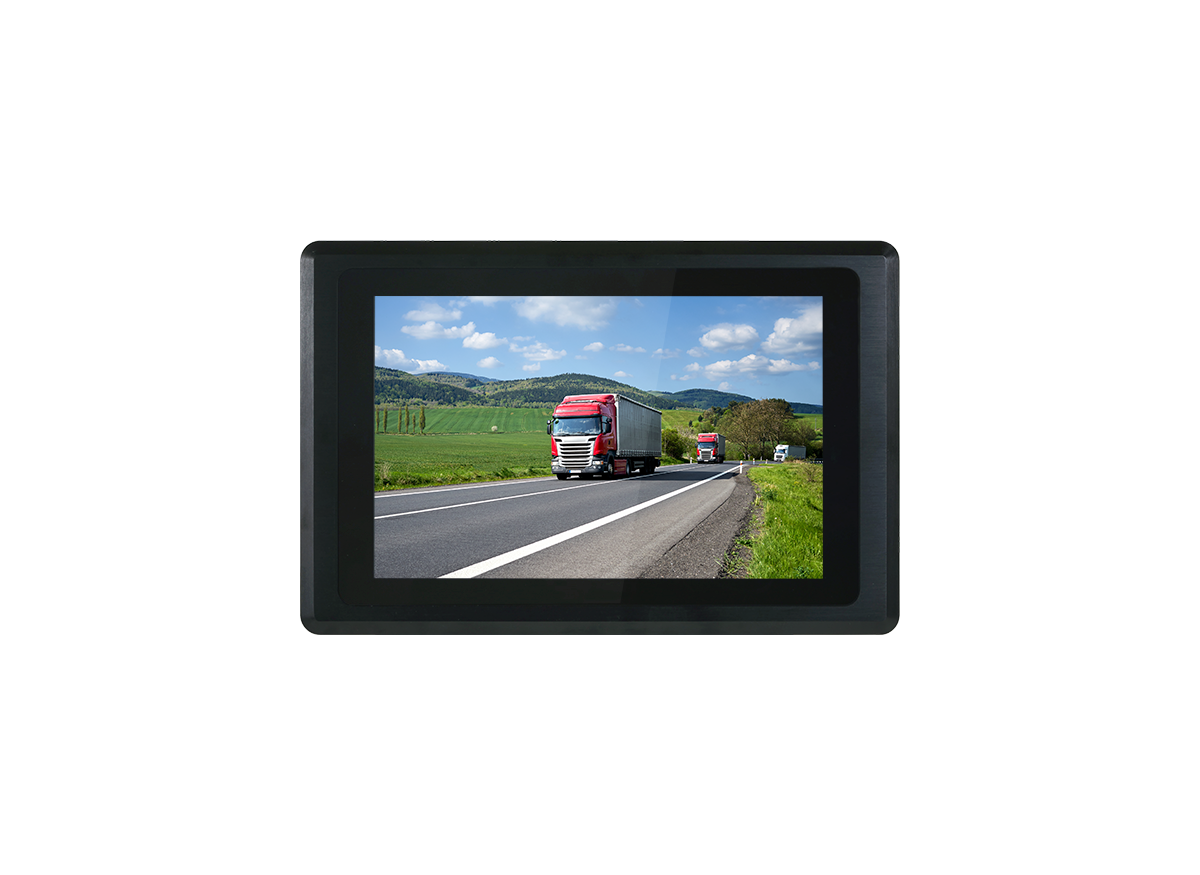

车载工业计算机-EPC-1239
★Supports Ignition Control and Delay On/Off Function
★IP65 Front Panel Protection
★VESA/Panel Mount
★Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
★10.1" 1280x800 TFT LCD Panel with Touch Screen
★15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel® Atom™ Processor E3800 Series, BGA 1170
Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Atom™ Processor E3825, Quad Core, 1M Cache, 1.33GHz, 6W内存
2GB/4GB ECC Memory Down
Single Channel DDR3L 1333MHzBIOS
AMI SPI 64Mbit
显示和触控屏幕
屏幕
10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen
亮度
500 cd/m²
对比度
800:1
背光寿命
50,000 hours
显示
控制器
Intel® HD Graphics
特性
DirectX 11, OCL 1.2, OGL 4.0
H.264, MPEG2, MVC, VC-1, WMV9, VP8 (supported version dependent on OS)显示器
1 x HDMI
1 x VGA
HDMI: resolution up to 1920x1080 @ 60Hz储存
外插/内插
1 x 2.5" SATA 2.0 Drive Bay
1 x micro SD (available upon request)
Onboard eMMC (available upon request)扩充
界面
1 x Full-size Mini PCIe (PCIe/USB)
1 x Full-size Mini PCIe (mSATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM Socket音讯
音讯编译码器
Realtek ALC886 5.1-channel
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Power LED

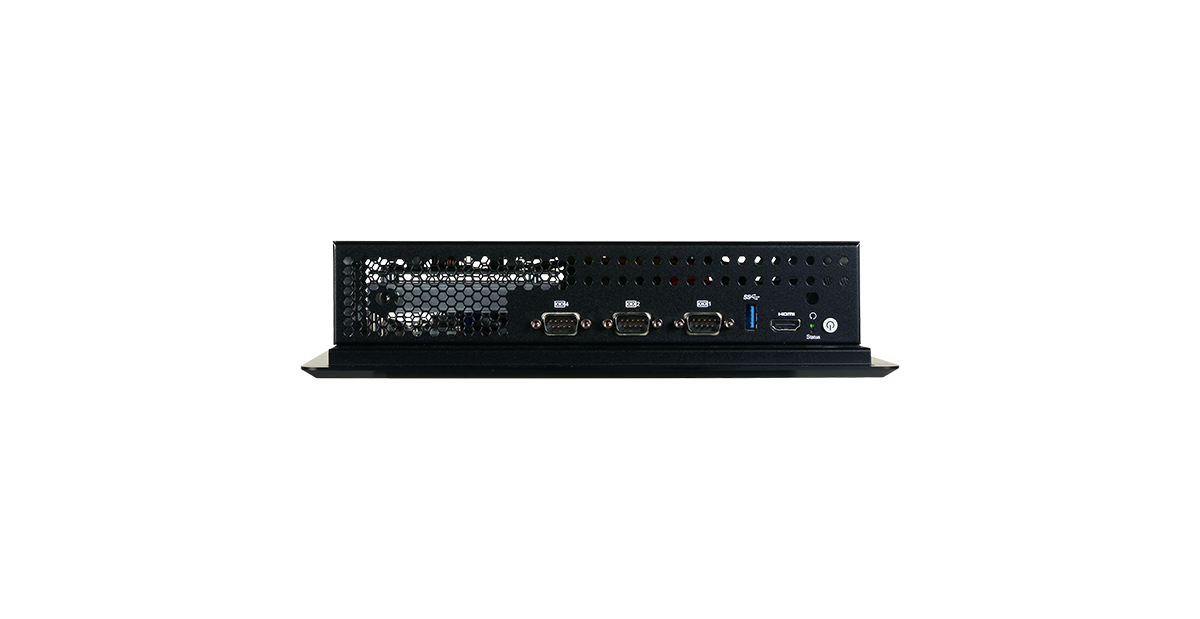

1 x HDD LED上板输入/输出
串口
3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
USB
1 x USB 3.0 (type A)
显示
1 x HDMI
Wi-Fi 天线
2 x Antenna Hole
按键
1 x Power Button

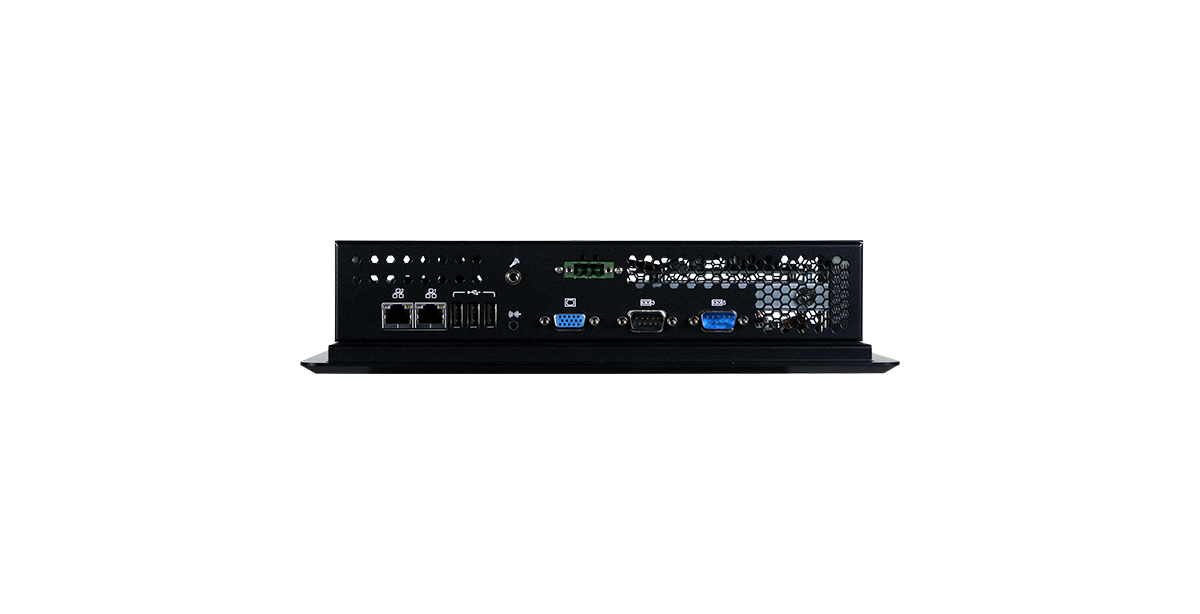

1 x Reset Button底板输入/输出
以太网络
2 x GbE (RJ-45) (10/100/1000Mbps)
串口
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)USB
3 x USB 2.0 (type A)
音源
1 x Line-out
1 x Mic-in监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
Wide Range 9~36V
In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control端口
3-pin Terminal Block (VCC/IGN/GND)
支持操作系统
支持操作系统
Windows 7 (32bit/64bit)
Windows 10 IoT Enterprise (32bit/64bit)
Linux环境指标
运作温度
-20 to 60°C
储存温度
-30 to 80°C
相对湿度
5 to 85% RH (non-condensing)
机械结构
结构
Aluminum Front Bezel
IP等级
IP65 Front Panel Protection
安装方式

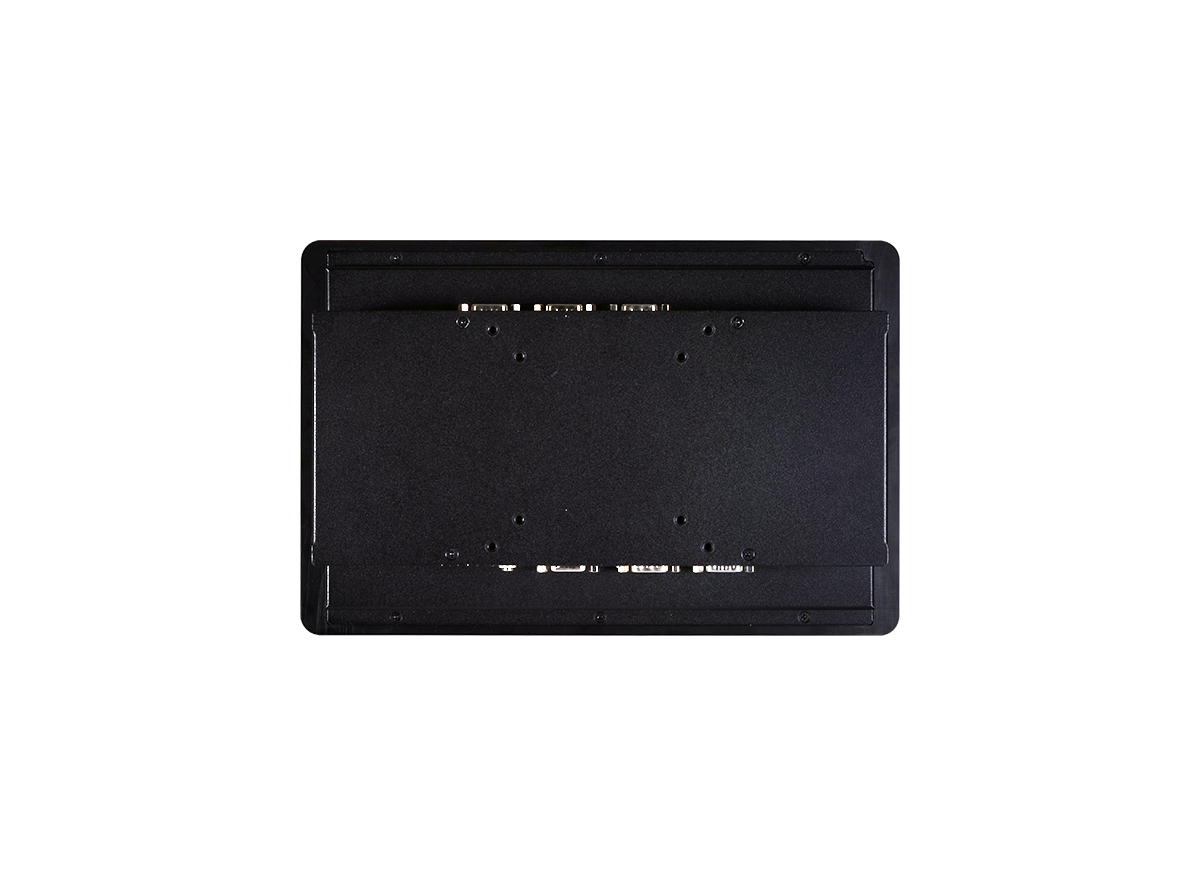

Panel/VESA Mount
尺寸 (宽 x 高 x 深)
294mm x 193mm x 65mm
重量
1.7 Kg
安规认证
冲击测试
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms抗振动测试
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min认证
CE, FCC Class A, E-Mark (E13)
-
-
