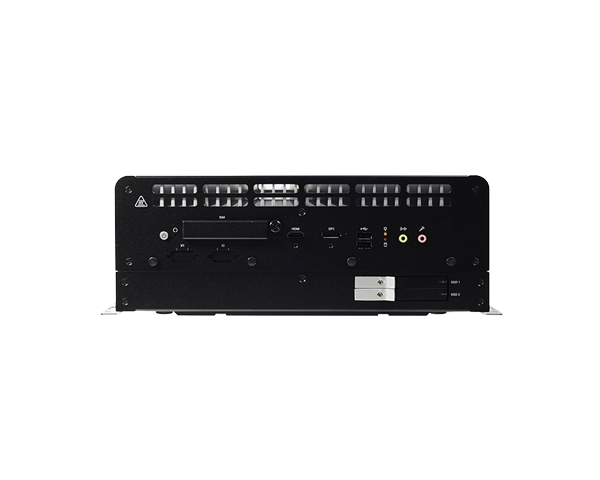

车载工业计算机-EPC-1236
★4 x 802.3af PoE ports
★AI accelerated: up to 150W GPU MXM module supported
★Multiple expansion slots for 5G cellular supported
★Extended operating temperature: -20°C to 70°C
★15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th/9th Generation Intel® CoreTM Processors, LGA 1151
- Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W with Q370PCH
- Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W with Q370PCH
(Other CPU support upon request)芯片组
Intel® Q370 Chipset
内存
Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
显示器
1 x VGA (display out by DB-15 connector)
1 x HDMI (with screw lock)
1 x DP++ (standard display port connector DIP type with screw lock)
Support NIVIDIA Optimus technology
VGA: resolution up to 1920x1200@60Hz
HDMI: resolution up to 4096x2160@24Hz
DP++: resolution up to 4096x2304@60HzAI 加速器
界面
MXM Type A, B, C on x16 PCIe 3.0
控制器
Nvidia Quadro embedded/ Geforce series
储存
外插
2 x Swappable 2.5” storage bays with lock.
Supports 7mm SSD devices内插
1 x M.2 2280 M key supports SATA SSD
扩充
界面
1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket
- SIM card can all be external accessible
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)音讯
音讯编译码器
Realtek ALC888
界面
1 x Mic-in
1 x Line-out以太网路
控制器
5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)LED
指示灯
1 x Power LED (green)
5 x Storage LED (red)
4 x PoE LED前板输入/输出
PoE
4 x PoE ports at RJ45 or M12 X-coded connectors
Support 802.3af, max 15.4W (PSE side)
NOT support Wake on Lan以太网络
2 x GbE (RJ-45) support Wake on Lan
串口
2 x High speed full RS-232/422/485 (DB-9)
2 x RS-232/422/485 (pin headers)USB
4 x USB 3.0 (type A)
显示
1 x VGA display out by DB-15 connector
DIO
1 x 8-bit isolated DI port by DB-9 connector
1 x 8-bit isolated DO port by DB-9 connector
2KV isolationPower-in
1 x 9pins 5.0mm terminal block
背板输入/输出
USB
2 x USB 2.0 (type A)
显示
1 x HDMI
1 x DP++音源
1 x Mic-in
1 x Line-out
by 3.5mm 3P Phone Jack按键
1 x Power button
1 x Reset button天线
7 x SMA type antenna hole for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
SIM
3 x SIM sockets (external accessible with cover)
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
+12VDC (9~36V), +24VDC(14.4~33.6)
+12V and +24V compliant to eMark with power ignition function
Reverse polarity protection端口
9-pin 5.0mm terminal block
支持操作系统
微软
Windows 10 IoT Enterprise 64 Bit
Linux
Ubuntu 18.04
环境指标
运作温度
-20°C to 70°C with when CPU+GPU<100W without fan
-20°C to 60°C with when CPU+GPU<160W without fan
-20°C to 70°C when CPU+GPU<190W with active fan
CPU throttling at high temperature is acceptable储存温度
-40°C to 85°C
相对湿度
10% to 90% (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
340.5 x 132 x 223 mm (3U height, excluding rubber foot)
重量
9.85 kg
安规认证
冲击测试
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)
抗振动测试
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
认证
CE, FCC, UKCA, RoHS, E-Mark
-
-
