车载工业计算机-EPC-1235
★ARM-Based in-vehicle system: Support Yocto Linux 2.5 and Android 9.0
★6 axis IMU (3 Accelerometer + 3 Gyroscope)
★Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1, 1 Micro USB (OTG)
★Wide voltage: 9~36V vehicle power input with ACC/IGN function
★Wide temperature: -20°C~70°C operation without active fan
-
系统
处理器
NXP i.MX8M Quad, Cortex-A53 1.3GHz (by model)
NXP i.MX8M Dual, Cortex-A53 1.3GHz (by model)内存
On board memory 2GB/4GB (by model)
Single channel LPDDR4 up to 3200 MHz显示
显示器
1 x HDMI
resolution up to 1920x1080 @ 60 Hz储存
外插
Micro SD card slot
内插
eMMC 5.1 16GB on board, support up to 64GB (optional)
扩充
M.2
1 x M.2 2242/3042 B Key (USB 3.1 Gen1), Nano SIM Slot support
1 x M.2 2230 E Key (PCIex1/USB2.0)LED
指示灯
1 x Status LED
傳感器
傳感器
6 axis IMU (3 Accelerometer + 3 Gyroscope)

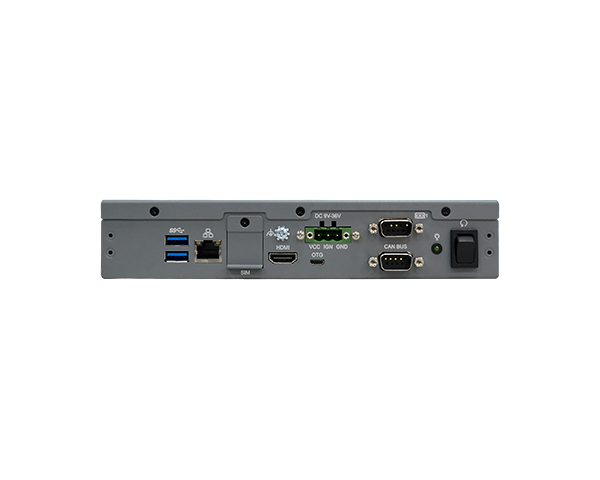

前板输入/输出
以太网络
1 x Giga LAN, RJ-45
串口
1 x RS-232/422/485 (COM1)
USB
2 x USB 3.0, type A
1 x OTG, micro USB显示
1 x HDMI
音源
with Amplifier to support 2W speaker (optional)
1 x Line-out & 1 x MIC-in (internal header)按键
1 x Power reset button
CANBus
1 x CANbus, DB-9

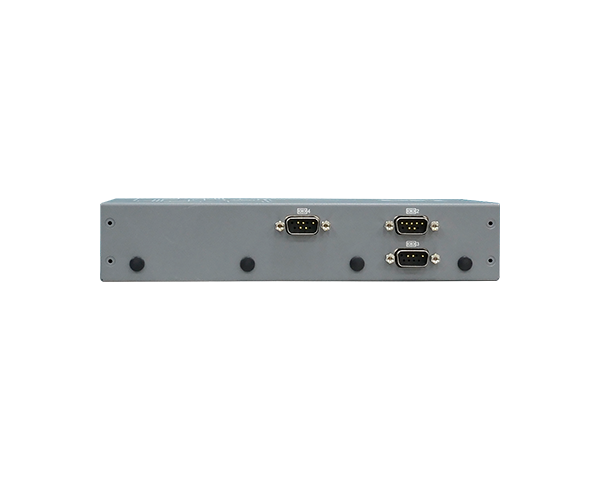

背板输入/输出
串口
1 x RS-232(TX,RX,RTS,CTS) (COM2)
2 x RS-232(TX,RX) (COM3/COM4)天线
4 x Antenna holes for LTE 4G, WiFi and GPS
电源
类型
Wide range 9~36V with ACC/IGN function
端口
3-pole terminal block
支持操作系统
Linux
Yocto Linux 2.5
安卓
Android 9.0 (option)
环境指标
运作温度
-20 to 70°C
储存温度
-40 to 85°C
相对湿度
10 to 90% RH (non-condensing)
机械结构
结构
Sheet Metal
安装方式
DIN-Rail mount
Wall mount尺寸 (宽 x 高 x 深)
220 x 122 x 43mm
重量
1.9kg
颜色
Black
安规认证
冲击测试
Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
抗振动测试
Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
认证
CE, FCC, E-Mark (E24), RoHS, UKCA
-
-
