车载工业计算机-EPC-1233
★High Performance Fan-less In-Vehicle System
★4 x PoE or 2 x 10G SFP+ Ports
★1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
★2KV Isolated 16bits DIO ports
★Supports M.2 B key 3042/3052 5G-NR module with dual SIM
★OOB management support upon request
★15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
Q470E/W480E
Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
H420E
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz)
芯片组
Intel® Q470E/W480E/H420E Chipset
内存
Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor onlyBIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 630 (processor integrated)
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9显示器
Support DP++/DP 1.4
Resolution up to 4096x2304 @60Hz for DP
1 x HDMI with lock hole
2 x DP ports with lock hole三重显示
1 HDMI + 2 DP++
储存
外插
2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1内插
1 x M.2 2280 M Key slot, supports 2242, 2260 & 2280 devices and NVME SSD
PCIe x4 & SATA signal, support boot up function音讯
音讯编译码器
Realtek ALC888
界面
1 x Mic-in and 1 x Line-in
以太网路
控制器
1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210ITLED
指示灯
1 x Storage Activity (Red)
1 x Power Status (Yellow)
2 x Programmable general purpose (Green, Blue)前板输入/输出

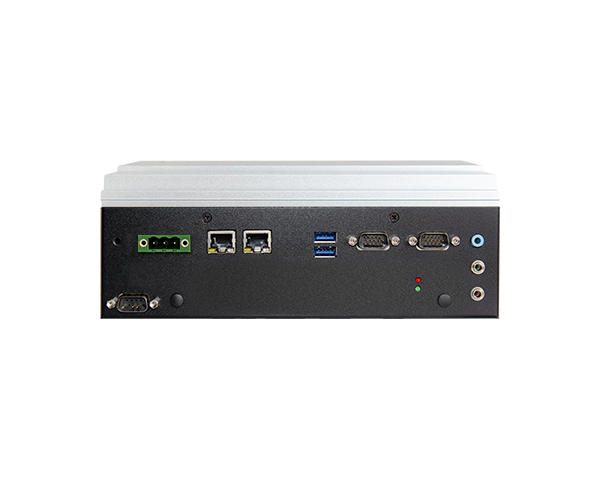

以太网络
2 x RJ45 GbE ports
串口
1 x DB-9 RS232 ports (COM 5)
USB
4 x USB 3.1 Gen2 (2 x USB 3.1 Gen2 only for H420E PCH)
音源
1 x Line-out, 1 x Mic-in and 1 x Line-in with 3.5mm audio jacks
DIO
Q470E/W480E
2 x Isolated DIO port by 2 x DB-15 female connectors
Supports 8bit DI & 8 bit DO with 2KV isolation
天线
2 x antenna holes
DC in
3 pin terminal block connector
带外管理
Optional RJ45 port for OOB management
PoE/ 10G
Q470E/W480E

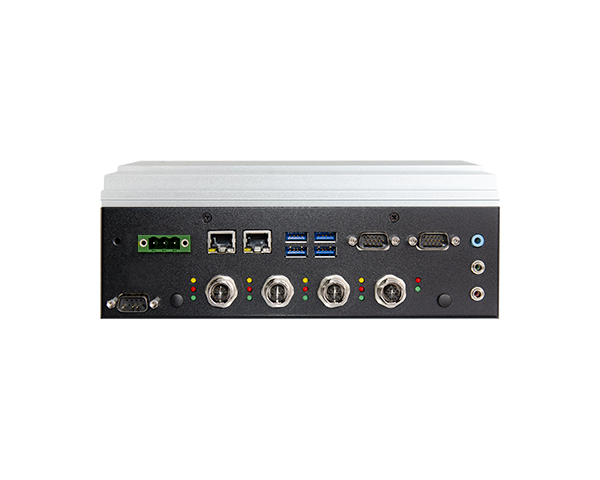

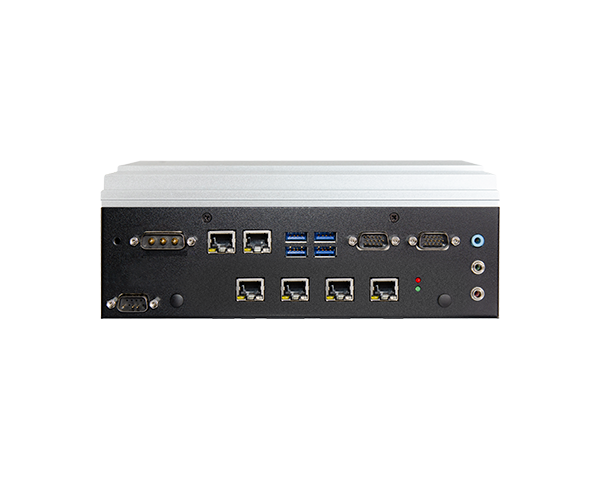

4x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or
2x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller
背板输入/输出
串口
4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)
USB
4 x USB 3.1 Gen2
显示
2 x DP++ ports
1 x HDMI port按键
1 x Power button
1 x Reset button切换
2-pin remote switch
天线
2 x antenna holes
SIM
3 x accessible SIM slots with cover bracket
CANBus
2 x DB-9 ports for CAN bus (optional)
侧面输入/输出
天线孔
2 x antenna holes on right side
2 x antenna holes on left side内部输入/输出
串行端口
1 x 2x5 pin block header for RS232
Mini PCIe
1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus moduleM.2
Total 3 x M.2 slots
1 x 2230 E-key slot (PCIe x1 & USB2.0)
Q470E/W480E
1 x 3042/3052 B-key (USB3.0 & PCIex1) with dual SIM slots on faceplate
1 x 2242/2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe
H420E
1 x 3042/3052 B-key (USB3.0 only) with dual SIM slots on faceplate
1 x 2242/2280 M-Key-slot (SATA only)
冷却
风扇
Passive cooling
安全性
信赖平台模块
Q470E/W480E
Supports dTPM2.0 by default (disabled by BIOS setting)
Optional fTPM2.0 supported
Hardware Monitor
重力感应器
Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep电源
类型
Q470E/W480E
3pin 3W3 connector
H420E
3 pin terminal block
供应
Wide Range 9~50VDC with power management (on/off delay) and ignition
支持操作系统
微软
Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SWLinux
Ubuntu Linux 20.04
环境指标
运作温度
-20°C to 70°C
without turbo boost and throttling is expected储存温度
-40°C to 85°C
相对湿度
10% to 95% (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
235 x 87.5 x 221mm ( mounting bracket excluded )
重量
5.5 kg
颜色
Black and Silver
安规认证
冲击测试
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Tested by SSD, HDD is not support)
抗振动测试
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
认证
FCC, E-Mark
-
-
