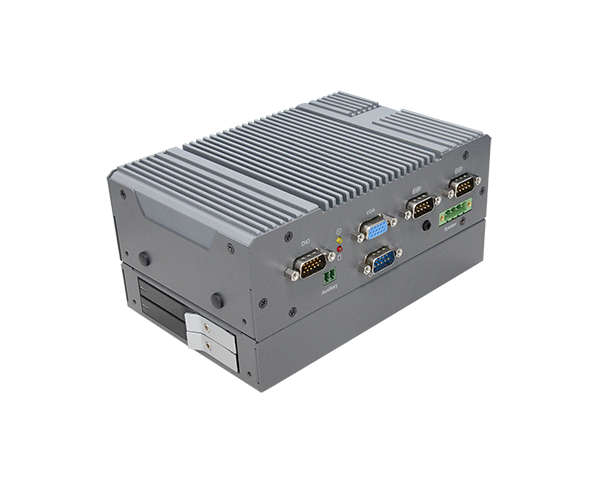

车载工业计算机-EPC-1230

★Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor
★ITxPT certified in vehicle computing system with compact and fanless design
★Build-in OOB to support remote management
★Build-in 9 axis sensor for driver detection within fleet management
★2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules
★Build-in Audio Amp to driver 10W speaker
★2.5KV Isolated 8bits DIO ports
★Wide voltage: 9~36V vehicle power input with ACC/IGN function
ꄴ上一个： 车载工业计算机-EPC-1231
ꄲ下一个： 车载工业计算机-EPC-1229

  • 系统



    处理器

    Intel® Atom x7000E processors (Code Name : Amston Lake)
    Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
    Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
    Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

    内存

    4GB/8GB LPDDR5 5200 Memory down

    BIOS

    AMI SPI 64Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    Execution Units: Up to 32 Eus
    3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux)
    Precision: FP32, FP16, INT8
    Compute: OpenCL 3.0

    显示器

    1 x HDMI 1.4b (resolution up to 4096x2160 @ 24Hz)
    1 x VGA (resolution up to 1920x1200 @ 60Hz)

    储存

    外插

    2 x swappable 2.5" SATA drive bays (option)

    内插

    eMMC 64GB (Removeable)

    扩充

    界面

    1 x M.2 2230 A+E key (USB 2.0/PCIe)
    1 x M.2 3042/3052 B key (USB 3.0/PCIe) with SIM
    1 x M.2 2242/2280 B+M key (PCIe/SATA)
    2 x Mini-PCIe (1 Half; 1 Full) (USB 2.0)

    以太网路

    控制器

    2 x Intel Ethernet controller i210 GbE

    界面

    2 x RJ45 GbE ports

    全球卫星导航系统

    全球卫星导航系统

    Support GPS, QZSS, Gallileo, GLONASS, BeiDou by u-blox NEO-M9N
    Dead reckoning support upon request

    LED

    指示灯

    1 x Power LED
    1 x Storage LED
    2 x Programmable LED (Green, Blue)

    傳感器

    傳感器

    SENSOR Sensor 9 axis IMU (3 Accelerometer + 3 Gyroscope + 3 Magnetometer)

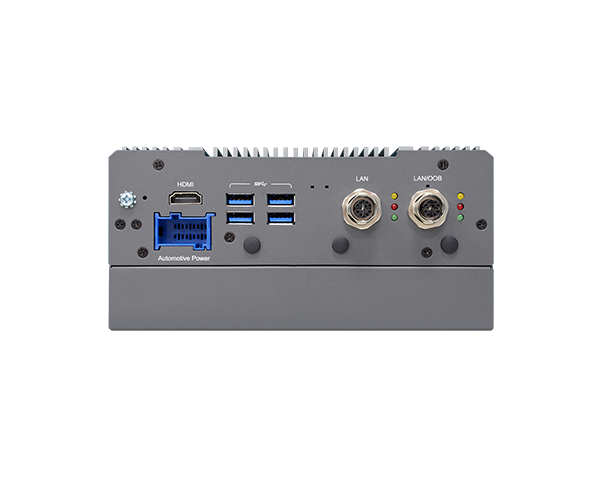

    前板输入/输出

    以太网络

    2 x GbE (M12 X-code)
    1 share with OOB

    USB

    4 x USB 3.2 type A

    显示

    1 x HDMI

    按键

    1 x Reset button

    天线

    3 x Fakra antenna holes

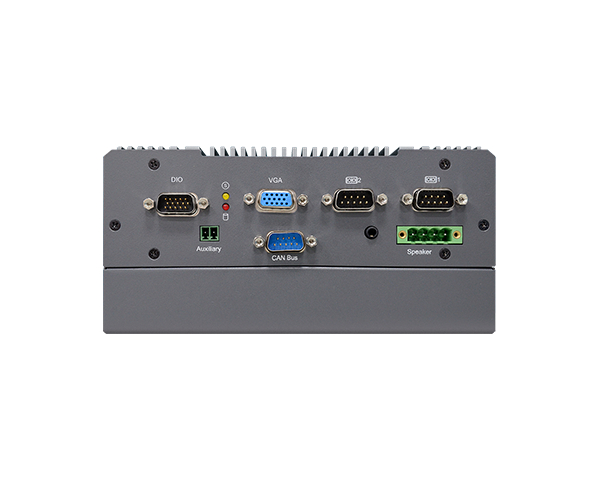

    背板输入/输出

    串口

    2 x RS-232/422/485 (DB9-M)

    DIO

    Isolated 8 bits DIO with 2.5KV isolation (DB15-M)
    Input voltage: 0 to 30VDC
    Output current: 50mA pre pin and Max. 200mA total
    On-state voltage: 12VDC nominal, open collector to 30VDC.

    显示

    1 x VGA

    音源

    Stereo speaker with Amplifier to drive 10W speaker (4 pin Terminal)
    1 x 3.5mm Line out/Mic In

    CANBus

    2 x CAN 2.0B (DB9-M)
    Support J1939

    侧面输入/输出

    天线孔

    2 x Fakra antenna holes
    2 x Fakra antenna holes

    监视定时器

    看门狗定时器

    System reset, programmable via software from 1 to 255 seconds

    安全性

    信赖平台模块

    TPM 2.0 (NUVOTON)

    电源

    类型

    Wide range 9~36V with ignition control

    端口

    3-pole terminal block

    支持操作系统

    微软

    Windows 10/11

    Linux

    Linux Ubuntu 22.04

    环境指标

    温度

    Operating: -40 to 70°C
    Storage: -40 to 85°C

    机械结构

    结构

    Aluminum + SPGC Metal

    安装方式

    Wall mount

    尺寸 (宽 x 高 x 深)

    182.4mm x 56.5mm x 118.4mm (W x H x D)
    182.4mm x 87.5mm x 118.4mm (W x H x D) (2.5" SATA drive bays)

    重量

    TBD

    颜色

    Black

    安规认证

    冲击测试

    Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1

    抗振动测试

    Operating/non-operating: MIL-STD-810G Method 514.6, Category 4

    认证

    CE, FCC, E-Mark (E24), ITxPT, RoHS, UKCA (To be updated)
