车载工业计算机-EPC-1229
★4 x M12 X-coded PoE Ports at 15.4W
★AI accelerated: up to 115W GPU MXM module supported
★Multiple expansion slots for 4G/LTE/5G cellular and function modules
★UPS Battery: Supports at least 5 mins nonstop operation
★Support M.2 B key 3042/3052 5G-NR module
★4 x Swappable 2.5” 7mm SSD storage bays
★15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th/9th Generation Intel® Core™ Processors, LGA 1151
Intel® Core™ i7-9700TE Processor, 8C/8T, 12MB Cache, 1.8GHz, TDP 35W
Intel® Core™ i7-8700T Processor, 6C/12T, 12MB Cache, 2.4GHz, TDP 35W
Intel® Core™ i5-9500TE Processor, 6C/6T, 9MB Cache, 2.2GHz, TDP 35W
(Other CPU support upon request)芯片组
Intel® Q370 Chipset
内存
Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
显示器
1 x VGA (display out by DB-15 connector)
1 x HDMI (with screw lock)
1 x DP++ (Standard Display Port Connector DIP
type with screw lock)
Support NIVIDIA Optimus
technology
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2304 @ 60HzAI 加速器
界面
MXM Type A, B, C on x16 PCIe 3.0
控制器
Nvidia Quadro embedded / Nvidia Geforce series
储存
外插
4 x Swappable 2.5” 7mm SSD storage bays with lock (RC300H-CS)
2 x Swappable 2.5" 7mm SSD storage bays with lock (RC300L-CS, RC300H-CS-UPS)内插
1 x M.2 2280 M key supports SATA SSD
扩充
界面
1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket
- SIM card can all be external accessible
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)音讯
音讯编译码器
Realtek ALC888
界面
1 x Mic-in
1 x Line-out以太网路
控制器
5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)界面
2 x RJ45 GbE
4 x M12 802.3af 15.4W PoE portsLED
指示灯
1 x Power LED (green)
5 x Storage LED (red)

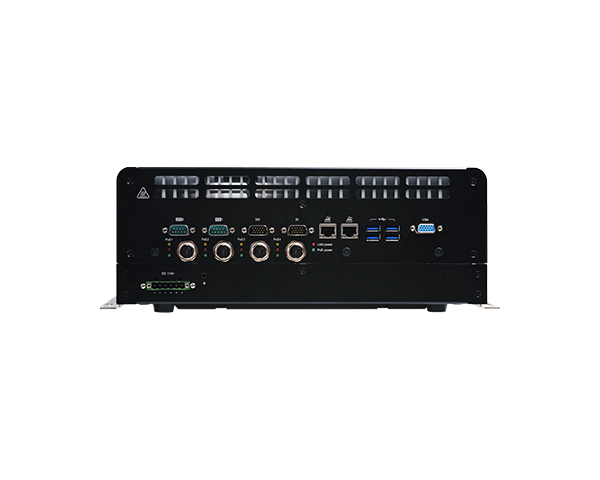

4 x PoE LED前板输入/输出
PoE
4 x M12 802.3af PoE
Support 802.11af, max 15.4W (PSE side)
NOT support wake on Lan以太网络
2 x GbE (RJ-45) support Wake on Lan
串口
2 x BIOS selection RS-232/422/485 by 2x DB-9
USB
4 x USB 3.0 (type A)
显示
1 x VGA display out by DB-15 connector
DIO
1 x 8-bit isolated DI port by DB-9 connector
1 x 8-bit isolated DO port by DB-9 connector
2KV isolationPower-in
RC300H-CS : 1 x 6-pin 5.0mm terminal block

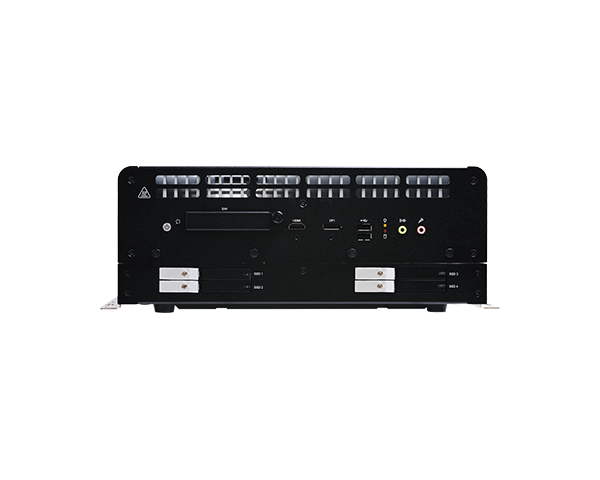

RC300L-CS : 1 x 9-pin 5.0mm terminal block背板输入/输出
USB
2 x USB 2.0 (type A)
显示
1 x HDMI
1 x DP++音源
1 x Mic-in
1 x Line-out
by 3.5mm 3P Phone Jack按键
1 x Power button
1 x Reset button天线
7 x SMA type antenna holes for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
SIM
3 x SIM sockets (external accessible with cover)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
RC300H-CS: 110VDC nominal power input (77VDC~137.5VDC power range)
RC300L-CS: 12/24VDC nominal power input (9VDC~36VDC power range)端口
RC300H-CS : 1 x 6-pin 5.0mm terminal block
RC300L-CS : 1 x 9-pin 5.0mm terminal block电池 (UPS)
Optional UPS battery kit for at least 5min operations at full loading max. 300W (will occupy two SSDs space), RC300H-CS only (RC300H-CS-UPS)
支持操作系统
微软
Windows 10 IoT Enterprise 64 Bit
Linux
Ubuntu 18.04
环境指标
运作温度
-25°C to 70°C with when CPU+GPU<100W, up to +85°C for 10min
-25°C to 55°C with when CPU+GPU<160W, up to +70°C for 10min
Turboboost is disabled and CPU&GPU will be throttling at high temperature.储存温度
-40 to 85°C
相对湿度
10% to 90% (non-condensing)
机械结构
尺寸
340.5 x 132 x 223mm (3U height, excluding rubber foot)
结构
Metal + Aluminum
安装方式
Wall mount
重量
9.85 kg
安规认证
冲击测试
EN61373: 2010, Category 1 Class A & Class B
抗振动测试
EN61373: 2010, Category 1 Class B
认证
EMC: EN50121-3-2
Safety: EN50153, EN50124-1
Fire Proof: EN45545
Railway Regulation: EN50155 (Class S2: 10ms interruptions for RC300H-CS)
(Supply Change Over Class C1: at 0,6 Un during 100ms without interruptions) -
-
