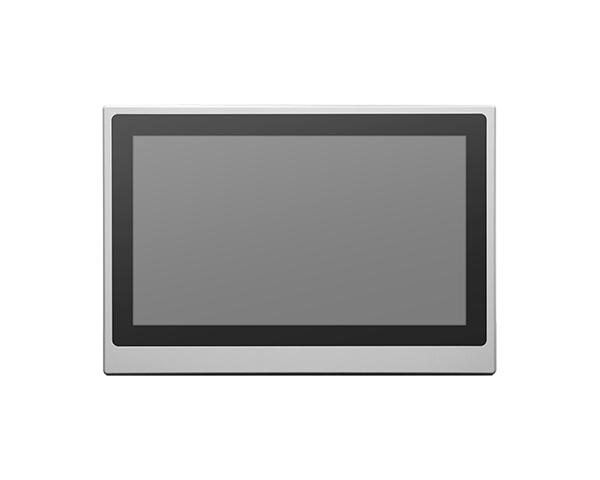

工业级显示器-FPM-1564
★Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
★IP Rating: IP65 Front Panel
★Support 3 Signal Interfaces: VGA/DVI/HDMI
★Support Modular Extended Display: Wifi Display
★Various Mounting Type: VESA Mount 75 / Panel Mount
★Advanced Voltage: Support USB Type C
★IP Rating: IP65 Front Panel
★Support 3 Signal Interfaces: VGA/DVI/HDMI
★Support Modular Extended Display: Wifi Display
★Various Mounting Type: VESA Mount 75 / Panel Mount
★Advanced Voltage: Support USB Type C
-
显示和触控屏幕
屏幕
15.6" TFT LCD Monitor
Projected Capacitive Multi-touch / Resistive Touch亮度
400 cd/m²
对比度
800 : 1
可触控范围
344.232mm x 193.536mm (H x V)
反应时间
10ms
视角
170/130
背光寿命
50,000 Hrs LED Backlight
最大分辨率
1366 x 768
底板输入/输出
USB
1 x USB port (touch to external PC)
显示
1 x VGA
1 x DVI-D
1 x HDMI音源
1 x Line-in
外接显示器（可选）
Wifi Display
电源
类型
20V USB Type C VDC Input / 12 to 24 VDC Input with DC Jack
环境指标
运作温度
0°C ~ 70°C
储存温度
-30°C ~ 70°C
相对湿度
90% RH@ 60°C, 240Hrs (non-condensing)
机械结构
尺寸
407.3 x 227.3 x 56 (mm)
结构
Aluminum Front Bezel
IP等级
IP65 Front Panel
重量
3.9 kg
安规认证
认证
CE, FCC, UKCA, RoHS
装箱单
装箱单
1 IDP156-MS Monitor
1 Audio Cable
1 VGA Cable
1 USB Cable
1 Quick Guide其他
OSD键盘
Multi-language OSD
喇叭
2 x 3W
-
-
