防水加固式一体机-RPC-1013

★11th Gen Intel® Core™ Processors
★High Brightness Sunlight-Readable 10.1 Screen
★ALL-DAY usability with hot swap capability (2 removable Li-Ion battery)
★Optical bonding enhances both visibility and strength
★Chemically-strengthened Dragontrail™ High Ion-Exchange (HIE™) cover glass for excellent impact and scratch resistance
★Adjustable LED backlit keys and 8x programmable function keys
★Ultra Rugged design to meet MIL-STD-810H (Full IP65)
ꄴ上一个： 无
ꄲ下一个： 无

  • 系统



    处理器

    11th Generation Intel® Core™ Processors
    Intel® Core™ i7-1185GRE, Quad Core, 12M Cache, 1.8GHz (4.4GHz), 15W
    Intel® Core™ i5-1145GRE, Quad Core, 8M Cache, 1.5GHz (4.1GHz), 15W
    Intel® Celeron® 6305E, Dual Core, 4M Cache, 1.8GHz (1.8GHz), 15W

    内存

    8 GB LPDDR4X RAM (Celeron model)
    16 GB LPDDR4X RAM (i5 and i7 models)

    显示和触控屏幕

    屏幕

    10.1" TFT LCD Panel

    亮度

    800

    对比度

    1000 typical

    背光寿命

    30,000 hours

    最大分辨率

    1920 x 1200

    触控式

    Projected Capacitive

    显示

    控制器

    Intel® Iris® Xe Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
    HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

    储存

    外插

    MicroSD Card up to 1TB

    内插

    256GB SATA (standard on i7)
    128GB SATA (i5 and Celeron)

    傳感器

    傳感器

    Ambient light sensor
    Compass
    Accelerometer
    Gyroscope

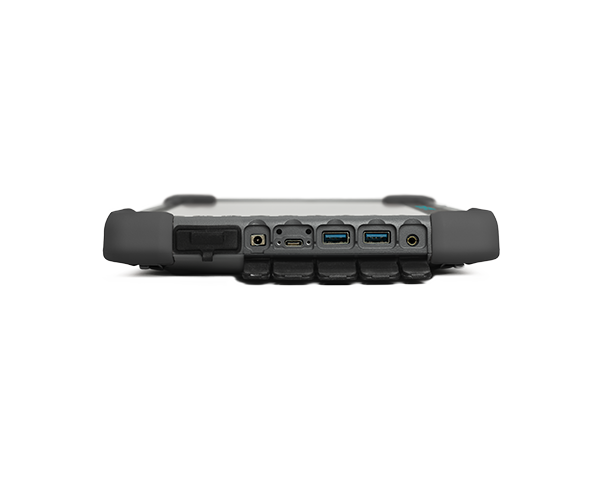

    输入/输出

    串口

    Optional RS-232 9-Pin D-Sub connector with 5V DC or 12V DC power output

    USB

    1 x USB Type-C
    2 x USB 3.1

    按键

    Power, Windows key, Keyboard Shortcut,Directional Arrows (4x), Enter key, Volume Up, Volume down key (8x programmable function keys)

    音源

    3.5 mm audio jack

    无线

    4G LTE

    Multi-carrier capable
    Optional FirstNet, Band 14 mobile broadband

    Wi-Fi

    802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz

    蓝牙

    v5.1 (Class 1.5, BLE support)

    镜头

    后镜头

    13 MP with LED illumination

    前置镜头

    2 MP

    条码模组

    1D/2D IMAGER

    (Optional)
    Symbologies: all common 1D and 2D (PDF417,MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec,MaxiCode, Postal codes, etc.)
    Barcode Connector™ utility, wedge and configuration, SDK support available

    电源

    类型

    DC 19V

    端口

    DC Jack

    电池

    Removable Li-Ion battery, 43.2 Whr (with integrated 5 LED charge indicators)
    Optional second Li-Ion battery, 43.2 Whr
    Hot-swap capability

    支持操作系统

    微软

    Windows 11 Pro (Celeron, i7)
    Windows 11 IoT Enterprise (i5)

    环境指标

    运作温度

    -20 ~ 50°C

    储存温度

    -30 ~ 70°C

    相对湿度

    95%

    机械结构

    IP等级

    IP65

    安装方式

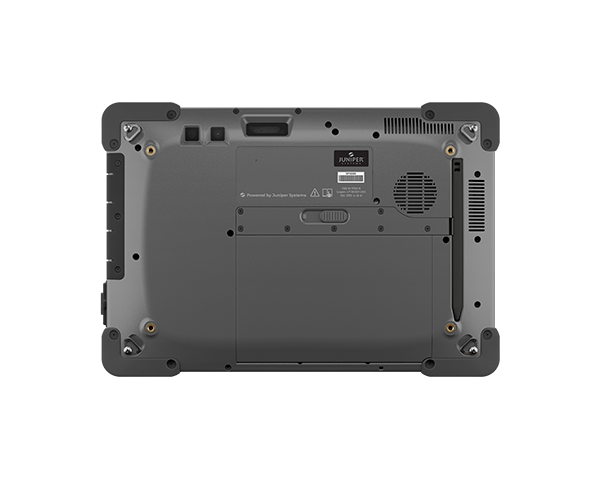

    4 threaded mounting holes on the back of the tablet (220mm x 130mm), Screw Size: M4

    尺寸 (宽 x 高 x 深)

    285 x 195 x 30.5 mm

    重量

    1.76 kg (depending on battery and expansion configuration)

    安规认证

    冲击测试

    MIL-STD-810H, Method 514.6 Vibration

    抗振动测试

    MIL-STD-810H, Method 516.6 Shock

    认证

    CE, FCC Class B, UKCA, Industry Canada
