扩展型一体机-PPC-1502
★2 x 2.5" SATA drive bays
★1 USB 2.0 at the front panel for easy access
★5 function keys at the front panel
★VESA/Panel Mount
★15" 1024x768 TFT LCD Panel with Touch Screen
★15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz显示和触控屏幕
屏幕
15" 1024x768 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen
亮度
300 cd/m²
视角
176 (H) / 176 (V)
背光寿命
70,000 MTBF LED Backlight
储存
外插/内插
2 x 2.5" SATA 2.0 Drive Bay
扩充
界面
1 x Full-size mSATA (PCIe/USB)
2 x PCIe x8 or 2 x PCI + 1 x Mini PCIe以太网路
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps)前板输入/输出
USB
1 x USB 2.0

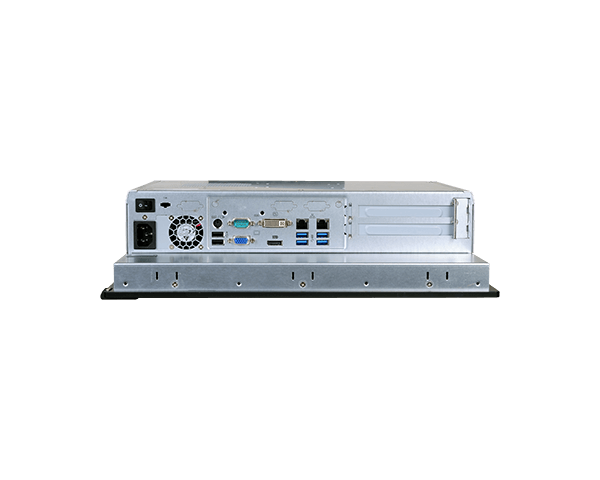

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232 (DB-9)
1 x RS-232 (DB-9) (available upon request)
1 x RS-232/422/485 (available upon request)USB
4 x USB 3.0
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++音源
1 x Line-out (available upon request)
电源
类型
100-240VAC
端口
C14 Connector
耗能
163w (Max load with TAT)
支持操作系统
支持操作系统
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Linux环境指标
运作温度
0 to 50°C
储存温度
-30 to 70°C
相对湿度
10% to 90% @ 40°C (non-condensing)
机械结构
结构
Sheet Metal
IP等级
IP65 front bezel

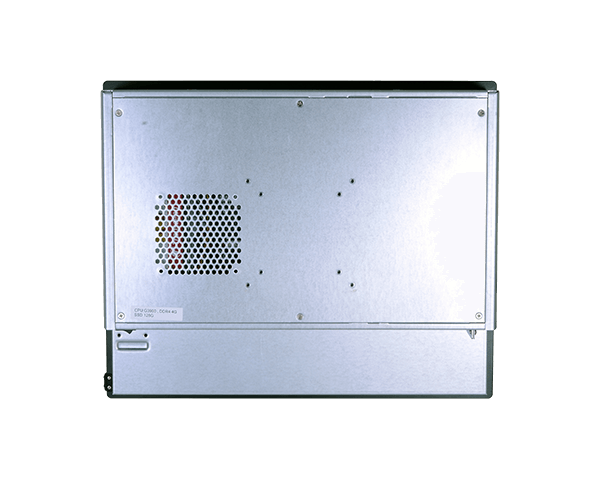

安装方式
Panel/VESA (75x75/100x100) Mount
尺寸 (宽 x 高 x 深)
403 x 330 x 103.5 mm
重量
10.87kg
安规认证
认证
CE, FCC Class A, UL
-
-
