工业一体机-PPC-1501
★1x 2.5" SATA 磁盘架
★IP65前面板防尘防水等级
★VESA/Wall/Panel Mount
★宽温运行: -10~60°C
★15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
BGA 1170 packaging technology
22nm process technology内存
Two 204-pin SODIMM up to 8GB (E3845)
Dual Channel DDR3L 1333MHz
One 204-pin SODIMM up to 4GB (E3825)
Single Channel DDR3L 1066MHzBIOS
AMI SPI 64Mbit
显示和触控屏幕
屏幕
15" 1024x768 TFT LCD Panel with Capacitive/5-wire Resistive Touch Screen
亮度
250 cd/m²
视角
160° / 140°
背光寿命
50,000 MTBF LED Backlight
显示
控制器
Intel® HD Graphics
显示器
1 x DVI-I
DVI-I: resolution up to 1920x1080 @ 60Hz单显示
1 x DVI-I
储存
外插/内插
1 x 2.5" SATA 2.0 Drive Bay
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB/SATA)
音讯
音讯编译码器
Realtek ALC888 5.1-channel
以太网路
控制器
2 x Intel® I210 PCIe (10/100/1000Mbps)

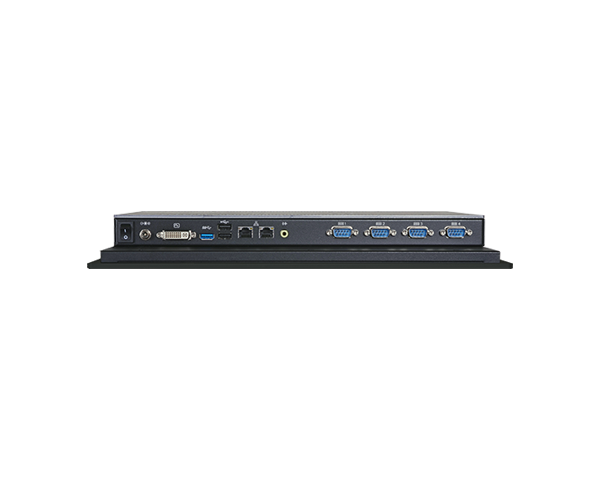

底板输入/输出
以太网络
2 x GbE (RJ-45)
串口
3 x RS-232/422/485 (RS232 and/or power) (DB-9)
1 x RS-232 (DB-9)USB
1 x USB 3.0
2 x USB 2.0显示
1 x DVI-I
音源
1 x Line-out
按键
1 x Power Switch
电源
类型
12V DC
端口
DC Jack
支持操作系统
支持操作系统
Windows 7
Windows 8
Linux (Project base upon request only, with 3 months lead time)环境指标
运作温度
-10°C ~ 60°C (with SSD)
0°C ~ 45°C (with HDD)储存温度
-20°C ~ 70°C
相对湿度
85% RH at 60°C (with SSD)
85% RH at 45°C (with HDD)机械结构
结构
Aluminum Front Bezel
Rear Panel: Aluminum and SGCCIP等级
IP65 Front Panel Protection
安装方式
Wall Mount (VESA 75x75 or 100x100)
Panel Mount (mounting clamp)尺寸 (宽 x 高 x 深)
373mm x 297mm x 46.10mm (W x H x D)
重量
3.8 kg
安规认证
冲击测试
Operating: 3G Peak Acceleration
Non-operating: 5G Peak Acceleration抗振动测试
Operating: 1G, 5~500Hz
Non-operating: 3G, 10~500Hz认证
CE, FCC Class A, RoHS
-
-
