工业一体机-PPC-7001
★7" 800x480 TFT LCD panel with touch screen
★Intel Atom® Processor E3900
★IP65 front panel protection
★Dual displays: VGA + DP++
★Rich I/O: 2 LAN, 2 COM, 2 USB 3.0, 2 USB 2.0
★15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W内存
One 204-pin SODIMM up to 8GB (4GB memory by default)
Single Channel DDR3L 1866MHzBIOS
Insyde SPI 128Mbit (supports UEFI boot only)
显示和触控屏幕
屏幕
7” 800x480 TFT LCD Panel with Capacitive/Resistive Touch Screen
亮度
500 cd/m²
对比度
400:1
背光寿命
50,000 hours
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4显示器
1 x VGA
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz双重显示
VGA + DP++
储存
外插/内插
1 x CFast Socket
扩充
界面
1 x Full-size Mini PCIe (USB/PCIe)
1 x M.2 2242 B-key (SATA 3.0/USB 2.0/PCIe Gen2 x2)音讯
音讯编译码器
Realtek ALC262
以太网路
控制器
2 x Intel® I211AT PCIe (10/100/1000Mbps)

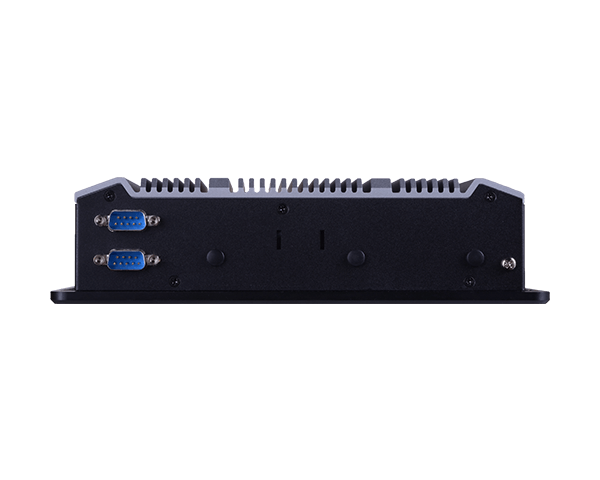

上板输入/输出
串口
2 x RS-232/422/485 (DB-9)
Wi-Fi 天线
3 x Wi-Fi Module Antenna Hole
DIO
1 x 8-bit DIO (DB-9) (available upon request)
按键
1 x Power Button

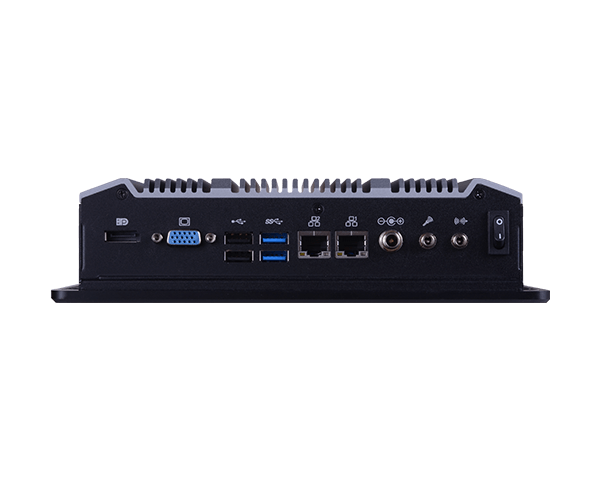

底板输入/输出
以太网络
2 x GbE (RJ-45) (10/100/1000Mbps)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)显示
1 x VGA
1 x DP++音源
1 x Line-out
1 x Mic-in监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
12V DC
端口
DC Jack
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
环境指标
运作温度
-20 to 55°C
储存温度
-30 to 80°C
相对湿度
5 to 85% RH (non-condensing)
机械结构
结构
Sheet Metal
IP等级
IP65 Front Panel Protection
安装方式
Panel/VESA Mount
尺寸 (宽 x 高 x 深)
230mm x 150mm x 58.3mm
重量
1.5kg
安规认证
冲击测试
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms抗振动测试
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min认证
CE, FCC, RoHS
-
-
