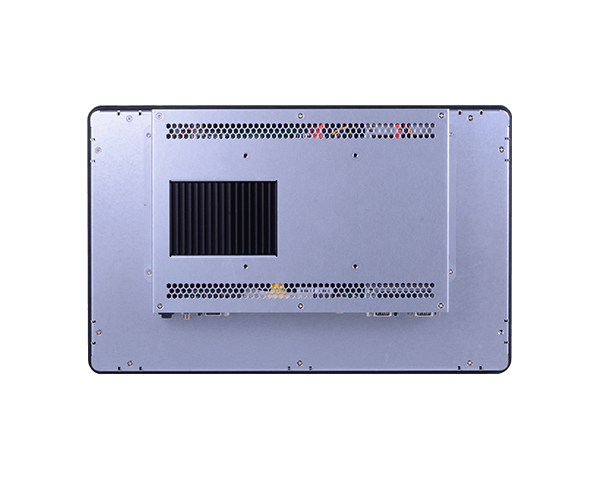

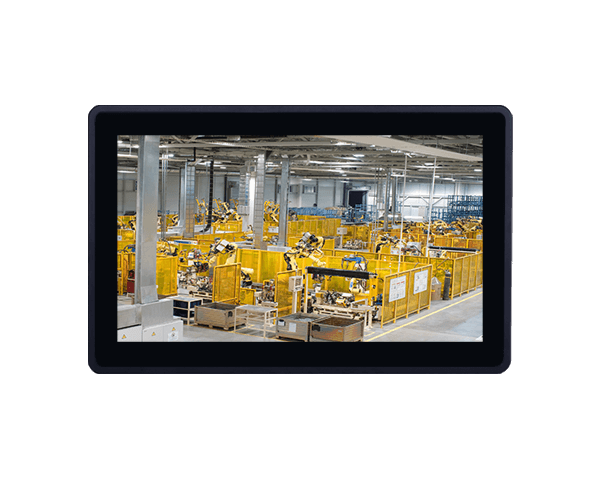

工业一体机-PPC-1562
★1x 2.5" SATA drive bay
★IP65 Front Panel Protection
★VESA/Panel Mount
★Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
★15.6" 1366x768 TFT LCD Panel with Touch Screen
★15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W内存
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1867MHzBIOS
Insyde SPI 64Mbit (supports UEFI boot only)
显示和触控屏幕
屏幕
15.6” 1366x768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen
亮度
400 cd/m²
对比度
500:1
背光寿命
50,000 hours
显示
控制器
Intel® HD Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCOpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC显示器
1 x VGA
1 x HDMI
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz双重显示
HDMI + VGA
储存
外插/内插
1 x 2.5" SATA 3.0 Drive Bay
扩充
界面
1 x M.2
1 x Full-size Mini PCIe (PCIe/USB)音讯
音讯编译码器
Realtek ALC888 5.1-channel
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Power LED
1 x HDD LED上板输入/输出
天线连接器
2 x Antenna Hole for Wi-Fi or Cell Module
底板输入/输出
以太网络
2 x GbE (RJ-45) (10/100/1000Mbps)
串口
2 x RS-232/422/485 (DB-9)
USB
4 x USB 3.0 (type A)
显示
1 x VGA
1 x HDMI音源
1 x Line-out
按键
1 x Power Button
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
12V DC
15V - 36V DC端口
DC Jack
支持操作系统
支持操作系统 (UEFI Only)
Windows: Windows 10 (64-bit)
Linux: Yocto Project
Fedora 24 (Intel Graphics Driver available)
Linux环境指标
运作温度
0 to 50°C
储存温度
-30 to 70°C
相对湿度
5 to 85% RH (non-condensing)
机械结构
结构
Sheet Metal
IP等级
IP65 Front Panel Protection
安装方式
Panel/VESA Mount
尺寸 (宽 x 高 x 深)
412.1 mm x 261.4 mm x 63 mm (W x H x D)
重量
6.17 KG
安规认证
冲击测试
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms抗振动测试
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min认证
CE, FCC
-
-
