工业机箱-IPC-2028
★高达2x 3.5"/2.5" SATA 磁盘架
★1x 光驱
★支持 4 个扩充插槽: 1 PCIe x16, 1 PCIe x4, 2 PCI
★为ATM应用所设计
★7年CPU长期支持至Q3' 18 (Based on Intel IOTG Roadmap)
-
系统
处理器
LGA 1155 Socket
3rd Generation Intel® Core™ Processors
Intel® Core™ i7-3770 Processor, 8M Cache, 3.4GHz (3.9GHz), 77W
Intel® Core™ i5-3550S Processor, 6M Cache, 3GHz (3.7GHz), 65W
Intel® Core™ i3-3220 Processor, 3M Cache, 3.3GHz, 55W
Intel® Pentium® Processor G2120, 3M Cache, 3.1GHz, 55W
Intel® Celeron® Processor G1620, 2M Cache, 2.7GHz, 55W
2nd Generation Intel® Core™ Processors
Intel® Core™ i7-2600 Processor, 8M Cache, 3.4GHz (3.8GHz), 95W
Intel® Core™ i5-2400 Processor, 6M Cache, 3.1GHz (3.4GHz), 95W
Intel® Core™ i3-2120 Processor, 3M Cache, 3.3GHz, 65W
Intel® Pentium® Processor G850, 3M Cache, 2.9GHz, 65W内存
Four 240-pin DIMM up to 32GB
Dual Channel DDR3 1333/1600MHz (3rd gen processors)
Dual Channel DDR3 1066/1333MHz (2nd gen processors)BIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics 4000 (Core i7)
Intel® HD Graphics 2500 (Core i5/i3/Pentium)特性
Direct X 11, OGL 3.0
显示器
MB330-CRM:
1 x DVI-I
1 x DVI-I (DVI-D signal)
1 x HDMI
MB331-CRM:
1 x VGA
1 x DVI-I (DVI-D signal)
DVI, HDMI: resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 2048x1536 @ 75Hz, 32-bit三重显示
MB330-CRM: DVI-I + DVI-I + HDMI
MB331-CRM: VGA + DVI-I储存
外插/内插
1 or 2 x 3.5"/2.5" SATA 3.0 Drive Bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical Drive Bay扩充
界面
1 x PCIe x16 (3rd gen processors support Gen 3) (2nd gen processors support Gen 2)
1 x PCIe x4 (Gen 2)
2 x PCI (PCI 2.3)
1 x Full-size Mini PCIe (PCIe/USB) (MB330-CRM only)音讯
音讯编译码器
Realtek ALC886 5.1-channel
以太网路
控制器
1 x Intel® WG82574L PCIe (10/100/1000Mbps)
1 x Intel® WG82579LM PCIe with iAMT8.0 (10/100/1000Mbps)LED
指示灯
1 x Power LED
1 x HDD LED背板输入/输出
以太网络
2 x GbE (RJ-45)
串口

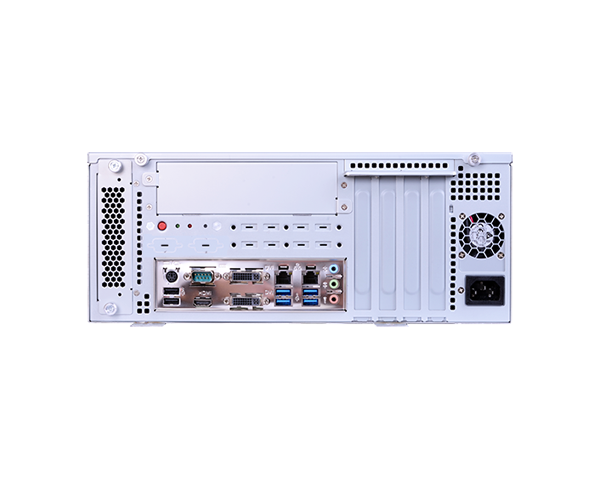

MB330-CRM:
1 x RS-232/422/485 (DB-9)
2 x RS-232 (DB-9) (available upon request)

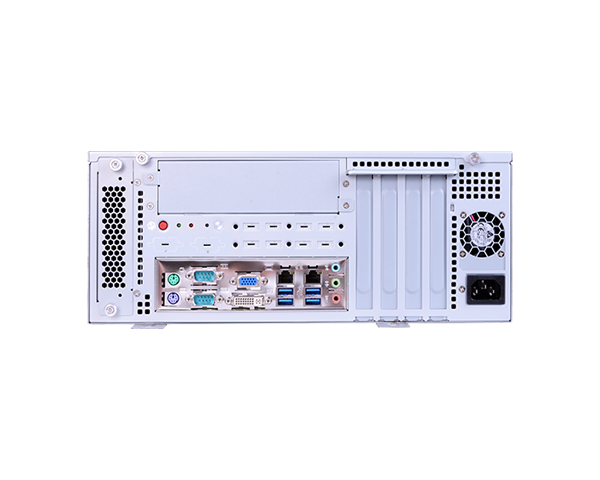

MB331-CRM:
2 x RS-232/422/485 (DB-9)
2 x RS-232 (DB-9) (available upon request)USB
MB330-CRM:
4 x USB 3.0 + 2 x USB 2.0
4 x USB 2.0 (available upon request)
MB331-CRM:
4 x USB 3.0
6 x USB 2.0 (available upon request)PS/2
MB330-CRM:
1 x PS/2 (mini-DIN-6)
MB331-CRM:
2 x PS/2 (mini-DIN-6)显示
MB330-CRM:
1 x DVI-I
1 x DVI-I (DVI-D signal)
1 x HDMI
MB331-CRM:
1 x VGA
1 x DVI-I (DVI-D signal)音源
1 x Line-out
1 x Line-in
1 x Mic-in按键
1 x Power Button
冷却
风扇
1 x System Fan
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
供应
Flex ATX 250W
支持操作系统
支持操作系统
WES 7 Windows 8
环境指标
运作温度
0 to 45°C
储存温度
0 to 60°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Sheet Metal
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
重量
8.94kg
安规认证
冲击测试
Operating: 3G
Non-operating: 5G抗振动测试
Operating: Random 5~500Hz 0.5G
Non-operating: Sine 10~500Hz 1.5G包装落摔测试
ISTA Project 1A
认证
CE, FCC Class A, RoHS
-
-
