工业机箱-IPC-2022
★Dual storage support
★One side I/O and 2 expansion slots
★Supports 1 PCIe x16, 1 PCIe x4

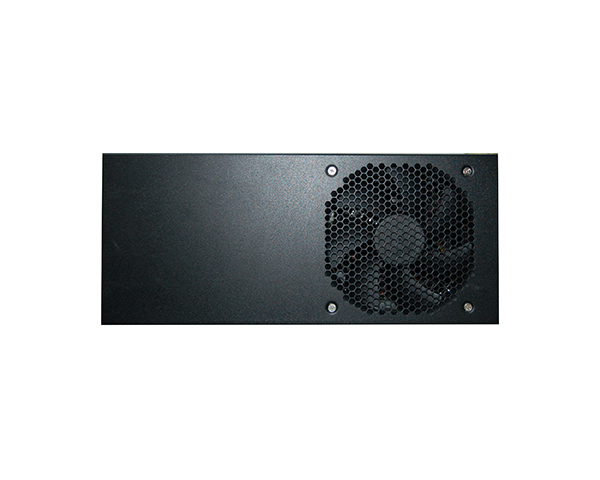

★12cm system fan
★15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Xeon® E3-1275 v6, Quad Core, 8M Cache, 3.8GHz (4.2GHz), 80W (KD331-C236 Only, ECC Supported)
Intel® Core™ i7-7700K Processor, Quad Core, 8M Cache, 4.2GHz (4.5GHz), 91W
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W芯片组
KD331-C236: Intel® C236 Chipset
KD331-Q170: Intel® Q170 Chipset内存
KD331-C236:
Four 288-pin ECC DIMM up to 64GB
KD331-Q170:
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 2133/2400 MHzBIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz三重显示
VGA + DVI-I (DVI-D signal) + DP++
储存
外插/内插
2 x 2.5" SATA 3.0 Drive Bays (1 x 2.5" SATA drive bay, by default)
扩充
界面
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
3 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)LED
指示灯
1 x Power LED

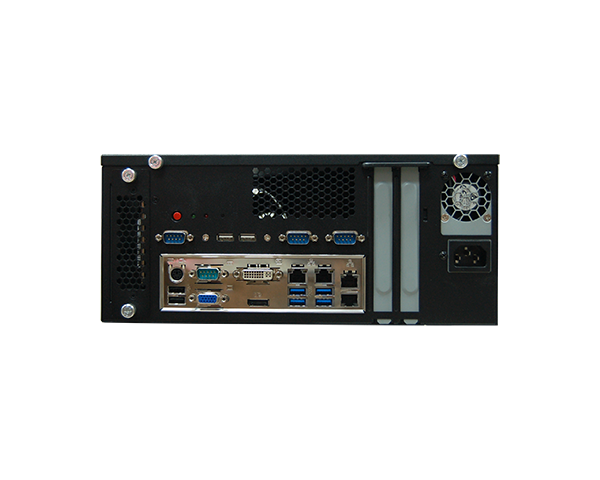

1 x Storage LED背板输入/输出
以太网络
4 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++按键
1 x Power Button, 1 x Reset Button
冷却
风扇
1 x System Fan
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0 (optional)
电源
供应
Flex ATX 150W/250W/350W/400W/500W (250W Default)
支持操作系统
支持操作系统
Windows 10 IoT
环境指标
运作温度
0 to 45°C
储存温度
0 to 60°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Sheet Metal
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
306.6mm x 132.1mm x 301.9mm
重量
6.25kg
安规认证
冲击测试
Operating: 3G
Non-operating: 5G抗振动测试
Operating: Random 5~500Hz 0.5G
Non-operating: Sine 10~500Hz 1.5G包装落摔测试
ISTA Project 1A
认证
CE, FCC Class A, RoHS
-
-
