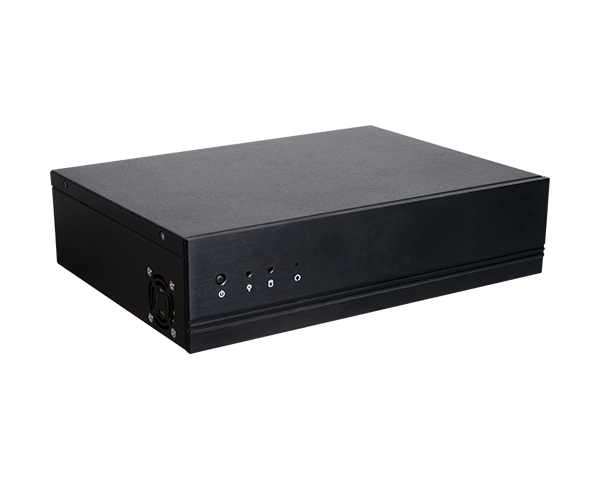

工业机箱-IPC-2019
★2 DDR4 SODIMM up to 64GB
★4 DP++ resolution up to 4096x2160 @ 60Hz
★1x 3.5" or 2x 2.5" SATA drive bay
★Supports 1 expansion slot: 1 PCIe or 1 PCI
★10-Year CPU Life Cycle Support Until Q2' 27 (Based on AMD Roadmap)
-
系统
处理器
AMD® Ryzen™ Embedded V1000 series
AMD® Ryzen™ Embedded V1807, Quad Core, 2M Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen™ Embedded V1756, Quad Core, 2M Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen™ Embedded V1605, Quad Core, 2M Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202, Dual Core, 1M Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen™ Embedded R1000 series内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 3200MHzBIOS
AMI BIOS
显示
控制器
AMD® Radeon™ Vega Graphics
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
4 x DP++ (V1000)
3 x DP++ (R1000)
DP: resolution up to 4096x2160 @ 60Hz四重显示
DP++ (R1000 supports triple displays)
储存
外插/内插
1 x 3.5" or 2 x 2.5" SATA 3.0 Drive Bay
1 x M.2 2280 NVME SSD (2280 PCIe x4), (x2 signal with R1000)扩充
界面
1 x PCIe or 1 x PCI (through optional riser card)
音讯
音讯编译码器
Realtek Audio Codec with 5.1 Channel Support
以太网路
控制器
2 x Realtek Ethernet LAN Controller

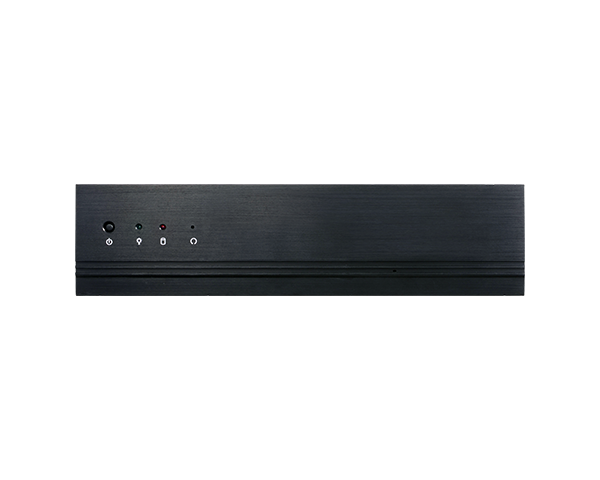

前板输入/输出
按键
1 x Power Button
1 x Reset ButtonLED指示灯
1 x Power LED

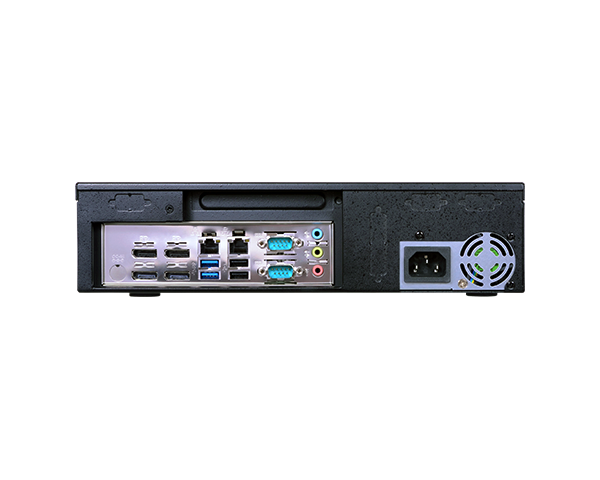

1 x HDD LED背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)USB
2 x USB 3.0
2 x USB 2.0显示
4 x DP++ (V1000)
3 x DP++ (R1000)音源
1 x Line-in
1 x Line-out
1 x Mic-in预断孔
DB-9 x 2, DB-15, DB-25
冷却
风扇
1 x System Fan
1 x CPU Fan监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
供应
AC150W, ATX, 100 to 240V AC input
支持操作系统
支持操作系统
Windows 10
Linux环境指标
运作温度
0 to 45°C
储存温度
-40 to 85°C
相对湿度
10 to 90% RH (non-condensing)
机械结构
结构
Front Bezel aluminum + Chassis Sheet Metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
300mm x 75mm x 217mm
重量
3.7kg
安规认证
认证
CE, FCC
-
-
