工业机箱-IPC-2017
★Triple independent display : VGA + DVI-D + DP++
★4 Expension slots (3.5"/2.5" SATA driver bay + 5.25" optical drive bay)
★Multiple expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini-PCIe socket
★15-Year CPU Life Cycle Support Until Q3' 33
-
系统
处理器
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W (Non-LTS)
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W芯片组
Intel® H310/Q370
内存
Q370 :
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz
H310 :
Two 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHzBIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200@60Hz
DVI-D: resolution up to 1920x1200@60Hz
DP++: resolution up to 4096x2160@60Hz双重显示
H310: VGA & DVI-D / VGA & DP++ / DP++ & DVI-D
三重显示
Q370: VGA & DVI-D & DP++
储存
外插
1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical drive bay内插
1 x mSATA
界面
CS330-Q370 :
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default)
CS330-H310 :
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
2 x PCI音讯
音讯编译码器
Realtek ALC888
界面
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)以太网路
控制器
1 x Intel® I211AT (10/100/1000Mbps)
1 x Intel® I219V (10/100/1000Mbps)LED
指示灯
1 x Power LED

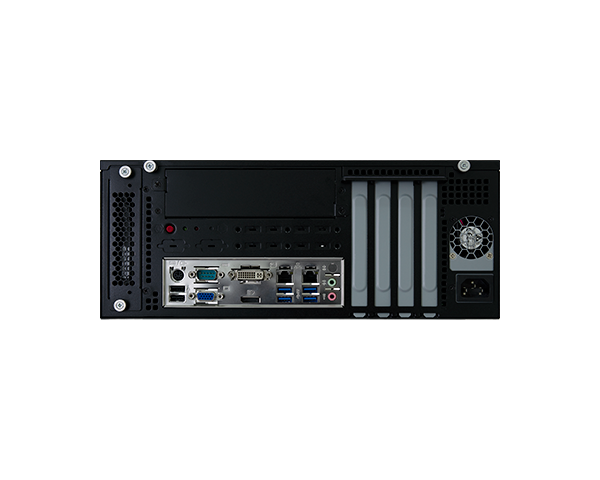

1 x HDD LED背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.1 Gen 1
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++音源
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)按键
1 x Power button
1 x Reset button预断孔
2 x DB-9 Cutout
8 x USB 2.0 Cutout冷却
风扇

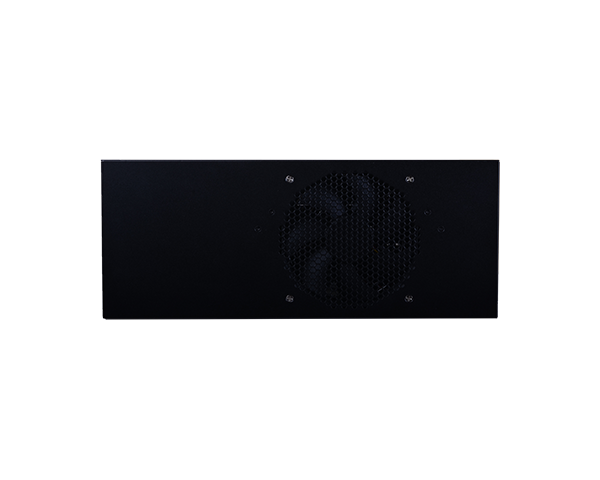

1 x 12cm System Fan
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM1.2/2.0 (optional)
电源
供应
Flex ATX 150W/250W/350W/400W/500W (250W Default)
支持操作系统
微软
Windows 10
Linux
Linux
环境指标
运作温度
0 to 45°C
储存温度
0 to 60°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Sheet metal
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
重量
7.7kg
颜色
no coating or black coating
安规认证
冲击测试
Operating: 3G Non-operating: 5G
抗振动测试
Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
包装落摔测试
ISTA Project 1A
认证
CE, FCC Class A, RoHS
-
-
