工业机箱-IPC-2014

★8th/9th Generation Intel® Core™ Processors
★Triple independent display : HDMI + DVI-D + DP++
★4 Expension slots (3.5"/2.5" SATA driver bay + 5.25" optical drive bay)
★Multiple expansion : 2 PCIe x16, 2 PCIe x4, 1 M.2 M key, 1 M.2 E key
★15-Year CPU Life Cycle Support Until Q3' 33
ꄴ上一个： 工业机箱-IPC-2015
ꄲ下一个： 工业机箱-IPC-2013

  • 系统



    处理器

    8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
    Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W (C246 only)
    Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W (C246 only)
    Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W
    Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
    Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
    Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
    Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
    Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
    Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
    Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
    Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
    Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
    Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
    9th Generation Intel® Core™ LGA 1151 Socket Processors:
    Intel® Xeon® E-2278GE (8 Cores, 16M Cache, up to 4.7 GHz); 80W (C246 only)
    Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W (C246 only)
    Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W (C246 only)
    Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W (Non-LTS)
    Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
    Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
    Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
    Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
    Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

    芯片组

    Intel® Q370/C246 Chipset

    内存

    Q370:
    Four 288-pin DIMM up to 128GB
    Dual Channel DDR4 2400/2666 MHz
    C246:
    Two 288-pin DIMM up to 64GB
    Dual Channel DDR4 2400/2666 MHz

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x DP++
    1 x HDMI 1.4b
    1 x DVI-I (DVI-D signal)
    DP++: resolution up to 4096x2106@60Hz
    HDMI 1.4b: resolution up to 4096x2160@24Hz
    DVI-I (DVI-D signal): resolution up to 1920x1200@60Hz 1 x DP++
    1 x HDMI 1.4b
    1 x DVI-I (DVI-D signal)
    DP++: resolution up to 4096x2106@60Hz
    HDMI 1.4b: resolution up to 4096x2160@24Hz
    DVI-I (DVI-D signal): resolution up to 1920x1200@60Hz

    三重显示

    DVI-D & DP++ & HDMI 1.4b

    储存

    外插

    1 or 2 x 3.5"/2.5" SATA 3.0 Drive Bays (1 x 3.5" SATA drive bay, by default)
    1 x 5.25" Optical Drive Bay

    内插

    1 x M.2 2280 (PCIe x4/SATA)

    界面

    2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
    2 x PCIe x4 (Gen 3)
    1 x M.2 2230 E key (PCIe x1/USB2.0/intel CNVi support)
    1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)

    音讯

    音讯编译码器

    Realtek ALC888

    界面

    1 x Line-out
    1 x Mic-in
    1 x Line-in (opt.)

    以太网路

    控制器

    1 x Intel® i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (Only Xeon, Core i7/i5 support iAMT)
    1 x Intel® i211AT PCIe (10/100/1000Mbps)

    LED

    指示灯

    1 x Power LED
    1 x HDD LED

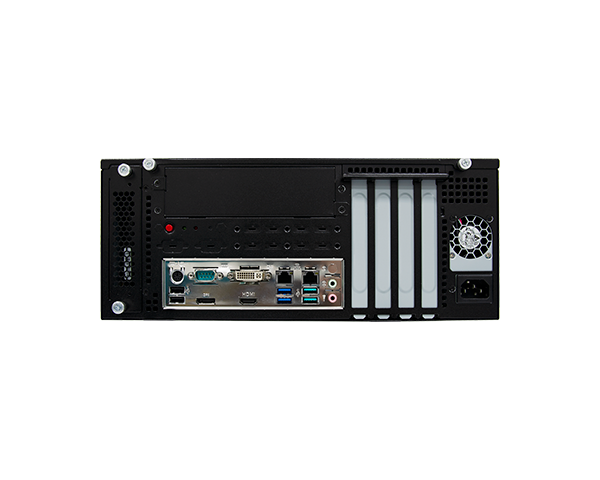

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

    USB

    2 x USB 3.1 Gen 2
    2 x USB 3.1 Gen 1
    2 x USB 2.0

    PS/2

    1 x PS/2 (mini-DIN-6)

    显示

    1 x HDMI
    1 x DVI-I (DVI-D signal)
    1 x DP++

    音源

    1 x Line-out
    1 x Mic-in
    1 x Line-in (opt.)

    按键

    1 x Power button
    1 x Reset button

    预断孔

    2 x DB-9 Cutout
    8 x USB 2.0 Cutout

    冷却

    风扇

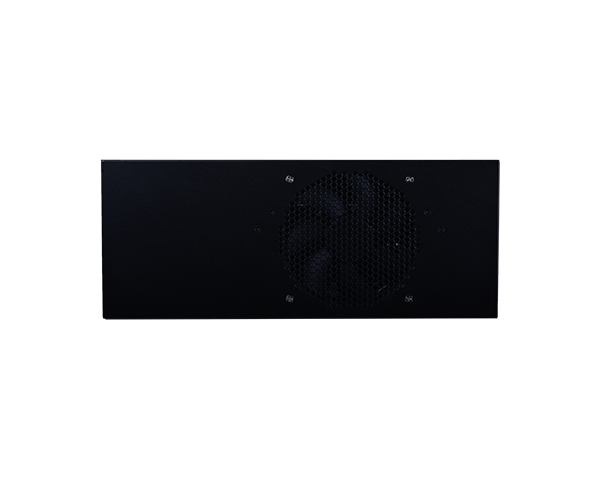

    1 x 12cm system fan

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Infineon TPM1.2/2.0 (optional)

    电源

    供应

    Flex ATX 150W/250W/350W/400W/500W (250W Default)

    支持操作系统

    微软

    Windows 10

    Linux

    Linux

    环境指标

    运作温度

    0 to 45°C

    储存温度

    0 to 60°C

    相对湿度

    5 to 95% RH (non-condensing)

    机械结构

    结构

    Sheet Metal

    安装方式

    Wall mount

    尺寸 (宽 x 高 x 深)

    349 x 140.2 x 290.9mm (13.74" x 5.52" x 11.45")

    重量

    7.7kg

    颜色

    no coating or black coating

    安规认证

    冲击测试

    Operating: 3G Non-operating: 5G

    抗振动测试

    Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G

    包装落摔测试

    ISTA Project 1A

    认证

    CE, FCC Class A, RoHS
