工业机箱-IPC-2010
★2 DDR4 3200MHz SODIMM up to 64GB
★Dual Displays: 1 DP++, 1 DP++/HDMI
★1 PCIe x16, 3 M.2 expansions
★Front 1.3" Touch LCD showing Local System Information (opt.)
★2 NVME SSD for RAID0/1 + 1x 2.5" SATA storage (opt. 2nd NVME SSD)
★Operating temperature : -5 to 45°C
-
系统
处理器
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W芯片组
Intel® R680E/Q670E/H610E Chipset
内存
Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 3200 MHz
R680E ECC SupportBIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 700 series
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x DP++
1 x DP++/HDMI
1 x 1.3" Front Capacitive Touch LCD (opt.)储存
外插/内插
1x 2.5" SATA bay
R680E
1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
RAID 0/1
扩充
界面
1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key (USB/PCIe x1)
R680E
1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I226V PCIe(10/100/1000/2.5G speeds)
R680E
1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)
1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)
LED
指示灯
1 x Power LED

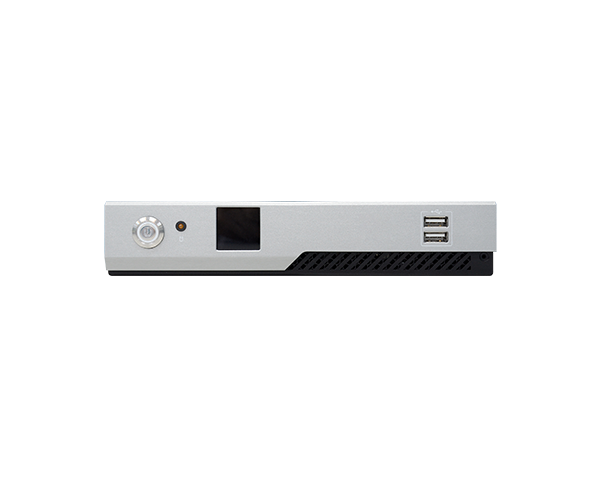

1 x HDD LED前板输入/输出
USB
2 x USB 2.0
按键
1 x Power Button

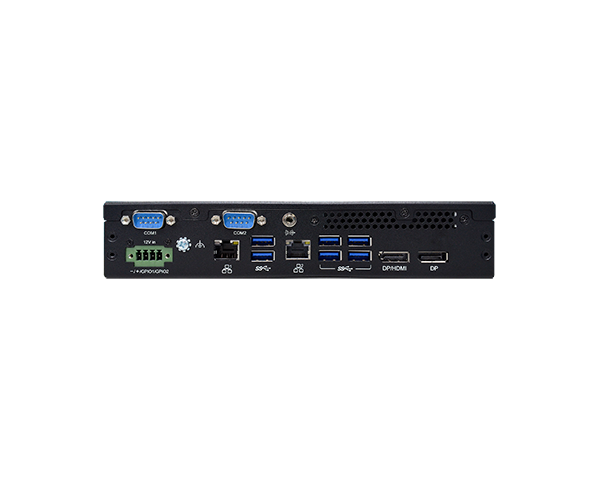

背板输入/输出
以太网络
1 x 2.5GbE (RJ-45)
1 x GbE (RJ-45) (2x by Opt.)串口
2 x COM
USB
R680E
4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)
显示
1 x DP++
1 x DP++/HDMI音源
1 x line-out
接地
1 x Grounding Post
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM2.0
电源
类型
Single 12V +/-10% DC
端口
Terminal Block
耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT
Linux
Linux
环境指标
温度
Operating: -5°C ~ 45°C
Storage: -40°C ~ 85°C湿度
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RHMTBF
TBD
机械结构
规范
Metal chassis + Aluminum front bezel
安装方式
Wall mount
Rackmount尺寸 (宽 x 高 x 深)
220 x 43 x 197.2mm
重量
2.55kg
安规认证
冲击测试
Operating: 3G Non-operating: 5G
抗振动测试
Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
包装落摔测试
ISTA Project 1A
认证
CE, FCC class A, RoHS, UKCA
-
-
