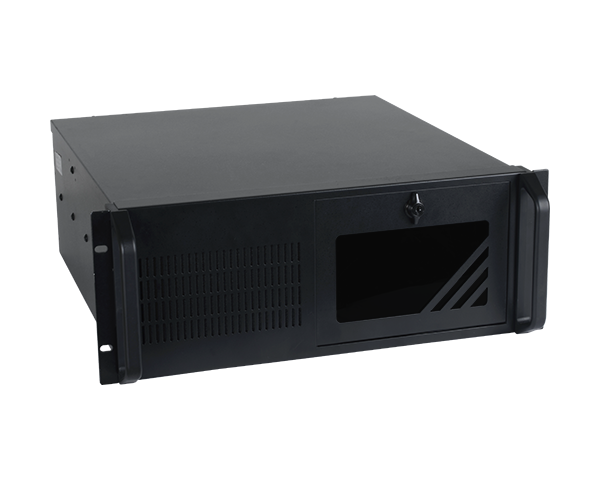

工业机箱-IPC-6015
★高达1x 3.5"/2.5" SATA 磁盘架 及 3x 光驱
★前面板系统风扇及USB接口
★支持 7 个扩充插槽: 2 PCIe x16, 2 PCIe x4, 3 PCI
★为工业服务器应用所打造
★15年CPU长期支持至Q4' 30 (Based on Intel IOTG Roadmap)
-
系统
处理器
LGA 1151 Socket
6th Generation Intel® Core™ Processors
Intel® Core™ i7-6700 Processor, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i7-6700TE Processor, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500 Processor, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Core™ i5-6500TE Processor, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100 Processor, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® Core™ i3-6100TE Processor, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® Processor G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® Processor G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W芯片组
Intel® Q170 Chipset
内存
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 1866/2133MHzBIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9显示器
1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz三重显示
VGA + DVI-I (DVI-D signal) + HDMI
储存
外插/内插
3 x 5.25" Optical Drive Bays (Front Accessible)
1 x 3.5"/2.5" SATA 3.0 Drive Bay (Front Accessible)扩充
界面
2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
2 x PCIe x4 (Gen 3)
3 x PCI音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)LED
指示灯
1 x Power LED
1 x HDD LED前板输入/输出
USB
2 x USB 2.0 (available upon request)
按键
1 x Power Switch
1 x Reset Switch前门
1 x Drive Panel Door With Keylock

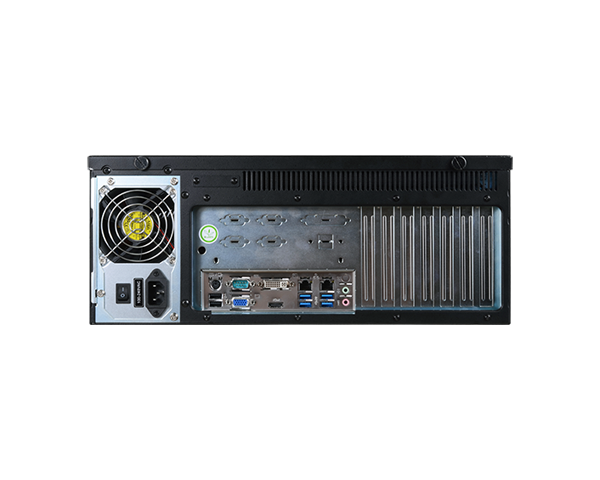

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0PS/2
1 x PS/2 (mini-DIN-6)
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI音源
1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in按键
1 x ATX Switch
冷却
风扇
2 x 92cm System Fan with Quick Access Filter
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
供应
ATX PS/2 Power Supply 500W
AC Power Input : 90~264V支持操作系统
支持操作系统
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux环境指标
运作温度
0 to 45°C
储存温度
-20 to 60°C
相对湿度
0 to 90% RH (non-condensing)
机械结构
结构
SECC
安装方式
Flexible Hold Down Bar
尺寸 (宽 x 高 x 深)
483mm x 177mm x 451mm
重量
21.7kg
安规认证
冲击测试
Operating: 3G
Non-operating: 5G抗振动测试
Operating: Random 5~500Hz 1G
Non-operating: Sweep Sine 10~500Hz 1.5G包装落摔测试
ISTA Project 1A
认证
CE, FCC, RoHS
-
-
