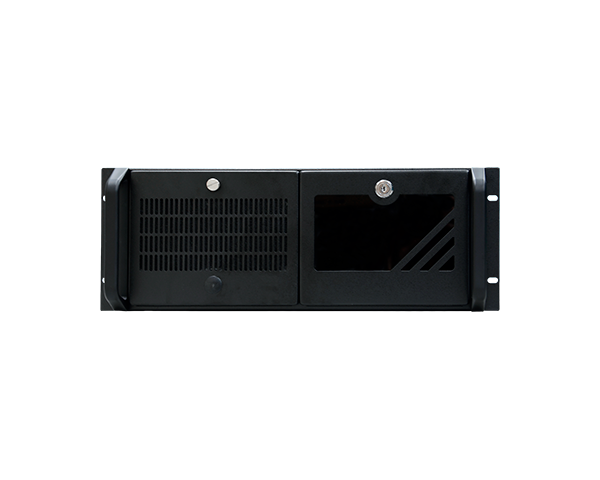

工业机箱-IPC-6013
★Mass Memory Capacity : 12 DDR4 RDIMM up to 384GB
★Front-accessible system fan and USB interfaces
★Supports 7 expansion slots : 4 PCIe x16, 1 x PCIe x8, 1 x PCI, 1 M.2 M Key
★Rich I/O : 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1
★15-Year CPU Life Cycle Support Until Q3' 33 (Based on Intel IOTG Roadmap)
-
系统
处理器
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209T (8 Cores, 11M Cache, up to 3.2 GHz); 70W芯片组
Intel® C622 Chipset
内存
12 x 288-pin RDIMM up to 384GB
Single Channel DDR4 up to 2133/2400/2666/2933 MHZ
(Support Intel DC Persistent Memory)BIOS
Insyde
显示
控制器
SEM2500
特性
IPMI
显示器
1 x VGA (opt.)
储存
外插
External 2x 5.25” (option change 1x 2.5” by covert bracket)
External 1x 3.5” (option change 1x 2.5” by covert bracket)内插
1 M.2 M Key2280 (PCIe Gen3 x4 NVMe/SATA)
界面
4 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
1 x PCI
1 x BMC Module slot for SEM2500/2510 (IPMI)
1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module音讯
音讯编译码器
ALC888
界面
Onboard Front Audio Pin Header
以太网路
控制器
2 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® x557-AT2 (10GbE)前板输入/输出
按键
1 x Power Button
1 x Reset ButtonLED指示灯
1 x Power LED

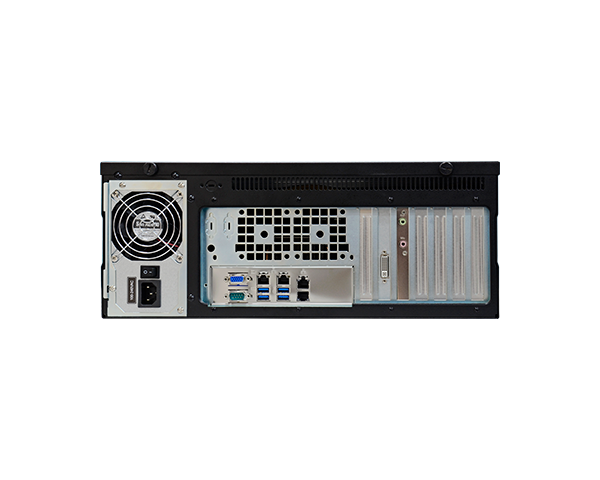

1 x HDD LED背板输入/输出
以太网络
2 x GbE (RJ-45)
2 x 10 GbE x557-AT2
IPMI 2.0: 1 share w/ i210AT (opt.)串口
1 x RS-232 (DB-9)
USB
4 x USB 3.1 Gen1
2 x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)显示
1 x VGA (opt.)
音源
Onboard Front Audio Pin Header
预断孔
DB-9 x 2
按键
按键
1 x Power Button
1 x Reset Button冷却
风扇
2 x (90mm = 51.0CFM) Fans
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0 (opt.)
电源
供应
ATX PS/2 Power Supply 650W
支持操作系统
微软
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016Linux
Linux
环境指标
运作温度
0 to 40°C
储存温度
-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery相对湿度
5 to 90% RH (non-condensing)
机械结构
尺寸
483 x 177 x 510 mm
结构
Heavy Industrial Steel
安装方式
Flexible hold down bar
重量
17.9kg
颜色
Black
安规认证
冲击测试
Operating: 3G
Non-operating: 5G抗振动测试
Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G包装落摔测试
ISTA Project 1A
认证
CE, FCC class A
-
-
