工业机箱-IPC-6011
★3 PCIex16 and 3 PCIe x8 slots support FH/10.5” length cards

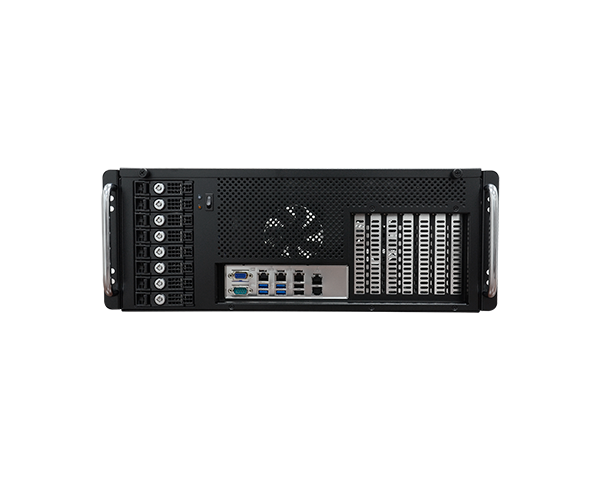

★Up to 8 hot-swappable design available for 2.5” drive bays
★Rich I/O with 2 GbE, 2 10GbE, 1 RS-232, 4 USB 3.1, 2 USB 2.0
★IPMI OOB Remote Management
★Single Display: VGA resolution up to 1920x1200 @ 60Hz
★8 288-pin ECC-RDIMM up to 512GB
-
系统
处理器
3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+)
Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz )
Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz )
Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz )
Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )芯片组
Intel® C621A Chipset
内存
8 x 288-pin ECC-RDIMM up to 512GB
Single Channel DDR4 up to 3200 MHZBIOS
Insyde SPI 128Mbit
显示
控制器
BMC AST2500
显示器
1 x VGA (opt.)
resolution up to 1920x1200 @ 60Hz储存
外插
6 SATA 3.0 (RAID 0/1/5/10)
内插
1 M.2 2280 M key
扩充
界面
3 x PCIe x16 Gen4
3 x PCIe x8 Gen4音讯
音讯编译码器
ALC888S
界面
Onboard Front Audio Pin Header
以太网路
控制器
2 Intel® I210
2 Intel® X550-AT2
1 IPMI: RTL8211F前板输入/输出
以太网络
2 x GbE
2 x 10 GbE
1 x Dedicated IPMI LAN (Opt.)串口
1 x RS-232 (DB-9)
USB
4 x USB 3.1
2 x USB 2.0显示
1 x VGA (opt.)
音源
Onboard Front Audio Pin Header
LED指示灯
1 x Power LED
1 x HDD LED按键
按键
1 x Power Button
冷却
风扇

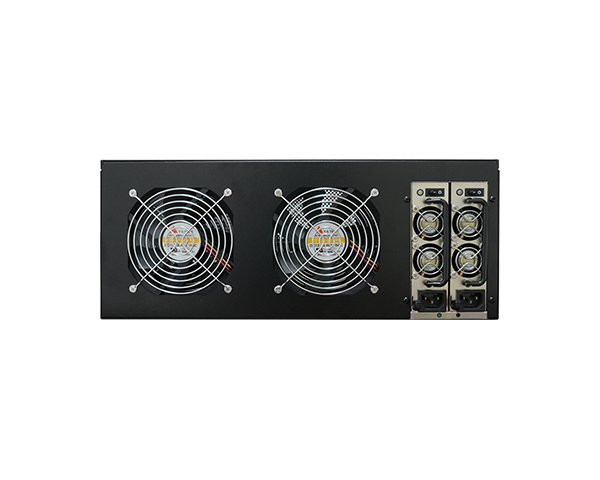

12 CM Fan x 2
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Infineon TPM2.0 (opt.)
电源
供应

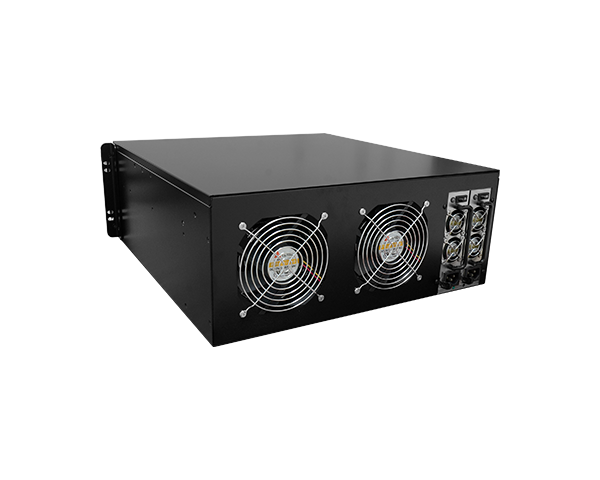

ATX PS/2 or Mini Redundant PSU
支持操作系统
微软
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019Linux
Ubuntu 20.04
环境指标
运作温度
0 to 40°C
储存温度
-30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
相对湿度
5 to 90% RH (non-condensing)
机械结构
结构
Heavy Industrial Steel
安装方式
Flexible hold down bar
尺寸 (宽 x 高 x 深)
481.6 x 175.6 x 470.8mm
重量
TBD
颜色
Black
安规认证
冲击测试
Operating: 3G
Non-operating: 5G抗振动测试
Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G包装落摔测试
ISTA Project 1A
认证
CE, FCC class A
-
-
