AI边缘计算平台-AIPC-2025
★91.4mm (W) x 70mm (H) x 76.6mm (D)

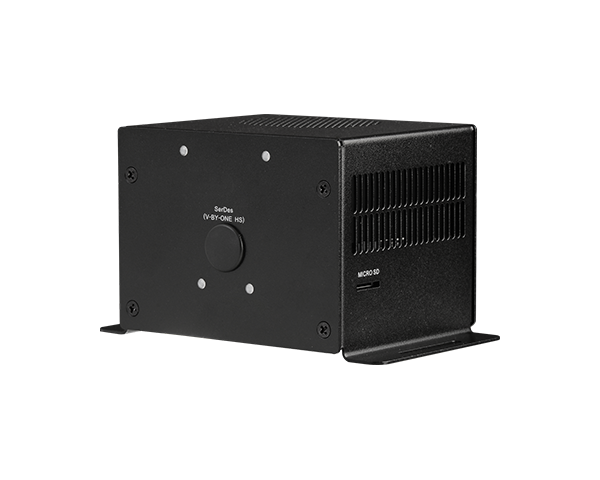

★Fanless chassis technology
★20 pins with 1 x UART, 2 x I2C, 9 x GPIOs

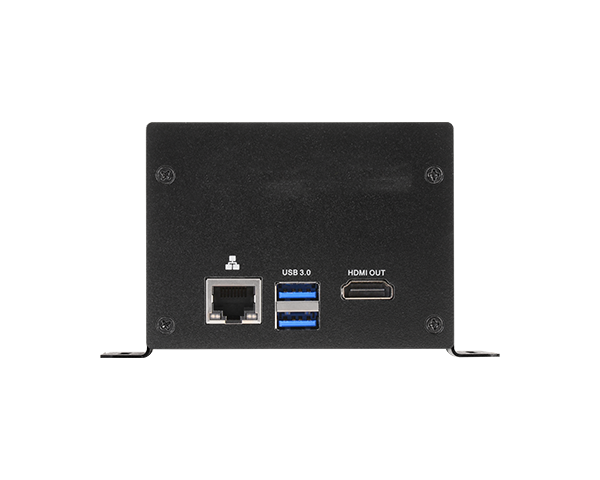

★1 x HDMI 2.0a/b Type-A supports 4K@60Hz
-
系统
运算平台
NVIDIA® Jetson Xavier™ NX module
储存
外插
1 x micro-SD card slot
以太网路
界面
1 x GbE RJ-45
LED
指示灯
1 x Power LED
1 x Recovery LED
(RGB tri-color LED)输入/输出
USB
1 x USB 2.0 Micro-B for Recovery
2 x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
1 x mPCIe (Host Interface: USB 2.0)屏幕
1 x HDMI 2.0a/b Type-A
(HDMI: resolution up to 3840 x 2160 @ 60Hz)GPIO
20 pins:
1 x 3.3V UART
2 x I2C
9 x GPIOs按键

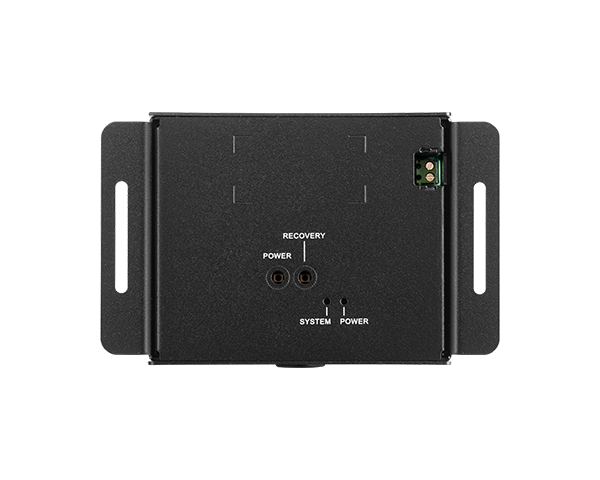

1 x Power Button
1 x Recovery Button以太网络
1 x GbE RJ-45
内部输入/输出
其他 输入/输出
(Internal) MIPI Camera Inputs
2 x 2 Lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson
Xavier™ NX Developer Kit)
1 x 4 Lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector冷却
风扇
Heat sink with fan
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
12V/5A
(9V~19V is recommended)RTC 电池
Support RTC Battery and Battery Life Monitoring by MCU
环境指标
运作温度
0°C ~ 60°C
储存温度
-40°C ~ 85°C
相对湿度
Relative Humidity 40 °C @ 95%, Non-Condensing
机械结构
尺寸
91.4mm(W) x 70mm(H) x 76.6mm(D)
(3.60” x 2.76” x 3.02”)重量
480g
安规认证
认证
CE, FCC
-
-
