AI边缘计算平台-AIPC-2024
★Reliable fan-less Edge AI computer on 9th Generation Intel® Core™ Processors
★4 x RJ45 802.af PoE ports at 15W per port
★Up to 150W MXM GPU supported for AI acceleration
★Extended operating temperature up to -25°C to 70°C
★5G cellular and 4x swappable SSDs supported
-
系统
处理器
8th/9th Generation Intel® Core™ Processors, LGA 1151
Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W
Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W
Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W
Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W
(Other CPU support upon request)芯片组
Intel® Q370 Chipset
内存
Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
显示器
1 x VGA (display out by DB-15 connector)
1 x HDMI (with screw lock)
1 x DP++ (Standard Display Port Connector DIP type with screw lock)
Support NIVIDIA Optimus technology
VGA: resolution up to 1920x1200@60Hz
HDMI: resolution up to 4096x2160@24Hz
DP++: resolution up to 4096x2304@60HzAI 加速器
界面
MXM Type A, B, C on x16 PCIe 3.0
控制器
Nvidia Quadro embedded series
储存
外插
4 x Swappable 2.5” storage bay with lock.
Supports 7mm SSD devices内插
1 x M.2 2280 M key supports SATA SSD
扩充
界面
1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1 & USB 2.0 signal with SIM of each (All SIM Cards can be external accessible with cover against vibration)
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM slot (SIM card can be external accessible with cover)
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)音讯
界面
1 x Mic-in
1 x Line-out以太网路
控制器
5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)界面

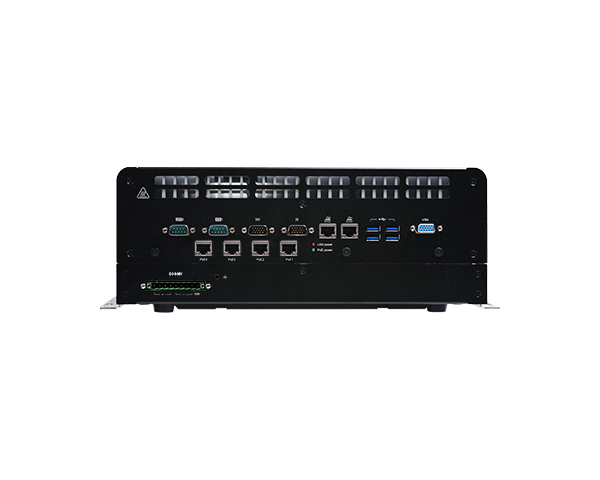

2 x RJ45 GbE
4 x 802.3af 15W PoE portsLED
指示灯
1 x Power LED (green)
1 x Storage LED (red)
1 x LED前板输入/输出
PoE
4 x PoE 802.3af (15.4w) ports at RJ45 connectors (PSE side)
NOT support Wake on Lan以太网络
2 x GbE (RJ-45) support Wake on Lan
串口
2 x High speed full RS-232/422/485 (DB-9)
2 x RS-232/422/485 (onboard)USB
4 x USB 3.0 (type A)
显示
1 x VGA display out by DB-15 connector
DIO
1 x 8-bit isolated DI port by DB-9 connector
1 x 8-bit isolated DO port by DB-9 connector
2KV isolationPower-in
1 x 9-pin 5.0mm terminal block
背板输入/输出

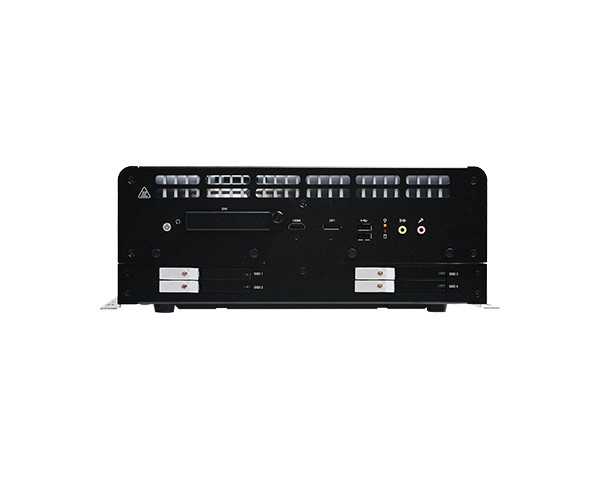

USB
2 x USB 2.0 (type A)
显示
1 x HDMI
1 x DP++音源
1 x Mic-in
1 x Line-out
by 3.5mm 3P phone Jack按键
1 x Power button
1 x Reset button天线
7 x SMA type antenna holes for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
SIM
3 x SIM sockets (external accessible with cover)
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
+12VDC
端口
9-pin 5.0mm terminal block
支持操作系统
微软
Windows 10 IoT Enterprise 64 Bit
Linux
Ubuntu 18.04
环境指标
运作温度
-20°C to 70°C with GTX1060, RTX2060
-20°C to 55°C with RTX2070
CPU and GPU may be throttling at high temperature
Active fan for supporting higher temperature or higher power MXM is supported per request储存温度
-40 to 85°C
相对湿度
10% to 90% (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall mount
尺寸 (宽 x 高 x 深)
340.5 x 132 x 223mm (3U height, excluding rubber foot)
重量
9.85 kg
安规认证
冲击测试
· IEC 60068-2-27
3 g, 11 ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)抗振动测试
· IEC 60068-2-64
Frequency : 5 Hz to 500 Hz
Acceleration : 1 g rms
Test Axis : X, Y, Z axis
Test Time : 30 mins (Each axis), total 90 mins
· MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI认证
CE, FCC Class A, RoHS, UKCA
IP Rating
IP40
-
-
